Ignition Switch: Service and Repair

IGNITION SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the meter hood. Meter Hood Removal/Installation

4. Remove the column cover. Service and Repair

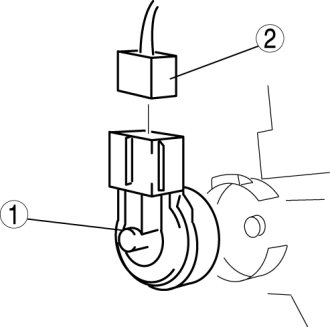

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.

Ignition Switch Connector Removal Note

1. Rotate the lever in the direction of the arrow and remove the connector.






Ignition Switch Connector Installation Note

1. After connecting the connector, rotate the lever in the direction of the arrow to install the connector.
