Turn Signal Switch: Testing and Inspection




LIGHT SWITCH INSPECTION

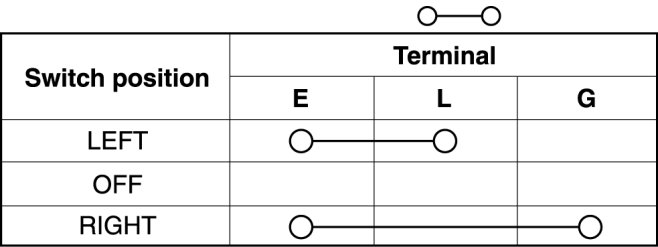

1. Verify that the continuity between the light switch terminals is as indicated in the table.
Light Switch

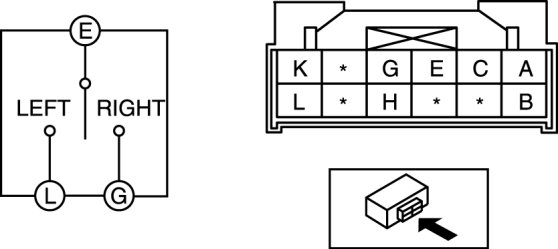

Turn Switch
