Hazard Warning Switch: Service and Repair

HAZARD WARNING SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the side wall. Side Wall Removal/Installation

3. Remove the front console. Front Console Removal/Installation

4. Remove the center panel module. Center Panel Module Removal/Installation

5. Remove the climate control unit. (with car-navigation unit) Climate Control Unit Removal/Installation [Full-Auto Air Conditioner]

6. Remove the car-navigation unit. (vehicles with car-navigation unit) Service and Repair

7. Remove the dashboard center panel. Dashboard Center Panel Removal/Installation

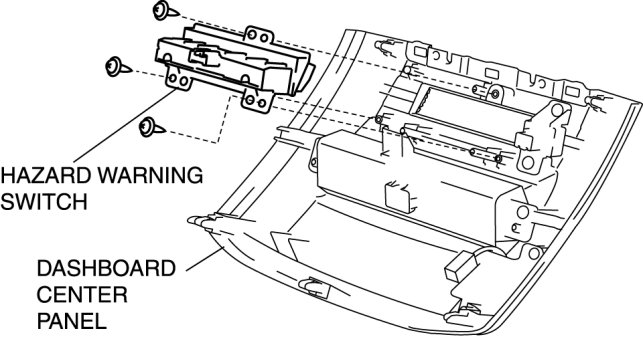

8. Remove the hazard warning switch.






9. Install in the reverse order of removal.
