Backup Lamp Switch: Service and Repair

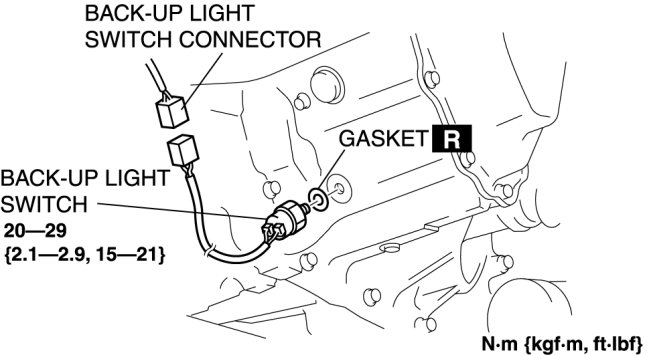

BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the under cover.

4. Drain the oil.(See Transaxle Oil Replacement [G35M-R].)

5. Disconnect the back-up light switch connector and remove the back-up light switch.






6. Install in the reverse order of removal.

7. Refill the oil.(See Transaxle Oil Replacement [G35M-R].)
