REAR FAN SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER]

1. Remove the rear fan switch. Service and Repair

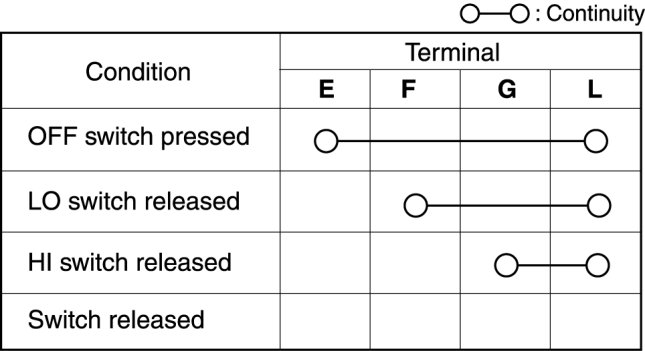

2. Verify that the continuity between the rear fan switch terminals is as indicated in the table.






- If not as indicated in the table, replace the rear fan switch.

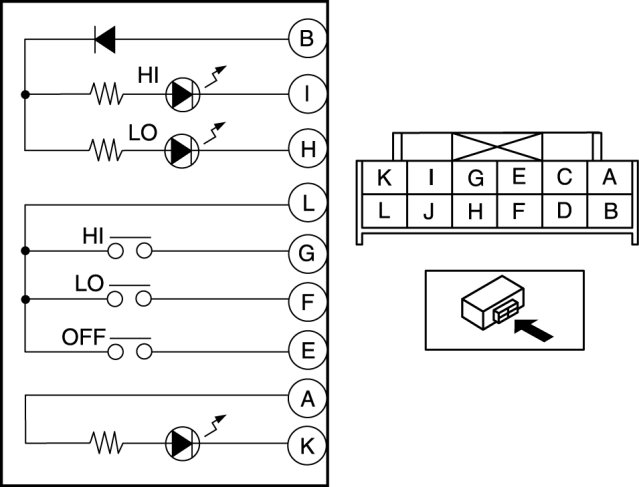

3. Apply battery voltage to the rear fan switch terminal B, and connect terminal H to ground.

4. Apply battery voltage to the rear fan switch terminal B, and connect terminal I to ground.

5. Apply battery voltage to the rear fan switch terminal A, and connect terminal K to ground.

6. Verify that the LED illuminates.

- If there is any malfunction, replace the rear fan switch.
