Fan Switch Inspection [Manual Air Conditioner]

FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER]

1. Remove the climate control unit.

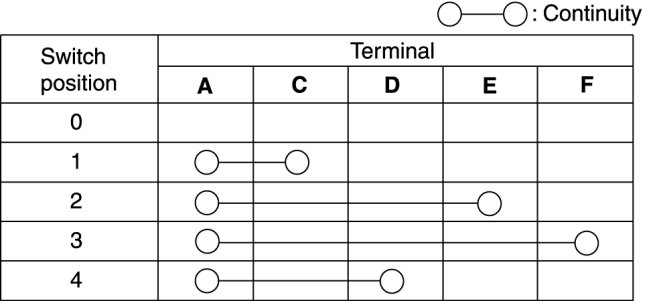

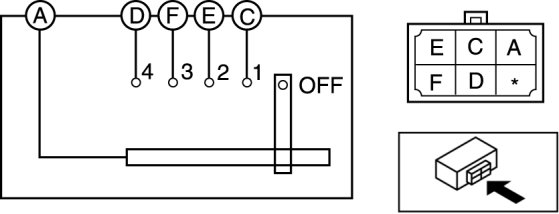

2. Verify that the continuity between the fan switch terminals is as indicated in the table.

- If there is any malfunction, replace the fan switch.
