No.6 Air From Vents Not Cold Enough [Manual Air Conditioner]




NO.6 AIR FROM VENTS NOT COLD ENOUGH [MANUAL AIR CONDITIONER]

Description/Possible Cause:





Diagnostic procedure

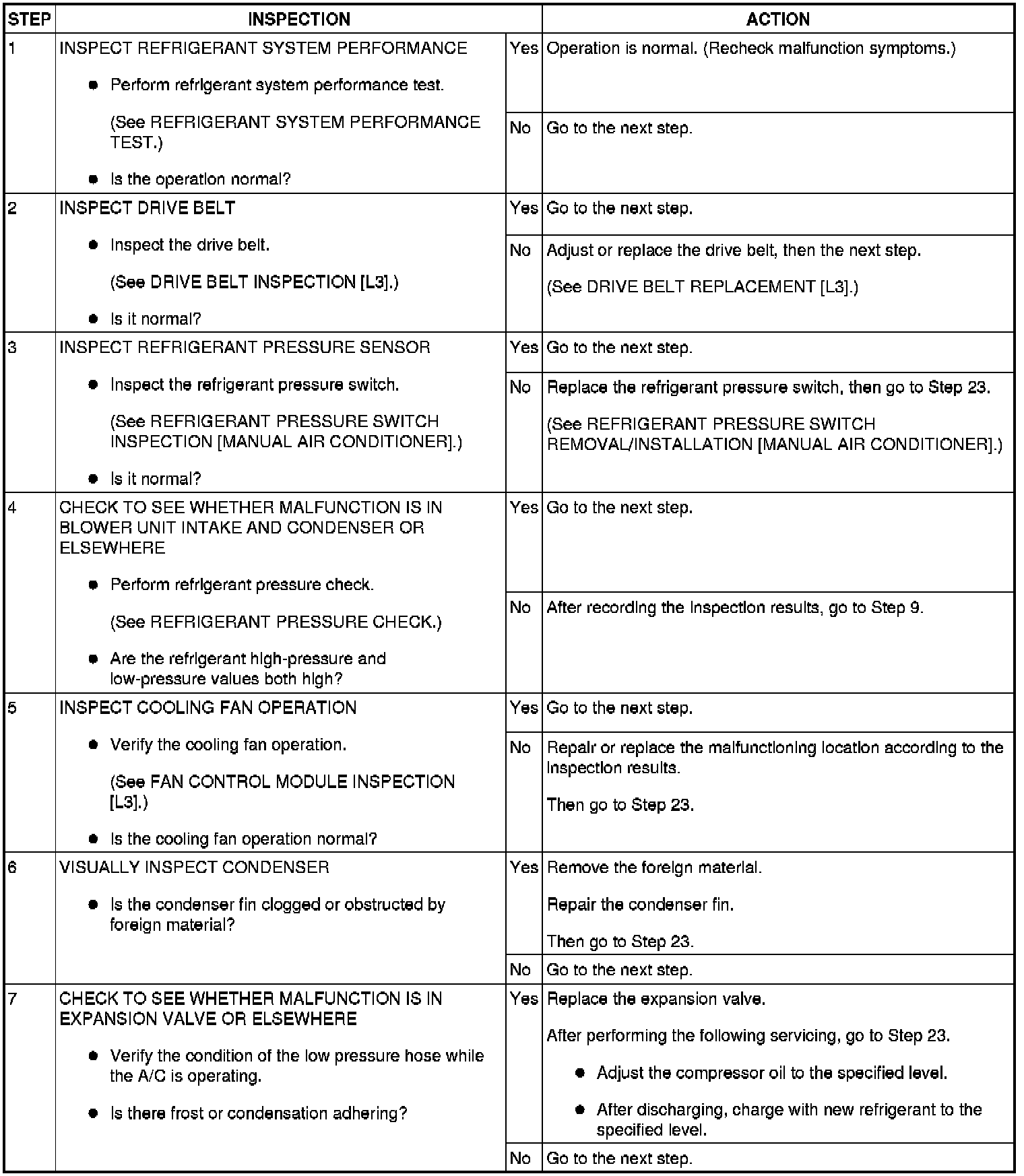

Step 1-Step 7:

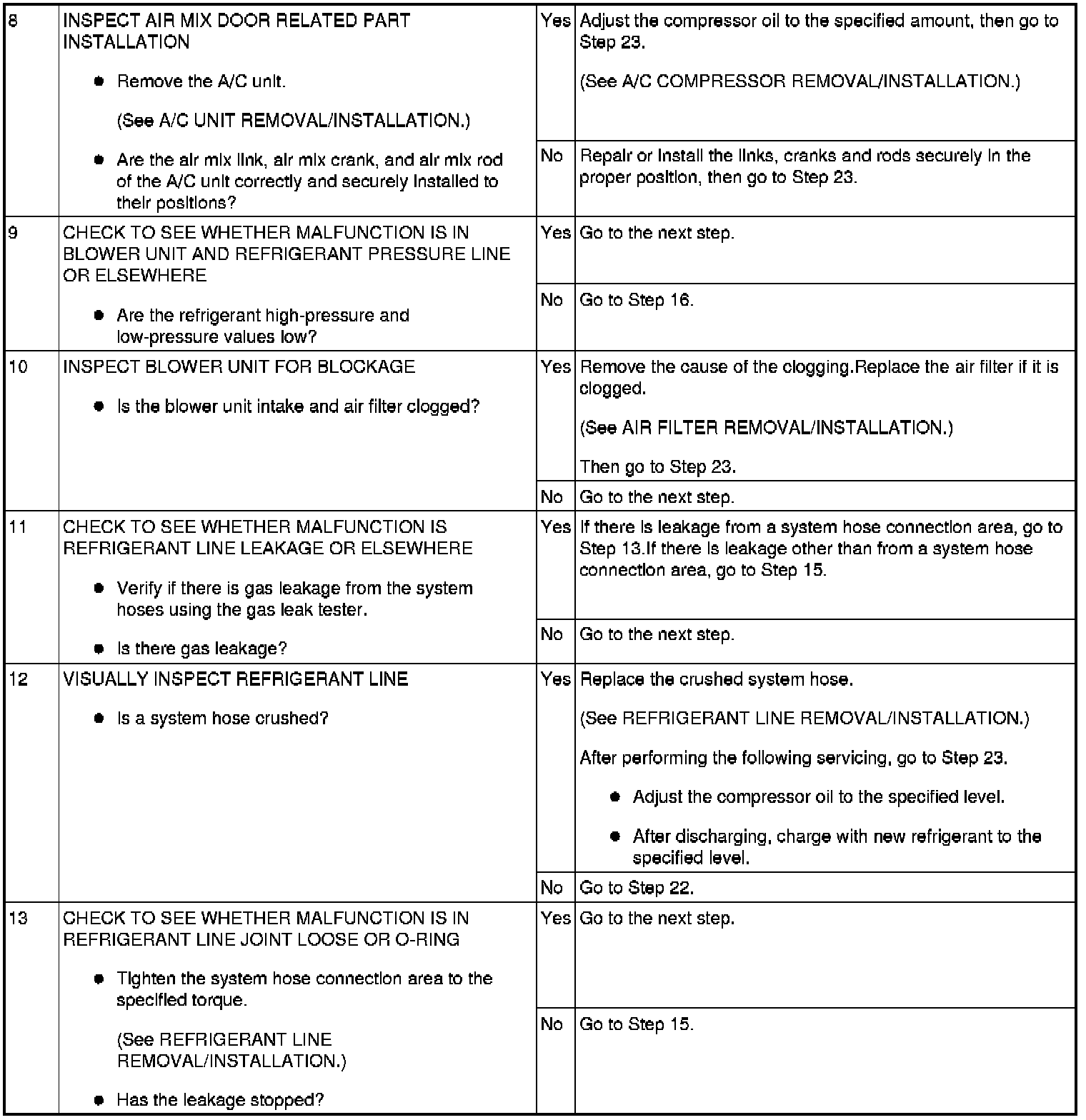

Step 8-Step 13:

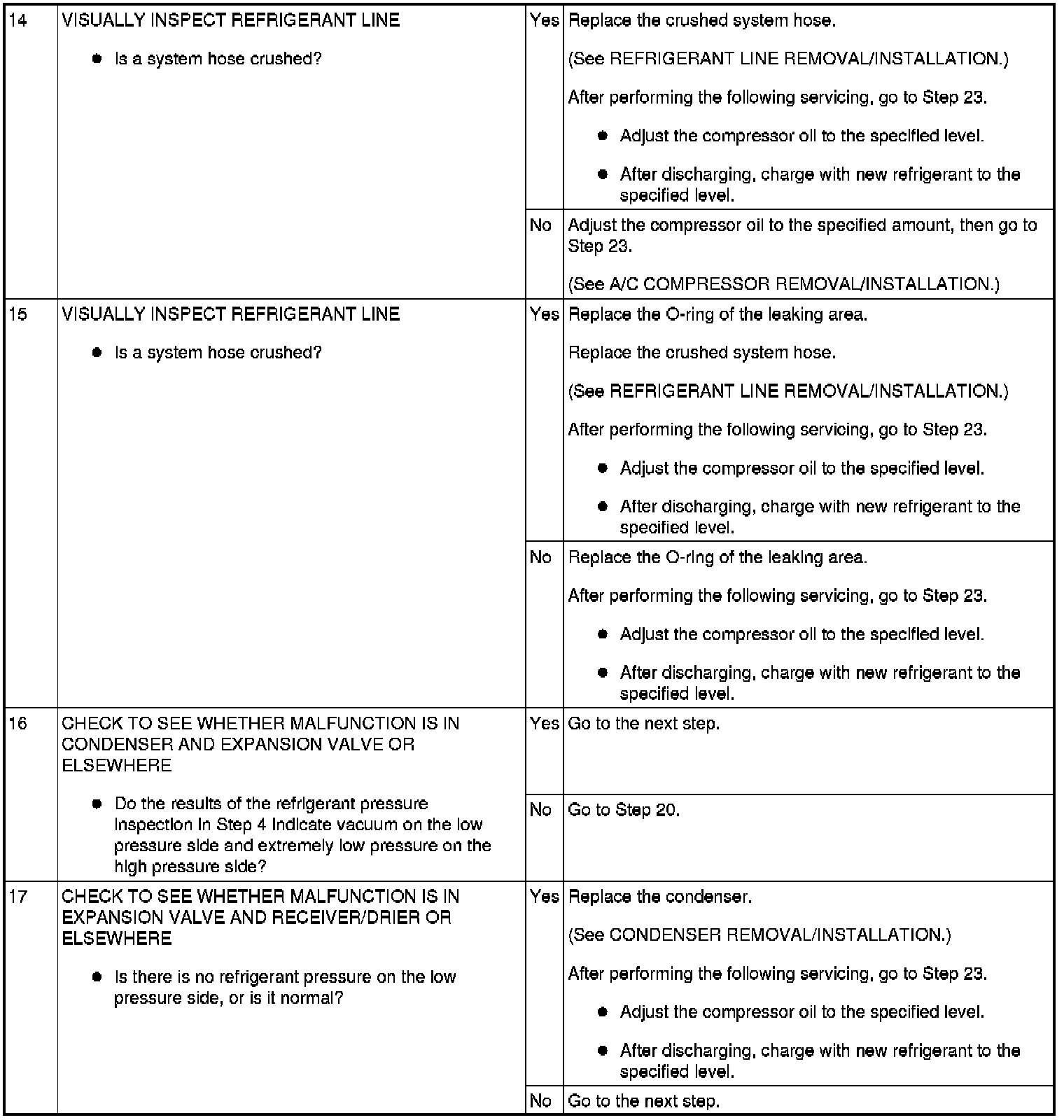

Step 14-Step 17:

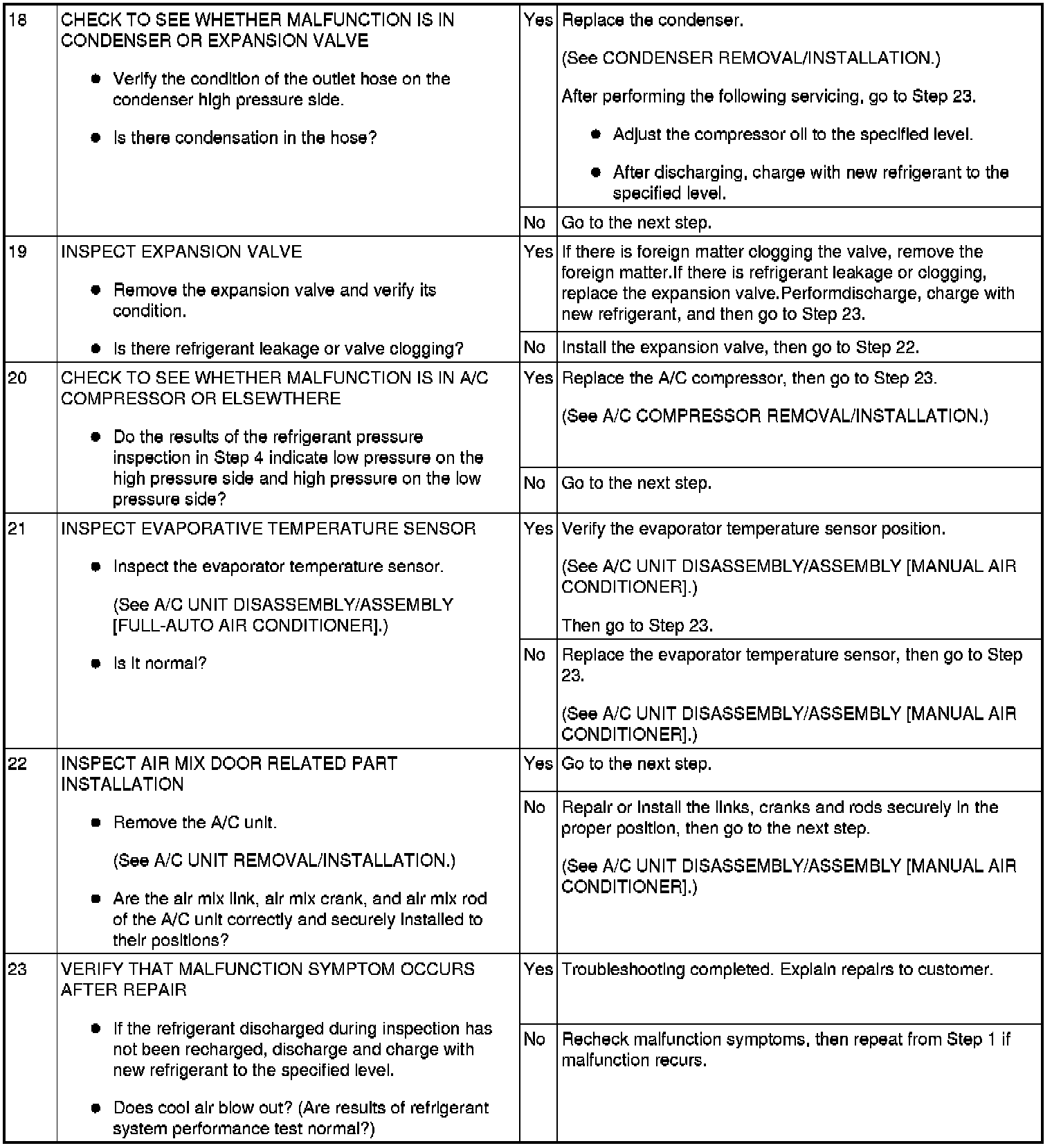

Step 18-Step 23:
