No.2 Amount Of Air Blown From Vents Does Not Change [Manual Air Conditioner]




NO.2 AMOUNT OF AIR BLOWN FROM VENTS DOES NOT CHANGE [MANUAL AIR CONDITIONER]

Description/Possible Cause:

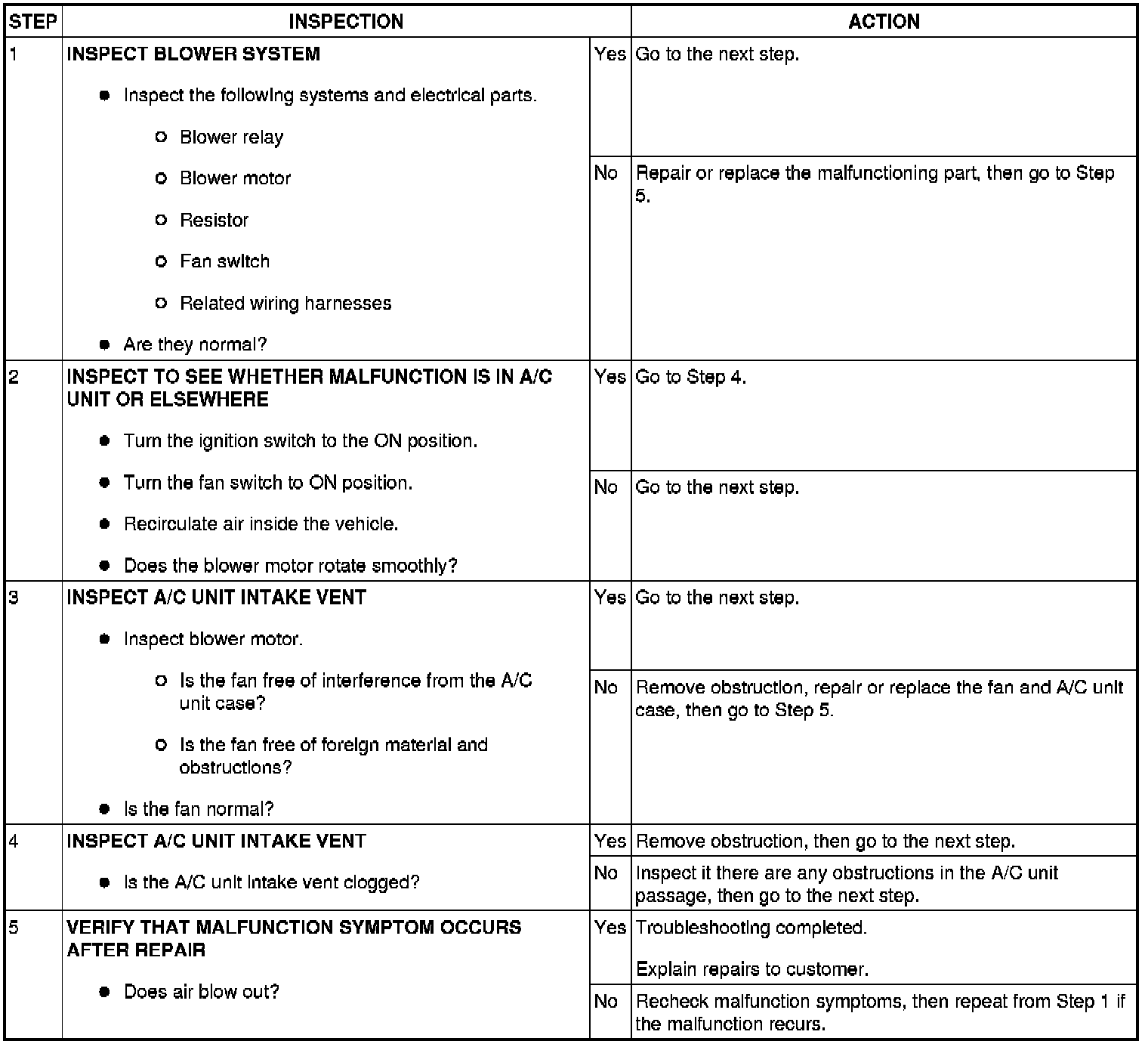

Diagnostic procedure

Step 1-Step 5:
