No.1 Insufficient Air (Or No Air) Blown From Vents [Manual Air Conditioner]




NO.1 INSUFFICIENT AIR (OR NO AIR) BLOWN FROM VENTS [MANUAL AIR CONDITIONER]

Description/Possible Cause:

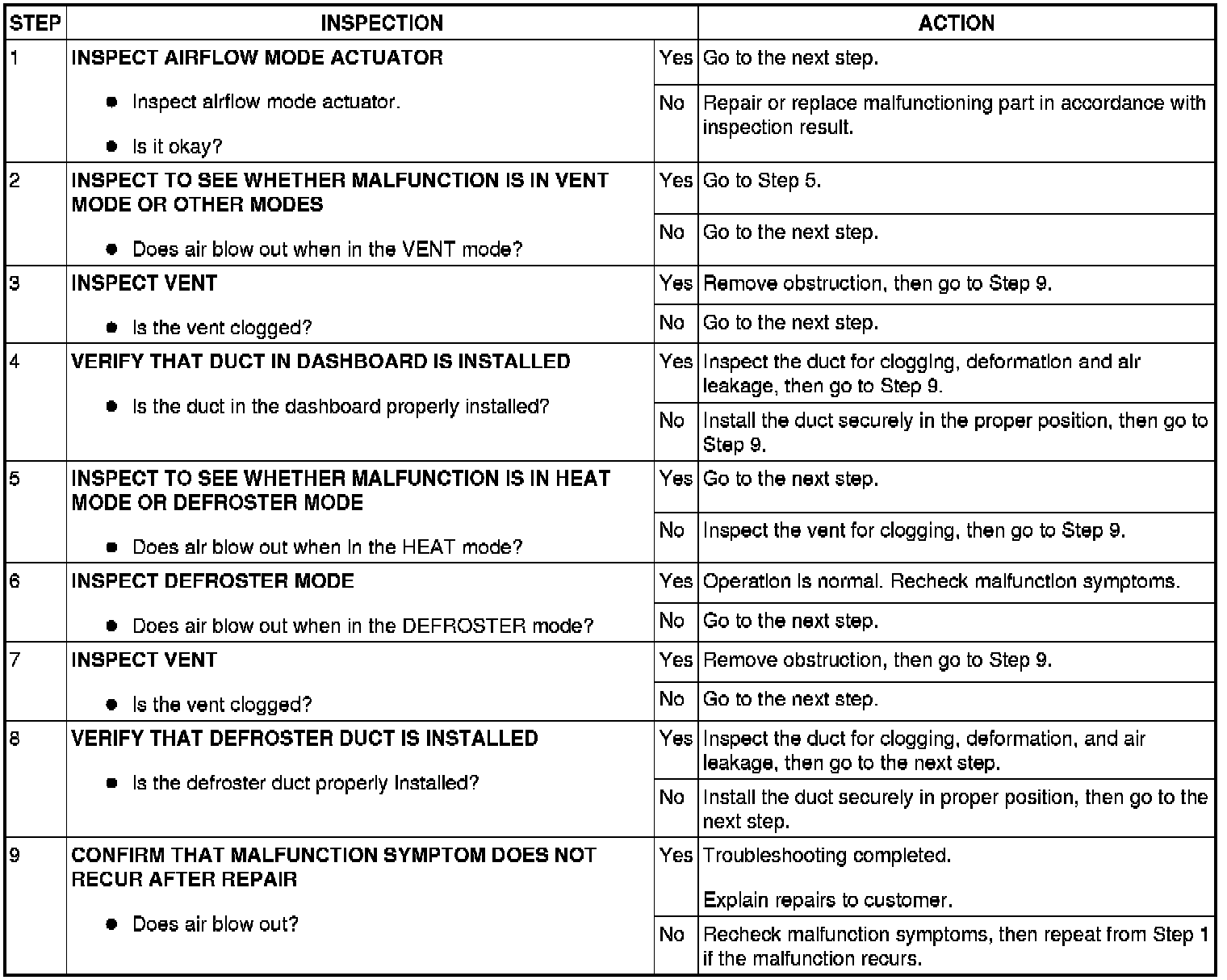

Diagnostic procedure

Step 1-Step 9:
