No.8 No Cool Air [Full-Auto Air Conditioner]

NO.8 NO COOL AIR [FULL-AUTO AIR CONDITIONER]

Description/Possible Cause:

- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
Diagnostic procedure

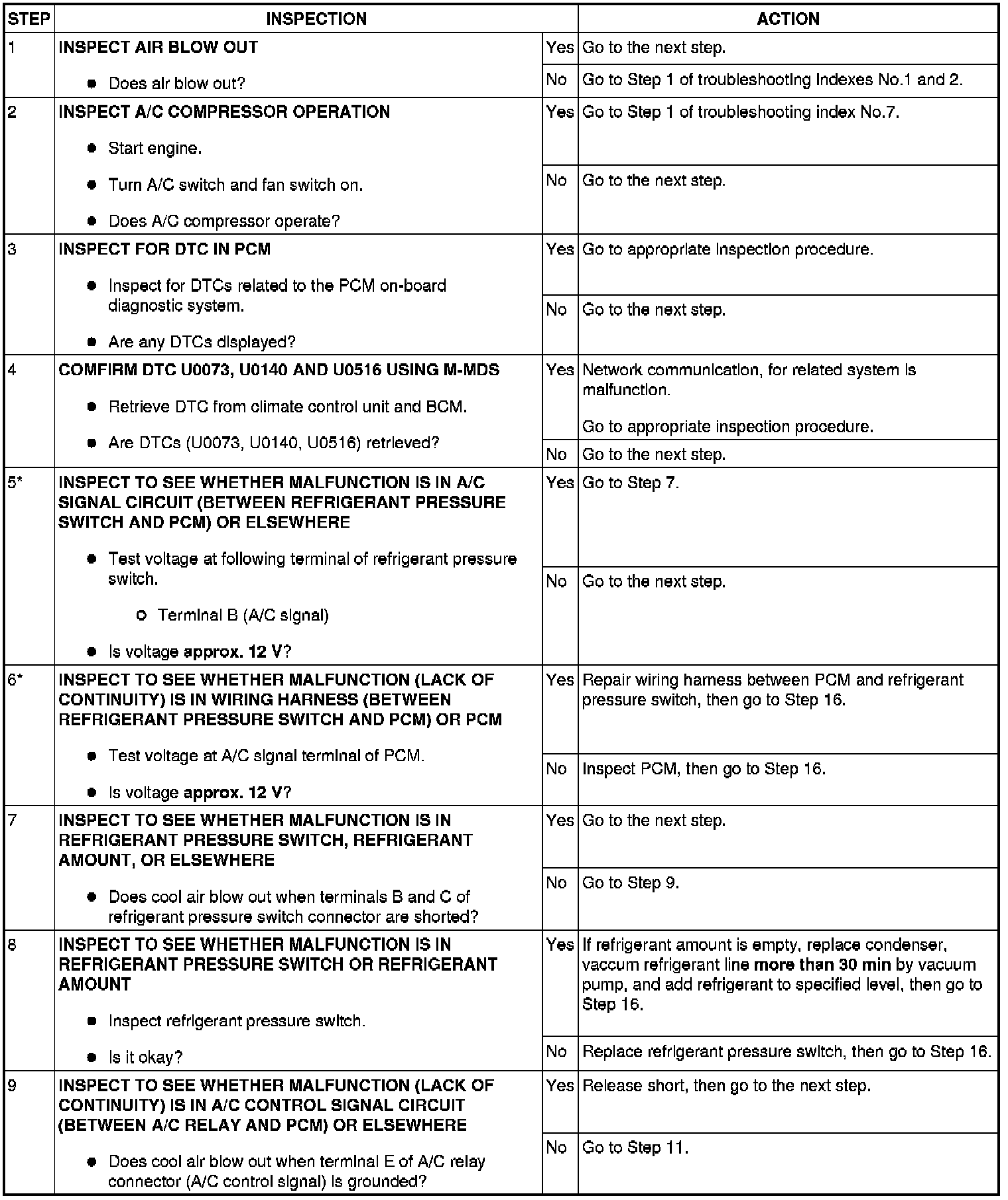

Step 1-Step 9:

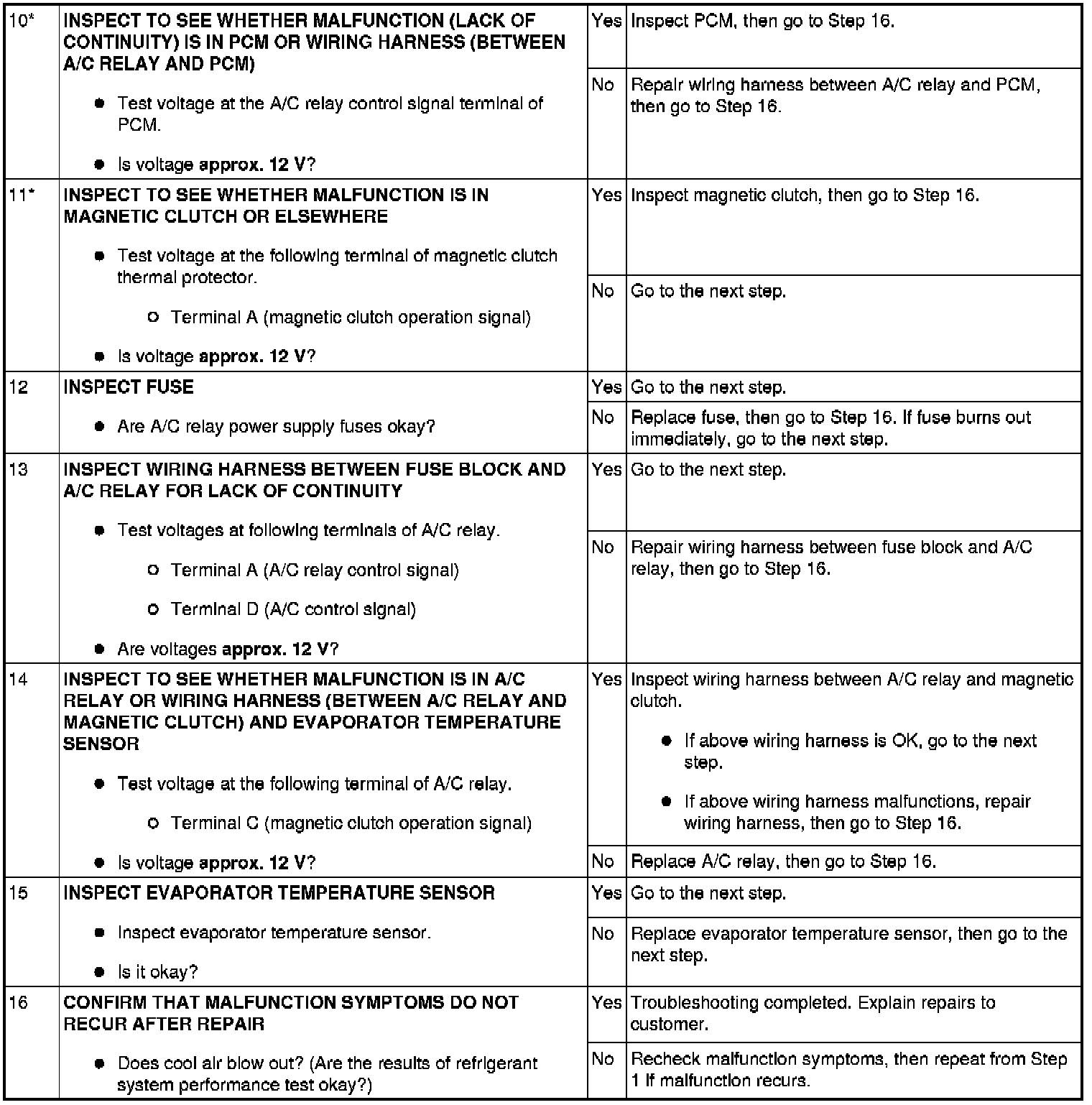

Step 10-Step 16:
