Drive Belt Tensioner: Testing and Inspection




DRIVE BELT AUTO TENSIONER INSPECTION [L3]

1. Remove the drive belt. Service and Repair

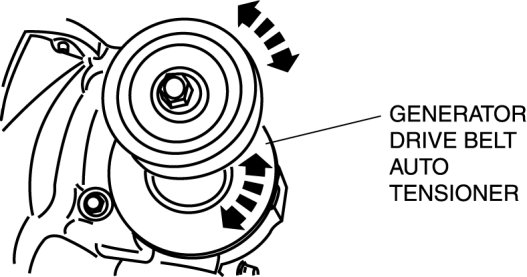

2. Verify that the generator drive belt auto tensioner moves smoothly in the operational direction.






- If it does not move smoothly, replace the generator drive belt auto tensioner. Overhaul

3. Turn the generator drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

- If it does not move smoothly, replace the generator drive belt auto tensioner. Overhaul

4. Install the generator drive belt. Service and Repair
