Rear Header Trim Removal/Installation

REAR HEADER TRIM REMOVAL/INSTALLATION

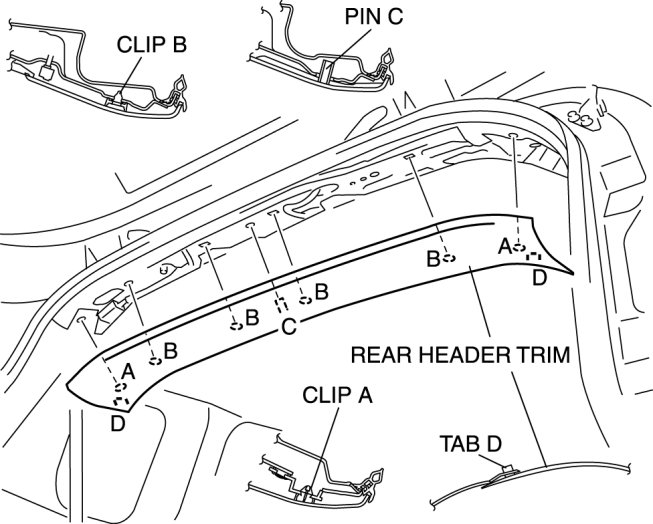

1. Pull the rear header trim and detach clips A and B, pin C, and tabs D.

2. Remove the rear header trim.






3. Install in the reverse order of removal.
