B-Pillar Upper Trim Removal/Installation

B-PILLAR UPPER TRIM REMOVAL/INSTALLATION

1. Remove the following parts:
a. Front seat belt upper anchor installation bolt Front Seat Belt Removal/Installation

b. Front scuff plate inner Front Scuff Plate Removal/Installation

c. Rear scuff plate Rear Scuff Plate Removal/Installation

d. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

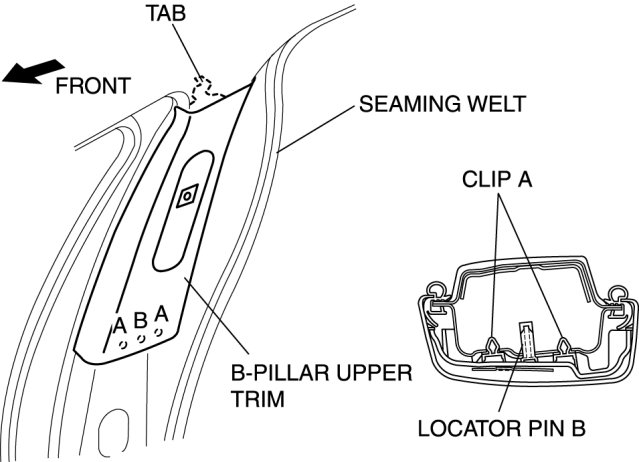

2. Partially peel back the seaming welt.

3. Pull the B-pillar upper trim outward and detach clips A and locator pin B.






4. Detach the tab from the body and remove the B-pillar upper trim.

5. Install in the reverse order of removal.
