B-Pillar Lower Trim Removal/Installation

B-PILLAR LOWER TRIM REMOVAL/INSTALLATION

1. Remove the front scuff plate inner. Front Scuff Plate Removal/Installation

2. Remove the rear scuff plate. Rear Scuff Plate Removal/Installation

3. Partially peel back the seaming welt.

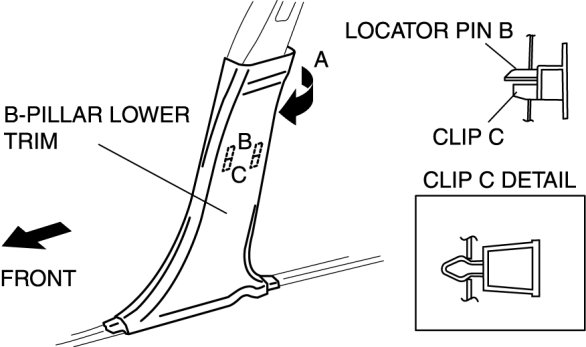

4. Remove one side of the B-pillar lower trim by pulling A part of the B-pillar lower trim.






5. Pull the B-pillar lower trim outward and detach clip C and locator pin B.

6. Remove the B-pillar lower trim.

7. Install in the reverse order of removal.
