No.8 Audio System Illumination Does Not Illuminate At All [Entire Audio System]




NO.8 AUDIO SYSTEM ILLUMINATION DOES NOT ILLUMINATE AT ALL [ENTIRE AUDIO SYSTEM]

Troubleshooting Hints:





Diagnostic procedure

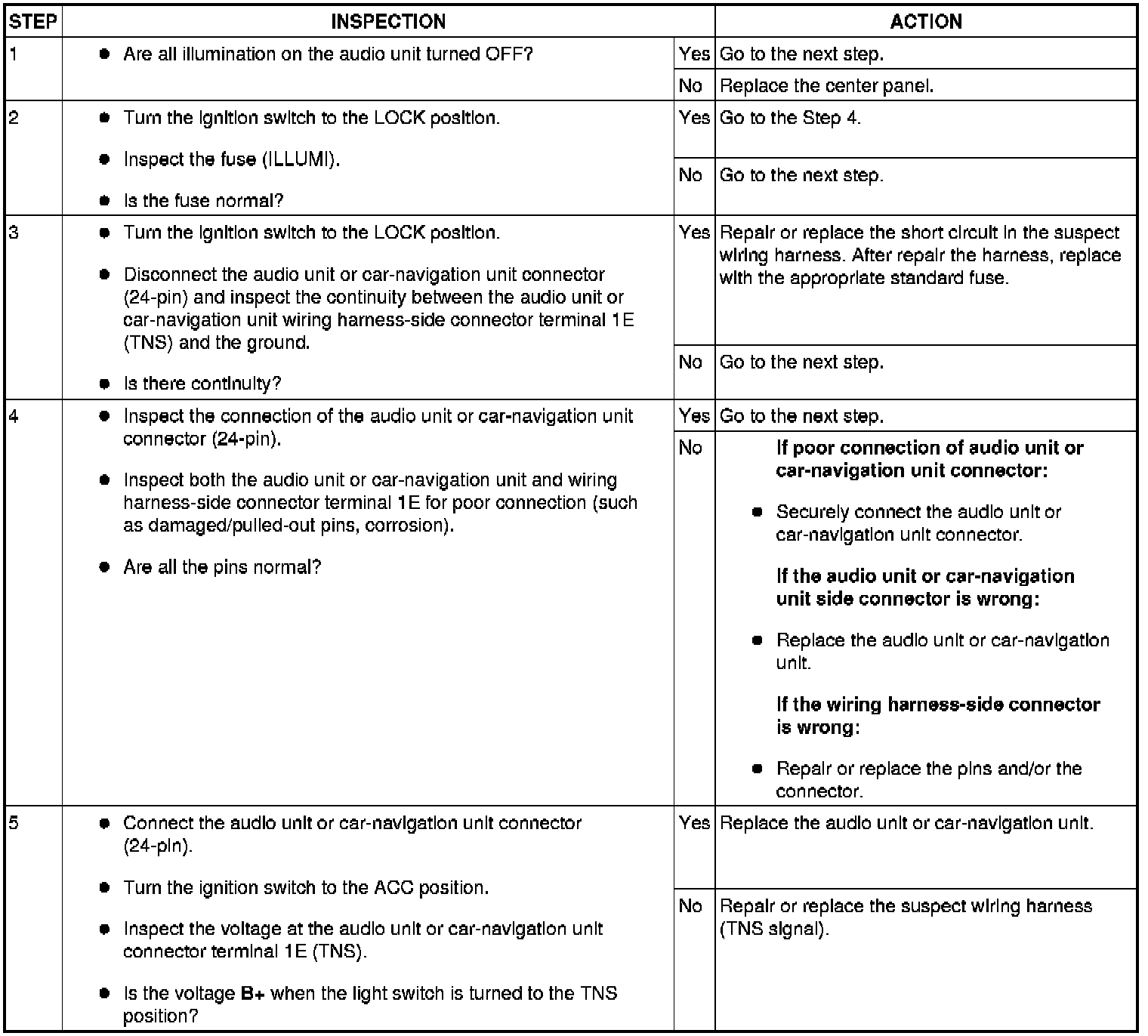

Step 1-Step 5:





*:Without car-navigation system
