Rear Antenna Feeder Removal/Installation
REAR ANTENNA FEEDER REMOVAL/INSTALLATION
Rear Antenna Feeder No.1
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. A-pillar trim A-Pillar Trim Removal/Installation
b. Front scuff plate inner Front Scuff Plate Removal/Installation
c. Rear scuff plate Rear Scuff Plate Removal/Installation
d. B-pillar lower trim B-Pillar Lower Trim Removal/Installation
e. Front seat belt upper anchor installation bolt Front Seat Belt Removal/Installation
f. B-pillar upper trim B-Pillar Upper Trim Removal/Installation
g. Rear package tray lid Service and Repair
h. Sub-trunk
i. Third-row seat (7-passenger model) Third-Row Seat Removal/Installation
j. Rear header trim Rear Header Trim Removal/Installation
k. Trunk end trim Trunk End Trim Removal/Installation
l. Third-row seat belt lower anchor installation bolt (7-passenger model) Third-Row Seat Belt Removal/Installation
m. Cargo compartment light Service and Repair
n. Trunk side trim
o. Second-row seat belt upper anchor installation bolt Second-Row Seat Belt Removal/Installation
p. C-pillar trim C-Pillar Trim Removal/Installation
q. Map light Service and Repair
r. Assist handle Service and Repair
s. Sunvisor Service and Repair
t. Headliner Headliner Removal/Installation

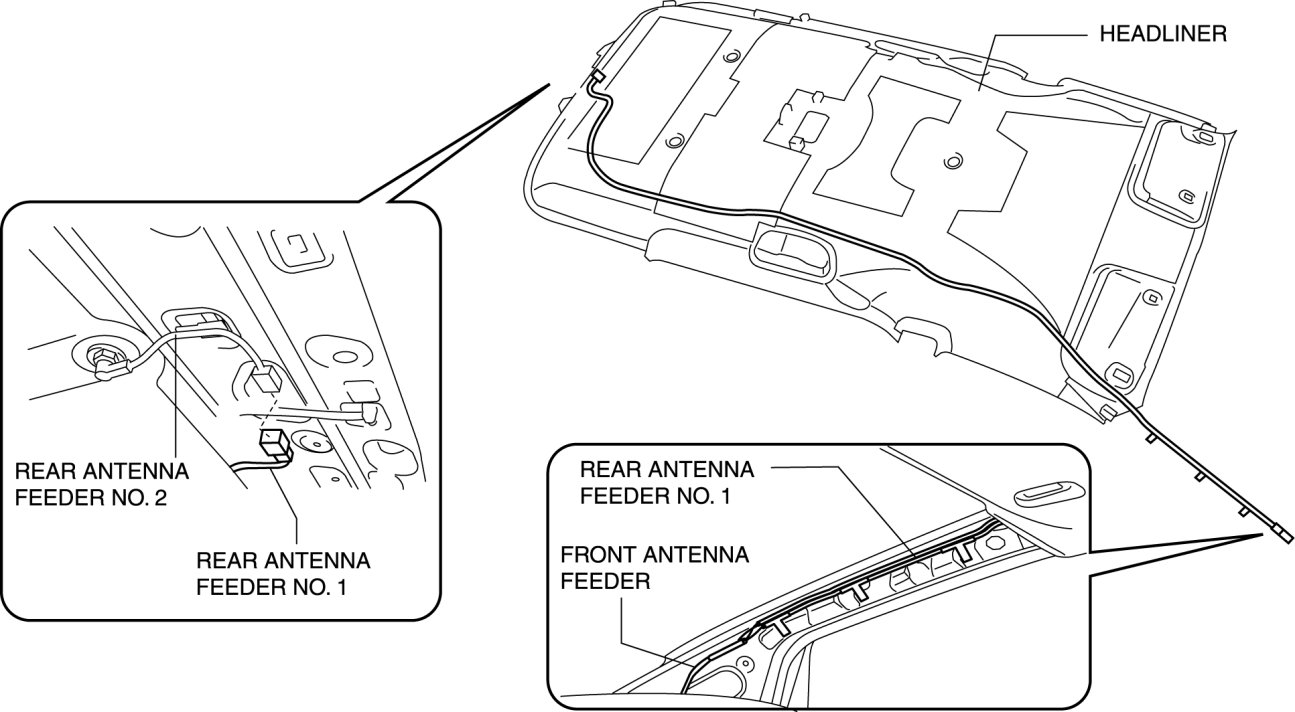

3. Remove the rear antenna feeder No.1 from the headliner.
4. Install the new rear antenna feeder No.1 to the headliner.
5. Install in the reverse order of removal.
Rear Antenna Feeder No.2
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Rear package tray lid Service and Repair
b. Third-row seat Third-Row Seat Removal/Installation
c. Rear scuff plate Rear Scuff Plate Removal/Installation
d. Trunk end trim Trunk End Trim Removal/Installation
e. Lower anchor of the third-row seat belt Third-Row Seat Belt Removal/Installation
f. Cargo compartment light Service and Repair
g. Trunk side trim
h. Rear header trim Rear Header Trim Removal/Installation
i. Upper anchor of the second-row seat belt Second-Row Seat Belt Removal/Installation
j. C-pillar trim C-Pillar Trim Removal/Installation
3. Partially peel back the headliner.

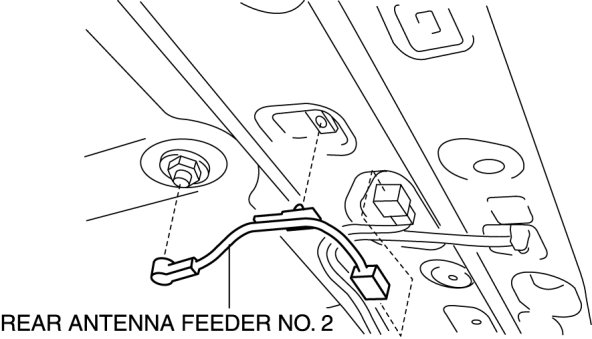

4. Remove the Rear antenna feeder No.2.
5. Install in the reverse order of removal.
