LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
2009
>>
5 L4-2.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P2096
P2096
DTC P2096 [L3]
Detection Condition:
Possible Cause:
Diagnostic procedure

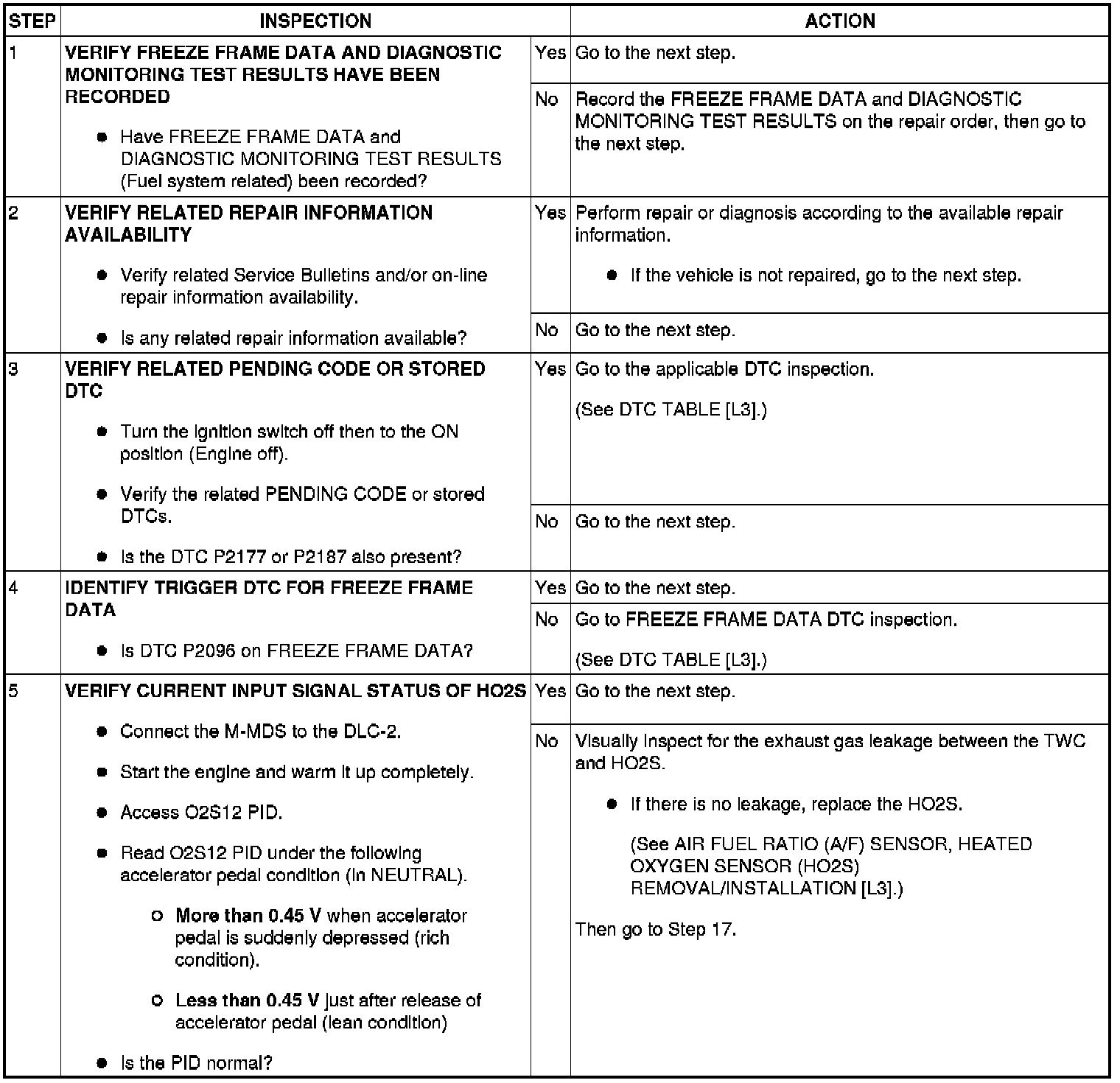

Step 1-Step 5:

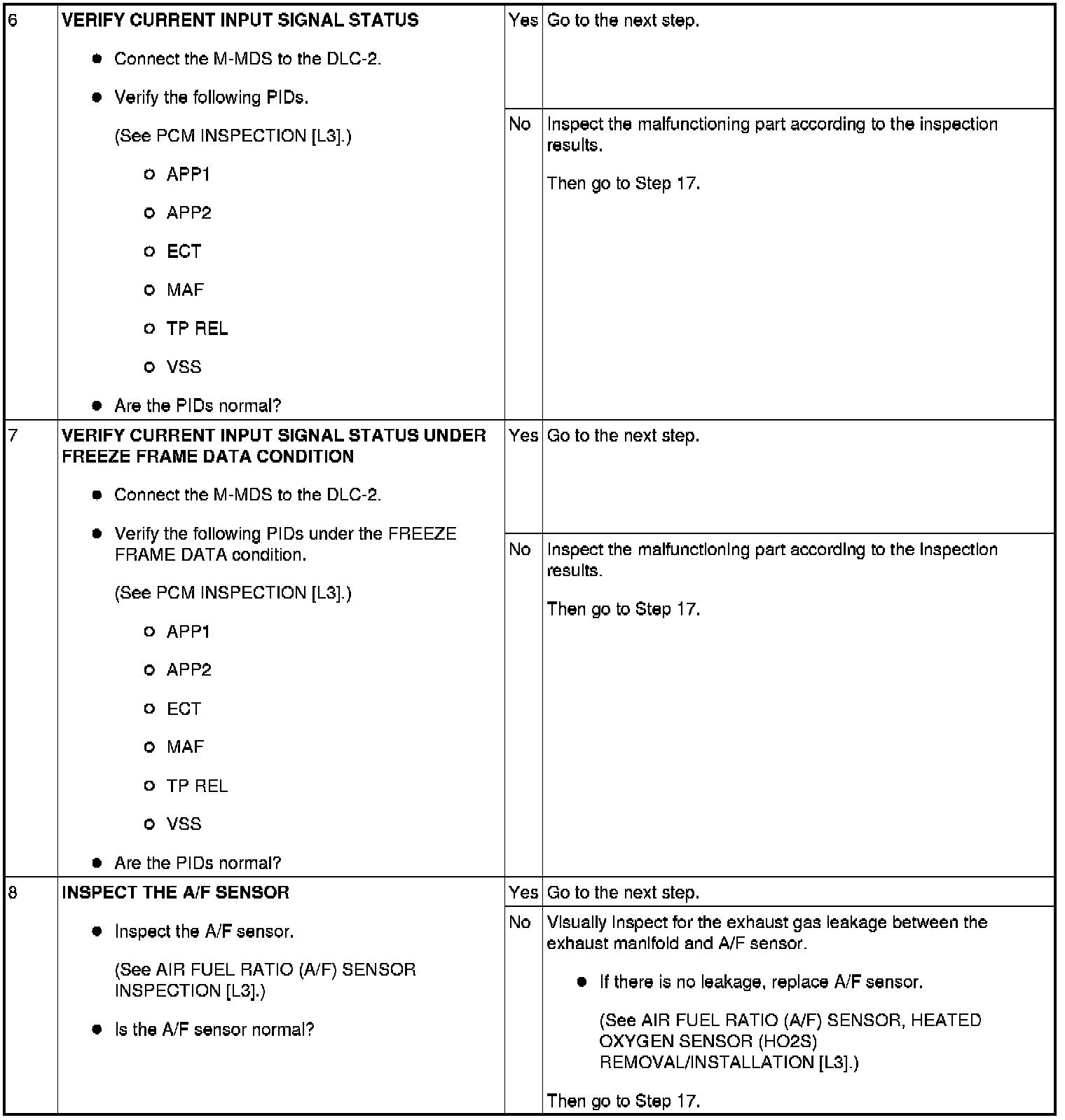

Step 6-Step 8:

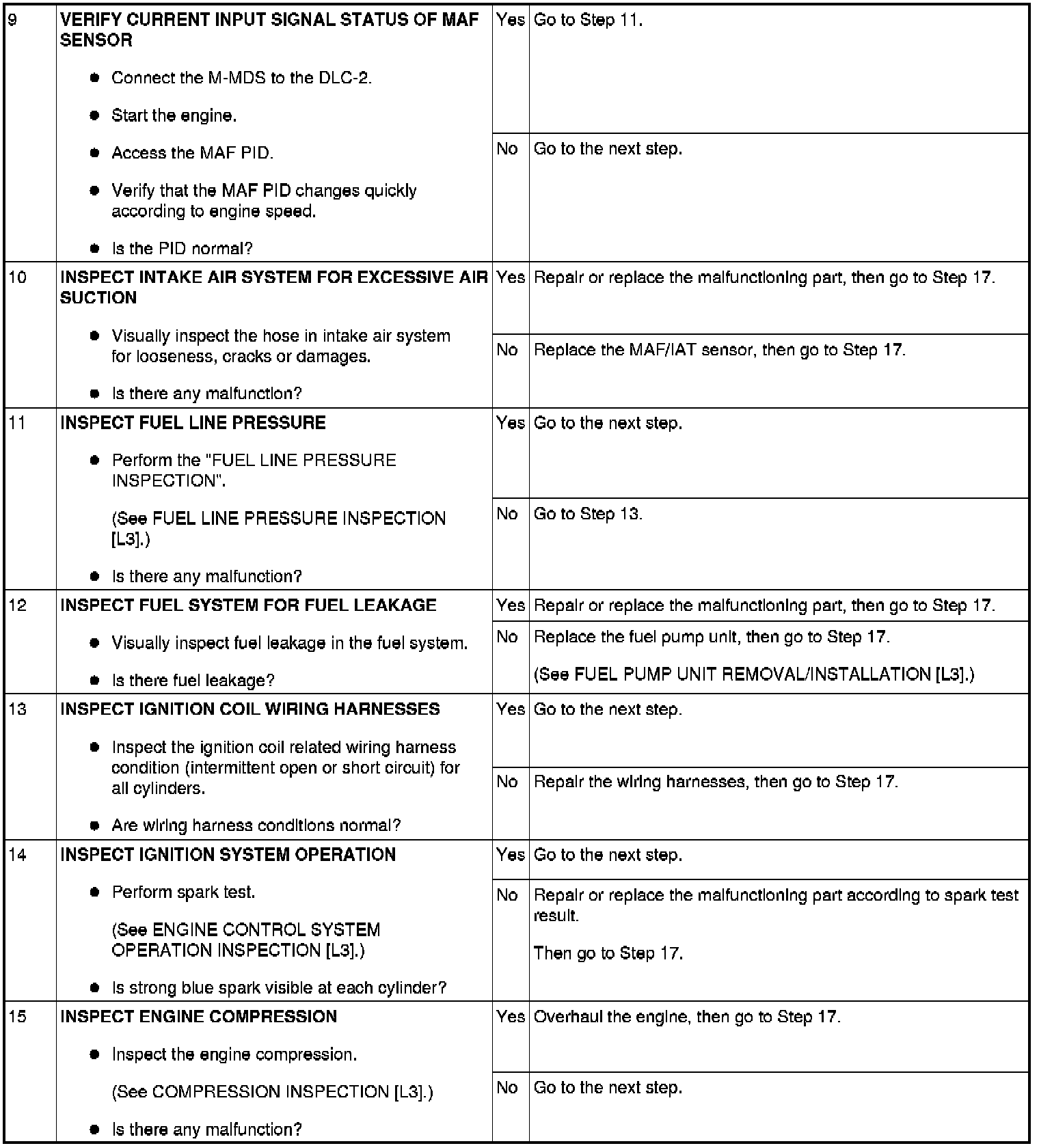

Step 9-Step 15:
Step 16-Step 18:
