DTC P2006 [L3]

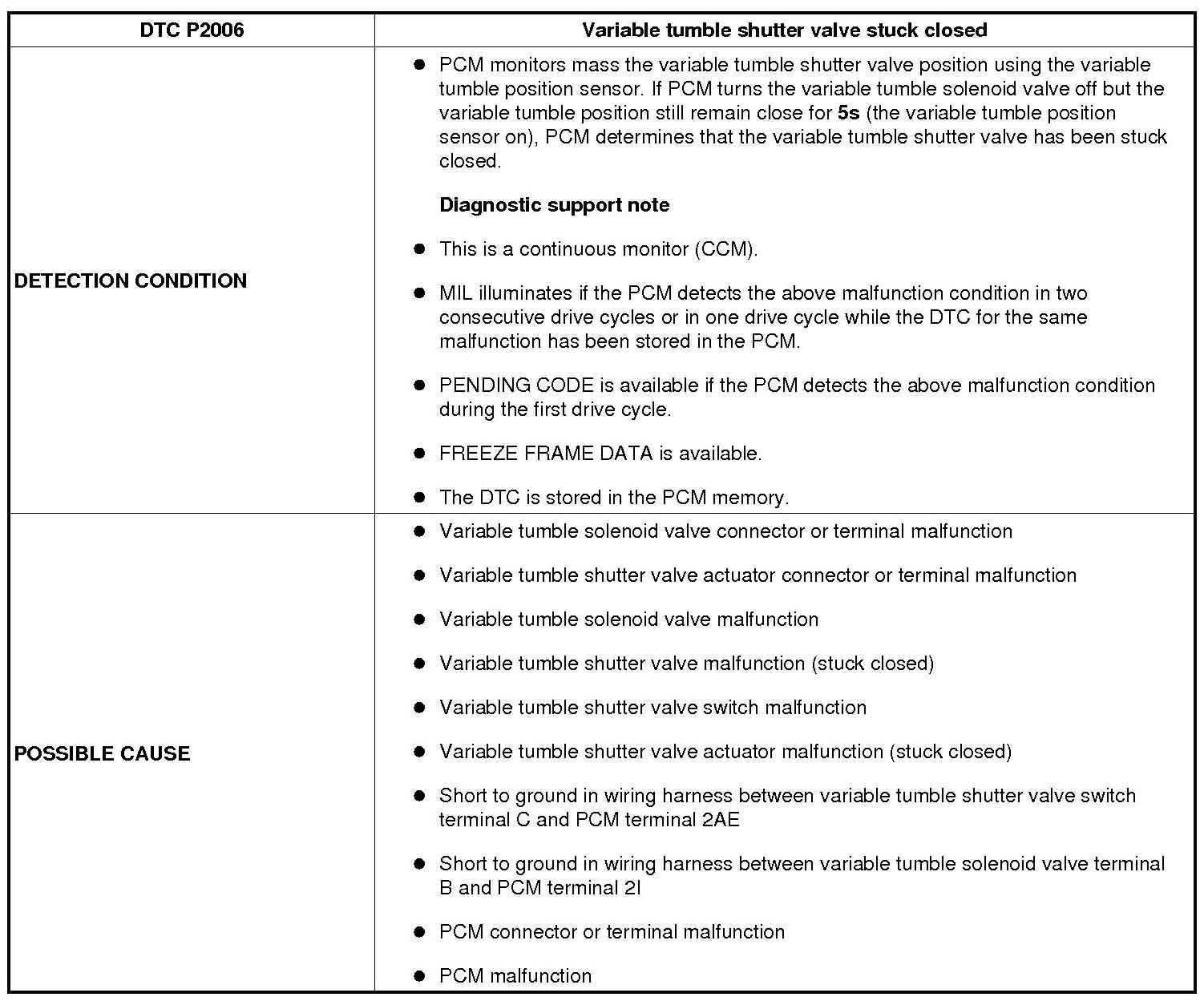

Detection Condition/Possible Cause (Part 1):
Detection Condition/Possible Cause (Part 2):
Diagnostic procedure

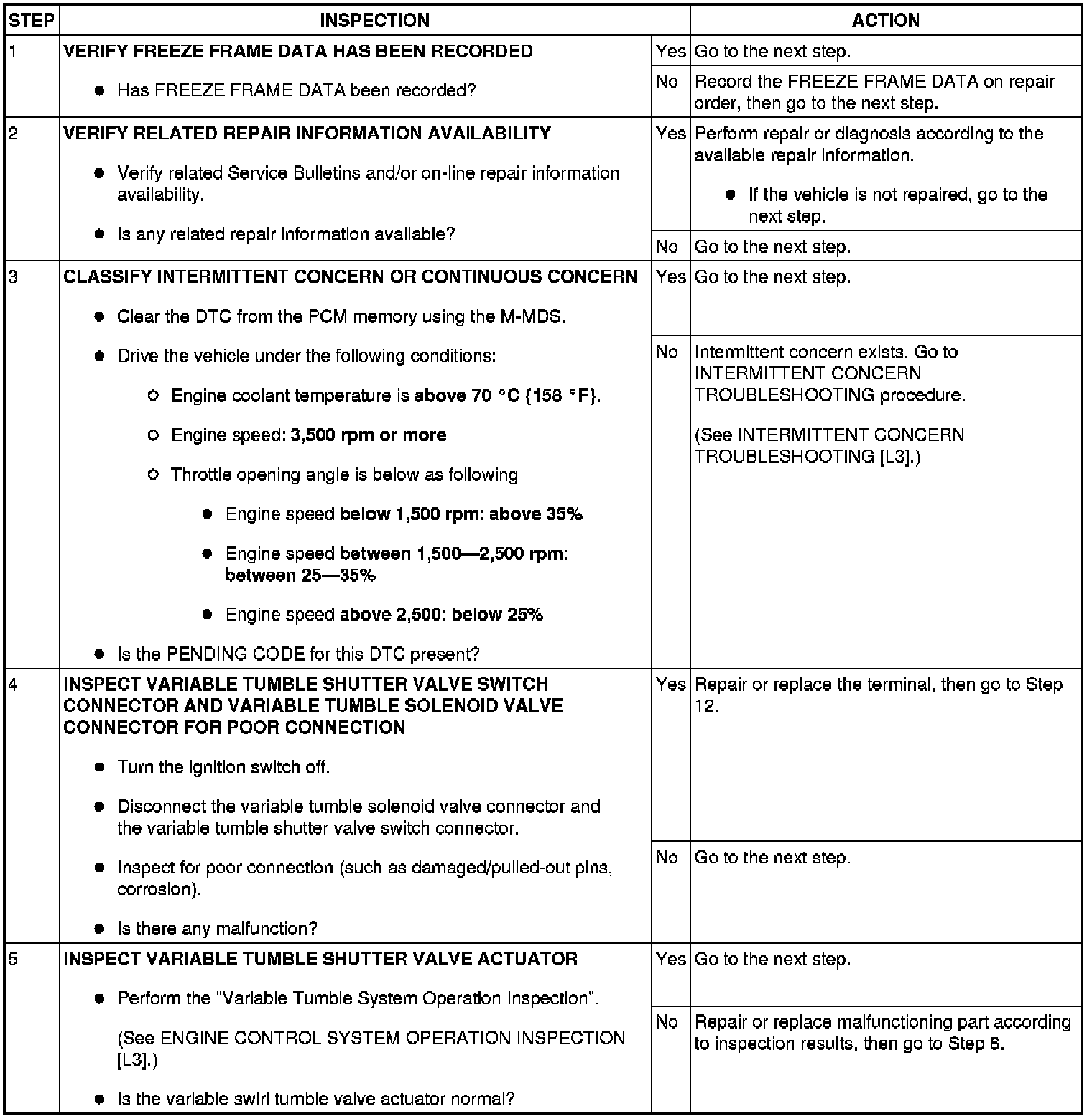

Step 1-Step 5:

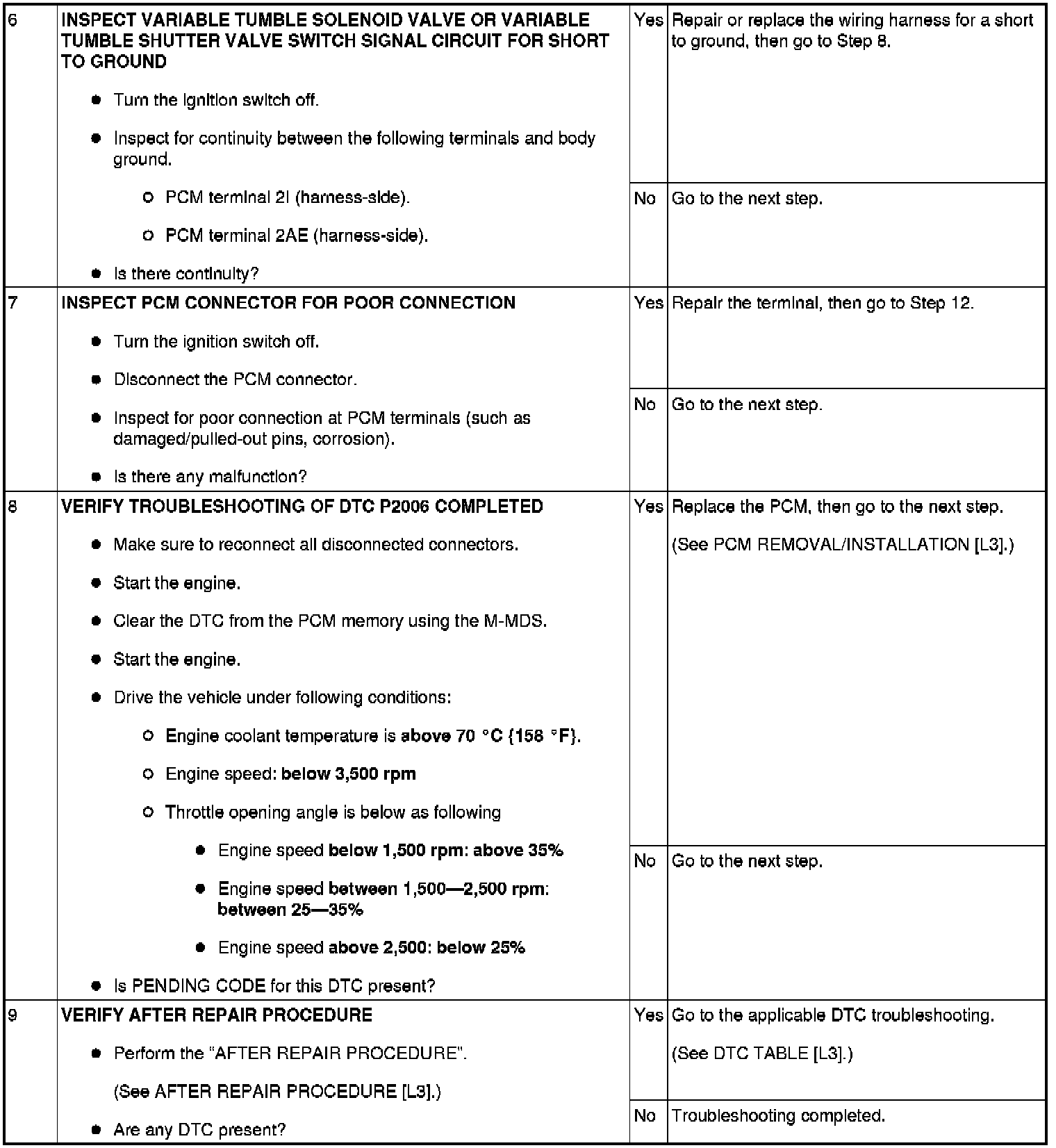

Step 6-Step 9:
