Headlamp Alignment Switch: Service and Repair

HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Detach the hood release lever from the lower panel. (See Service and Repair.)

3. Remove the front scuff plate. (Driver"s side) (See Front Scuff Plate Removal/Installation.)

4. Remove the front side trim. (Driver"s side) (See Front Side Trim Removal/Installation.)

5. Remove the lower panel. (See Lower Panel Removal/Installation.)

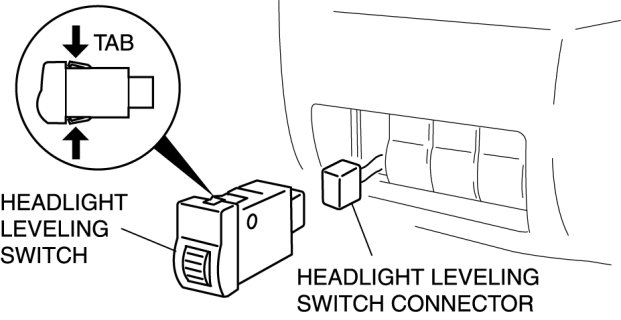

6. Remove the headlight leveling switch






7. Disconnect the headlight leveling switch connector.

8. Install in the reverse order of removal.
