Backup Lamp Switch: Service and Repair

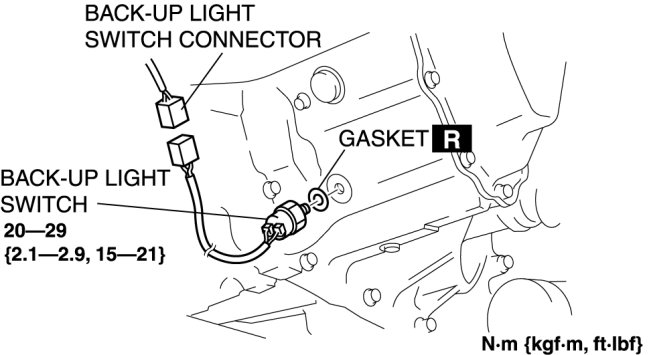

BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the under cover.

3. Disconnect the back-up light switch connector and remove the back-up light switch.






4. Install in the reverse order of removal.
