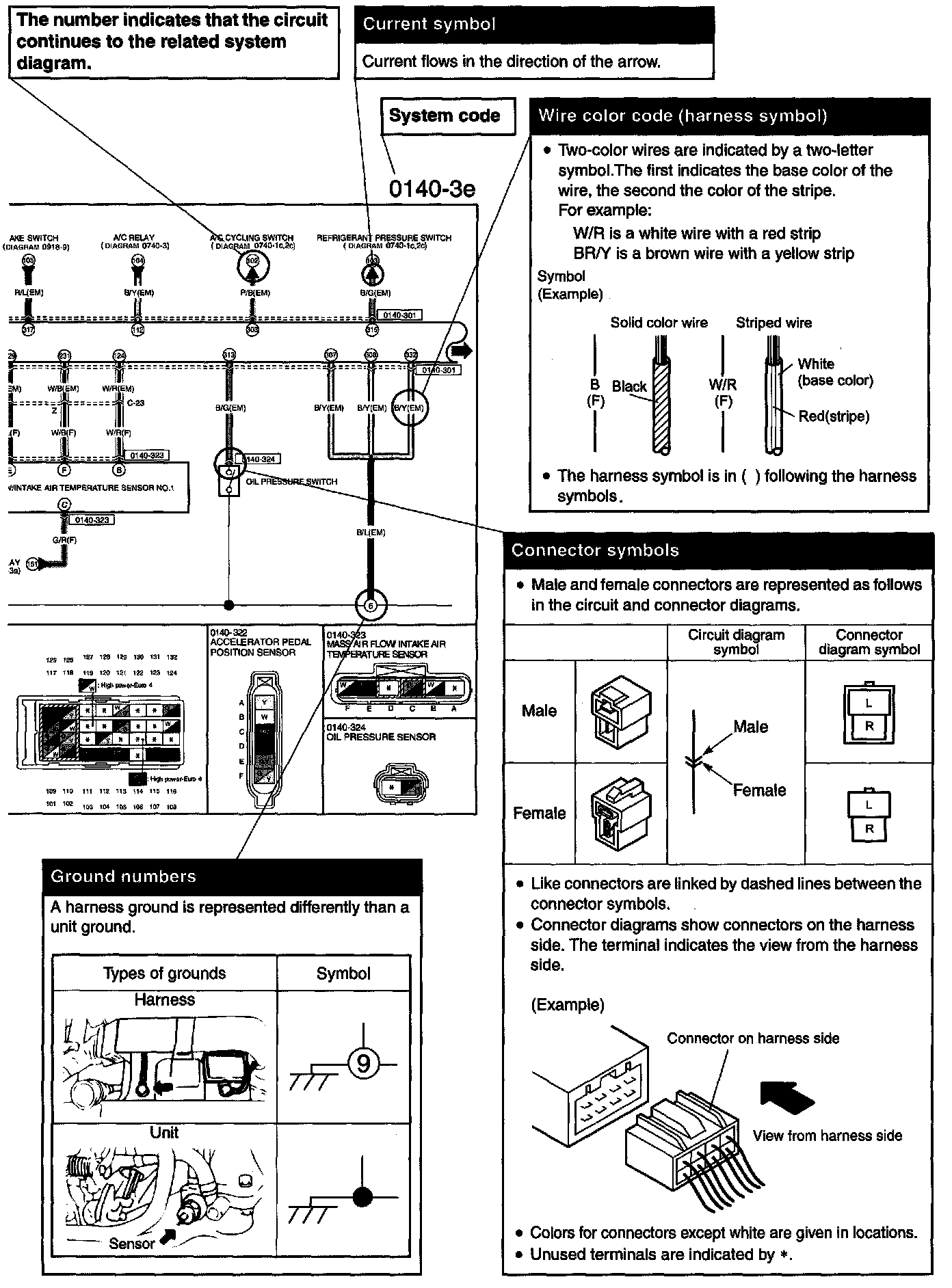

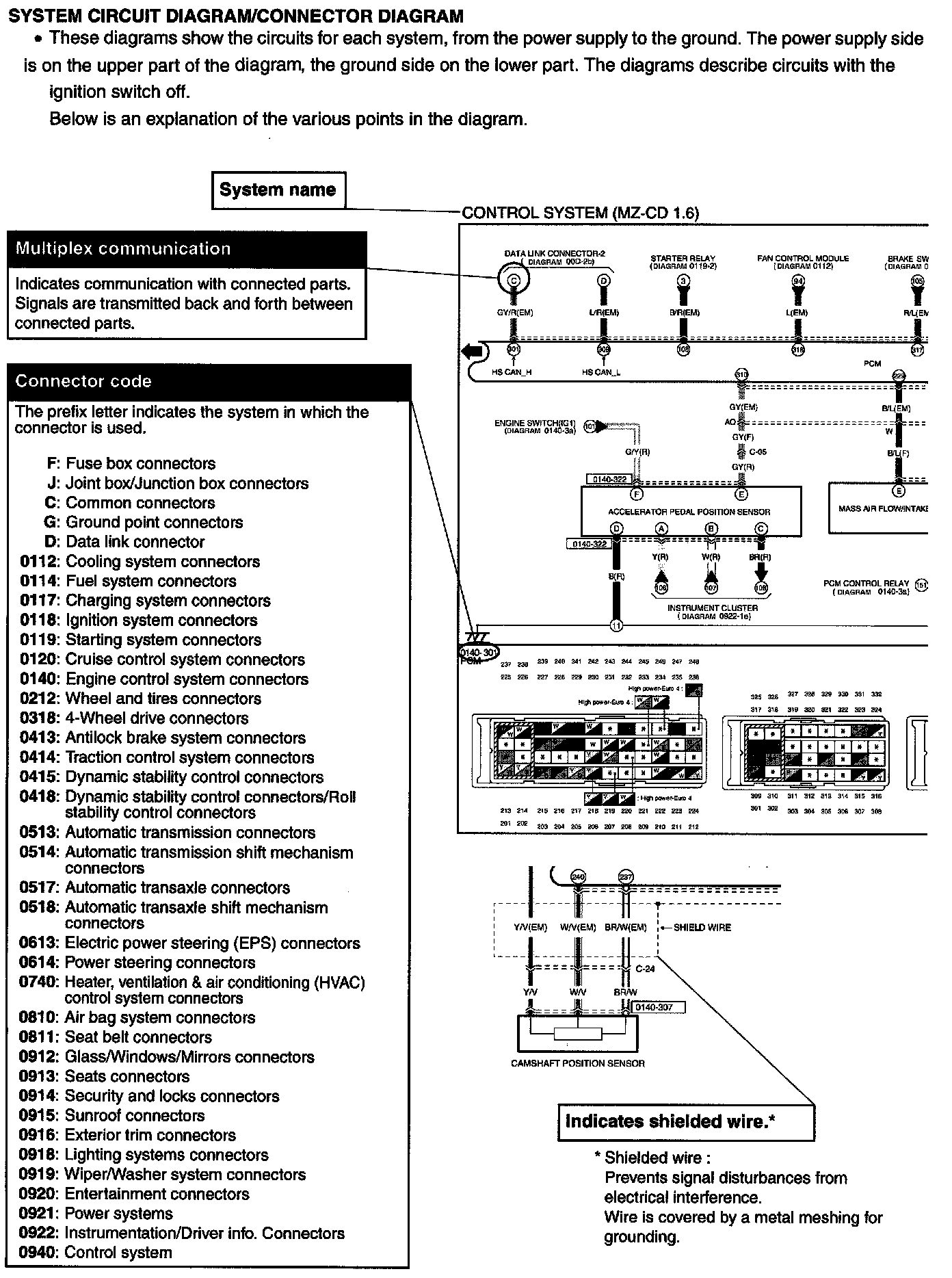

Home >> Mazda >> 2009 >> 3 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Ignition Switch >> Diagrams >> Diagram Information and Instructions >> How To Read System Circuit Diagrams
