Headlamp Switch: Service and Repair

LIGHT SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (Driver's side) Front Scuff Plate Removal/Installation

b. Front side trim (Driver's side) Front Side Trim Removal/Installation

c. Hood release lever Service and Repair

d. Lower panel Lower Panel Removal/Installation

e. Column cover Service and Repair

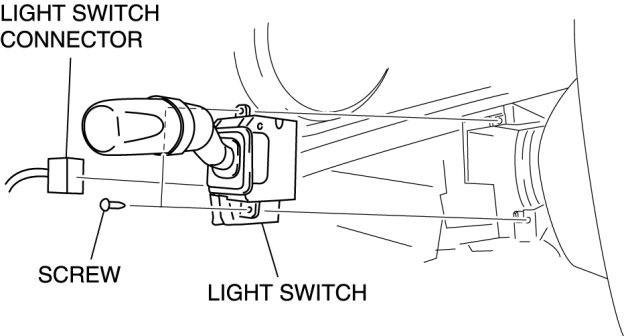

3. Disconnect the light switch connector.






4. Remove the screws, then remove the light switch.

5. Install in the reverse order of removal.
