No. 6 Instrument Cluster Illumination Does Not Illuminate [Instrument Cluster]




NO. 6 INSTRUMENT CLUSTER ILLUMINATION DOES NOT ILLUMINATE [INSTRUMENT CLUSTER]

Possible Cause:





Diagnostic procedure

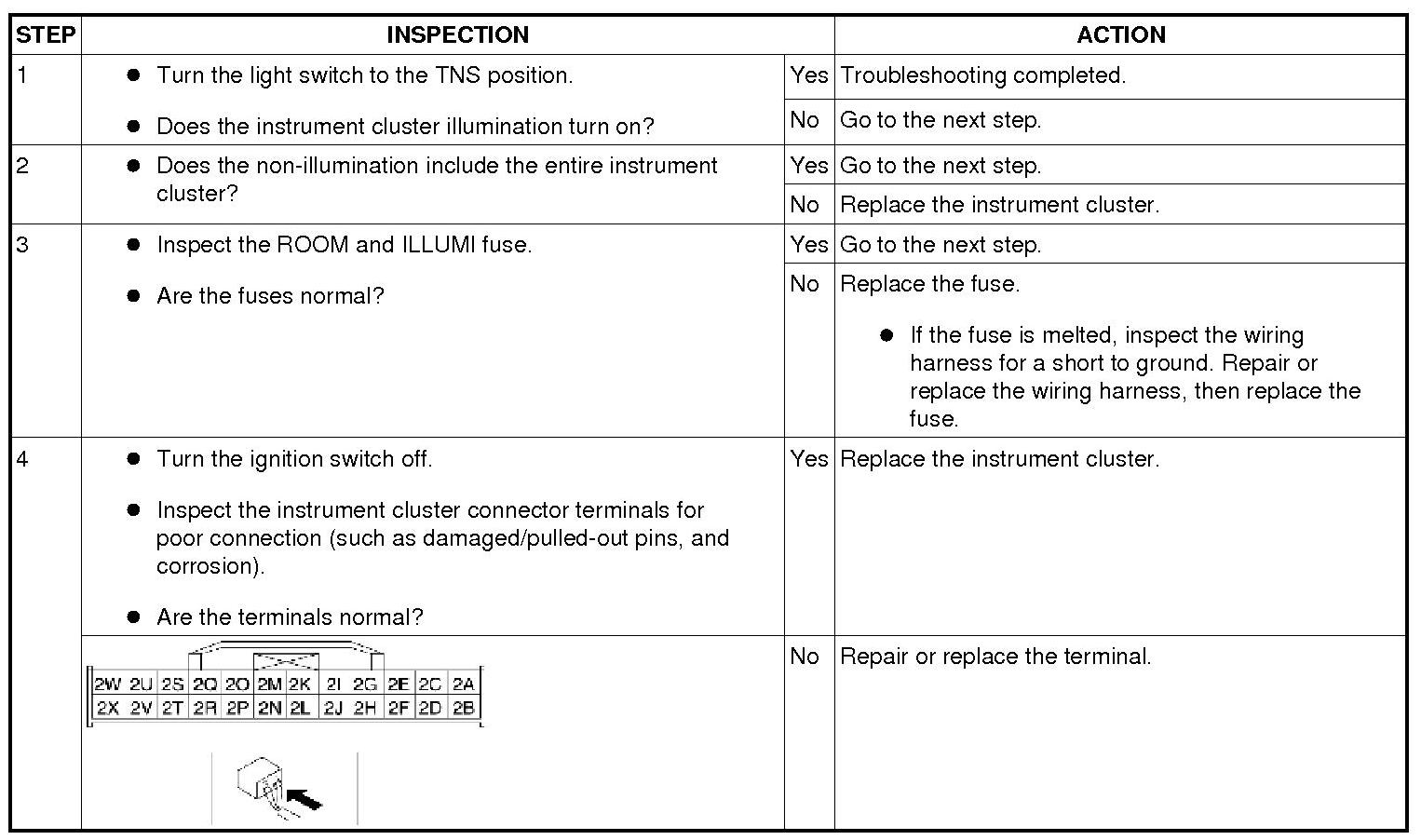

Step 1-Step 4:
