No. 3 ABS Warning Light Illuminates [Instrument Cluster]
No. 3 ABS Warning Light Illuminates [Instrument Cluster]
NO. 3 ABS WARNING LIGHT ILLUMINATES [INSTRUMENT CLUSTER]
Possible Cause:

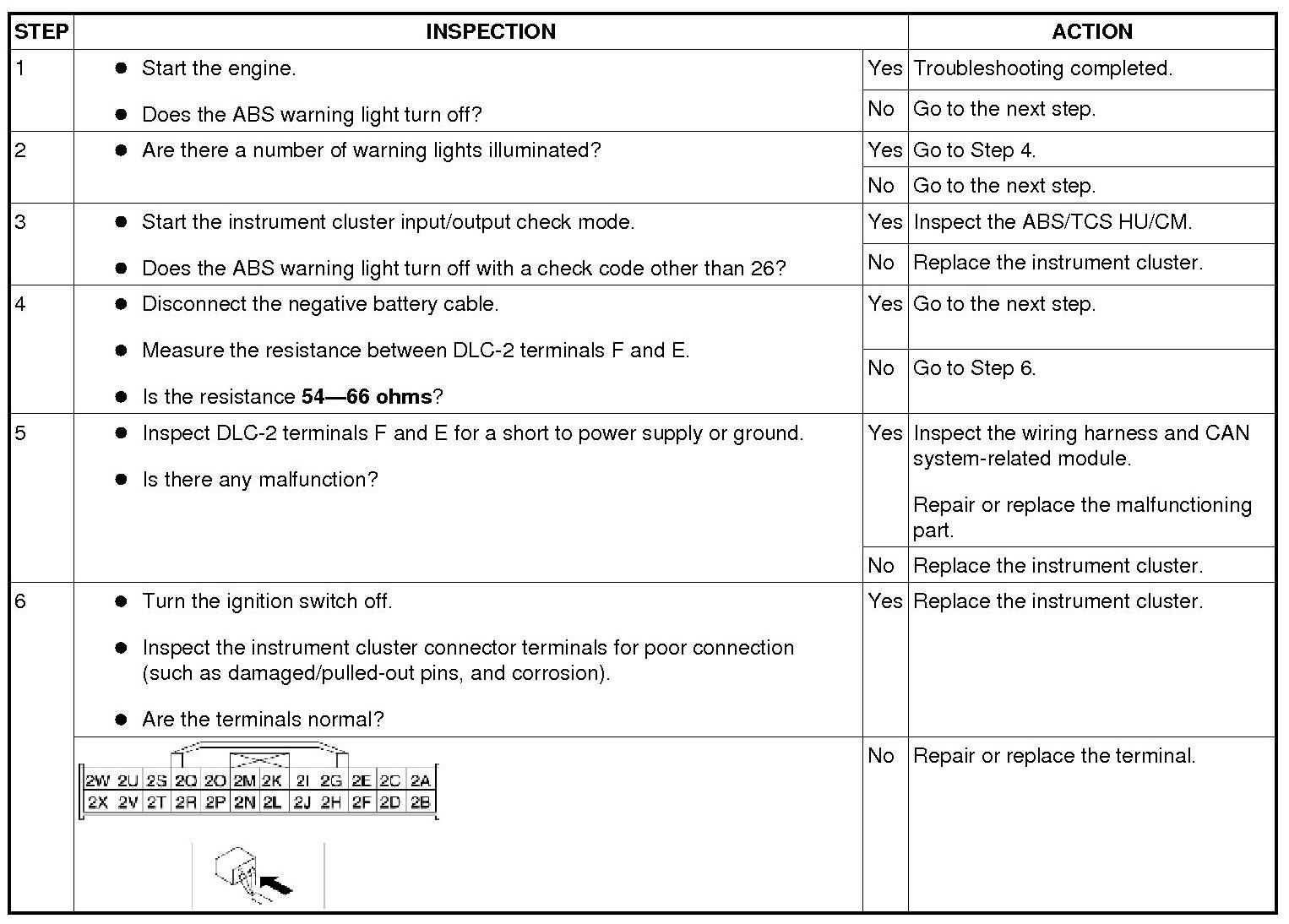

Diagnostic procedure
Step 1-Step 6:
