Drive Belt Tensioner: Testing and Inspection




DRIVE BELT AUTO TENSIONER INSPECTION [LF, L3]

1. Remove the drive belt. Service and Repair

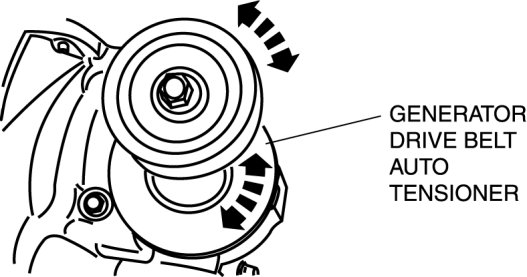

2. Verify that the generator drive belt auto tensioner moves smoothly in the operational direction.






- If it does not move smoothly, replace the generator drive belt auto tensioner. Service and Repair

3. Turn the generator drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

- If it does not move smoothly, replace the generator drive belt auto tensioner. Service and Repair

4. Install the generator drive belt. Service and Repair
