Home >> Mazda >> 2009 >> 3 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0918-11 (Headlight Manual leveling System)

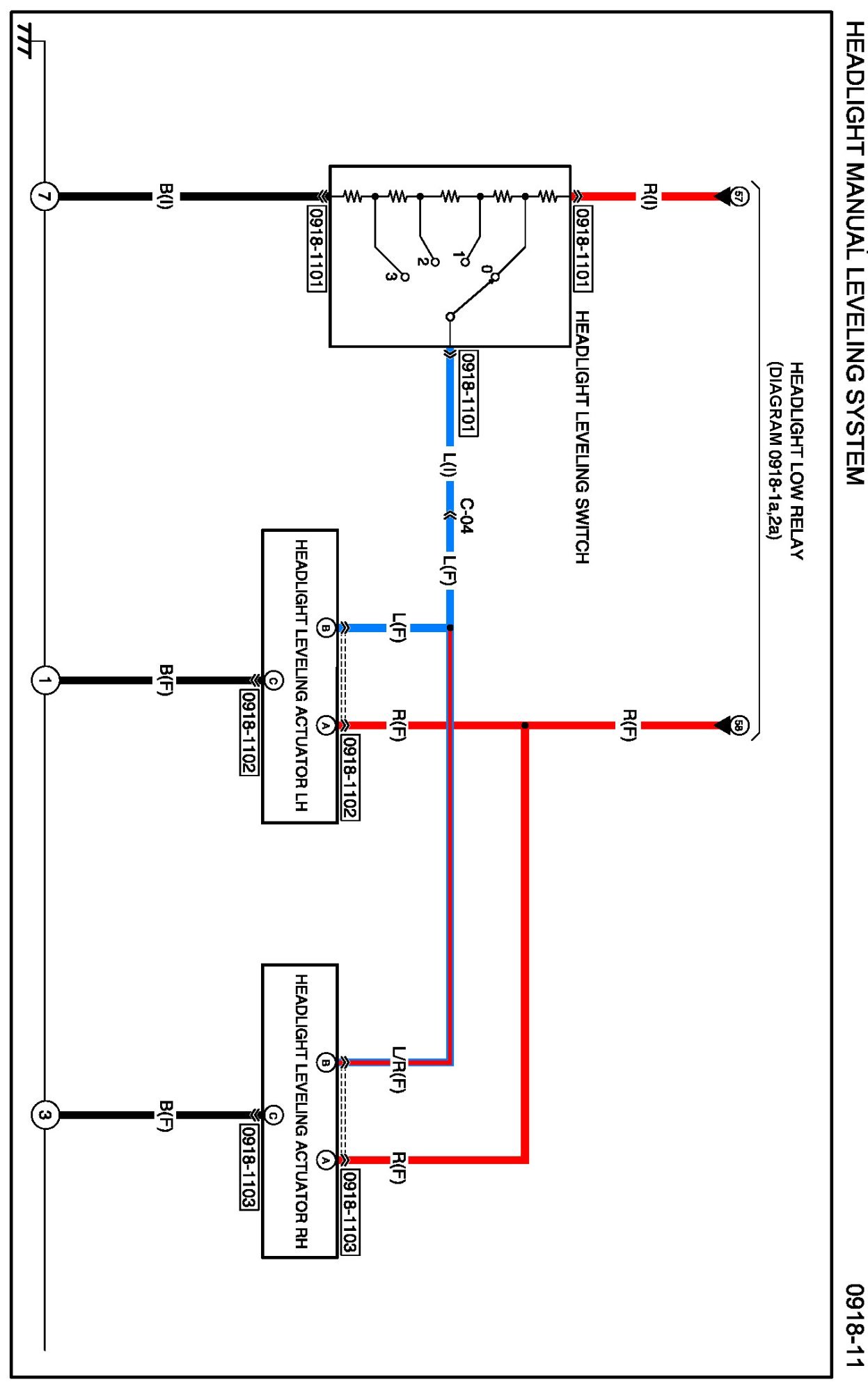

Diagram 0918-11 (Headlight Manual leveling System)

Diagram 0918-11:
