Front Side Trim Removal/Installation

FRONT SIDE TRIM REMOVAL/INSTALLATION

1. Remove the front scuff plate. Front Scuff Plate Removal/Installation

2. Remove the fastener.

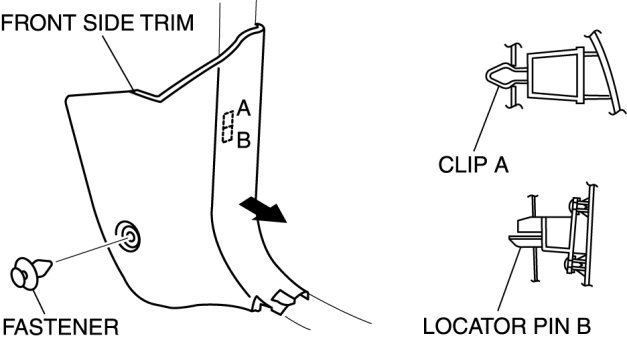

3. Pull the front side trim in the direction of the arrow and detach clip A and locator pin B.

4. Install in the reverse order of removal.
