Trunk End Trim Removal/Installation

TRUNK END TRIM REMOVAL/INSTALLATION

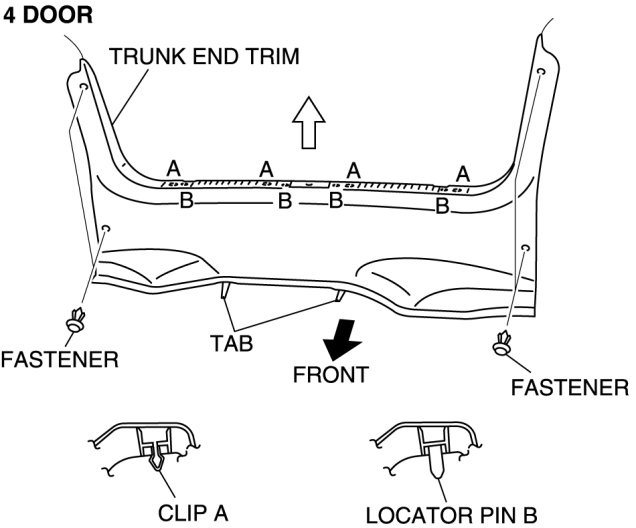

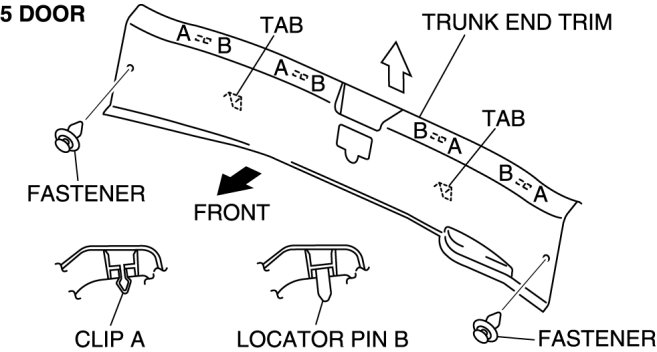

1. Remove the fasteners.











2. Pull the trunk end trim upward, then detach clips A, locator pins B and tabs.

3. Remove the trunk end trim.

4. Install in the reverse order of removal.
