Rear Scuff Plate Removal/Installation

REAR SCUFF PLATE REMOVAL/INSTALLATION

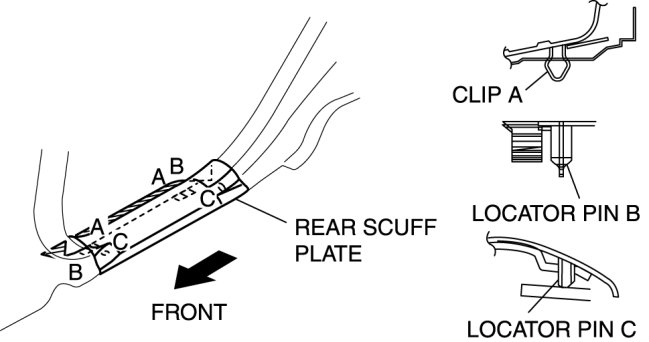

1. Pull the rear scuff plate upward, detach clips A, locator pins B and C from the body, and then remove the rear scuff plate.






2. Install in the reverse order of removal.
