Remote Switch: Testing and Inspection

AUDIO CONTROL SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the driver-side air bag module. Driver-Side Air Bag Module Removal/Installation

3. Disconnect the audio control switch connector.

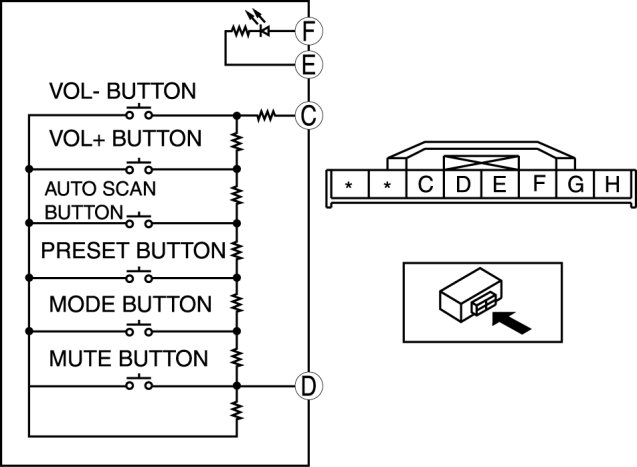

4. Verify the resistance and continuity between the audio control switch terminals.






- If the resistance and continuity are not as indicated in the tables, replace the audio control switch.

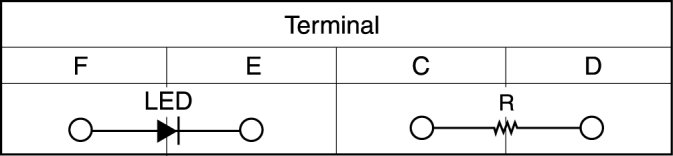

R:
Resistance. See the table.
