No.1 AF Noise Or Pop Noise At All Sources (Radio, CD)




NO.1 AF NOISE OR POP NOISE AT ALL SOURCES (RADIO, CD) [ENTIRE AUDIO SYSTEM]

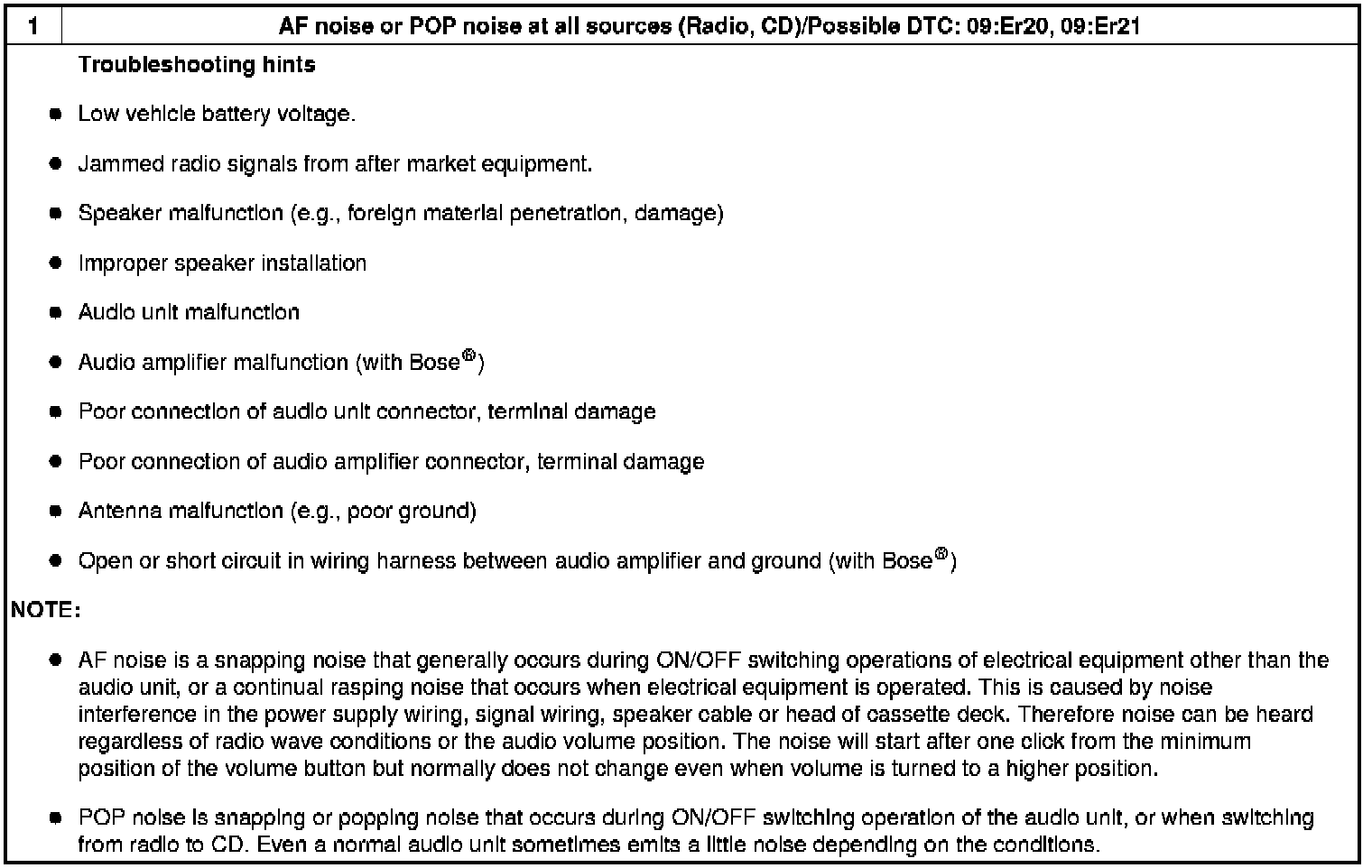

Troubleshooting Hints:





Diagnostic procedure

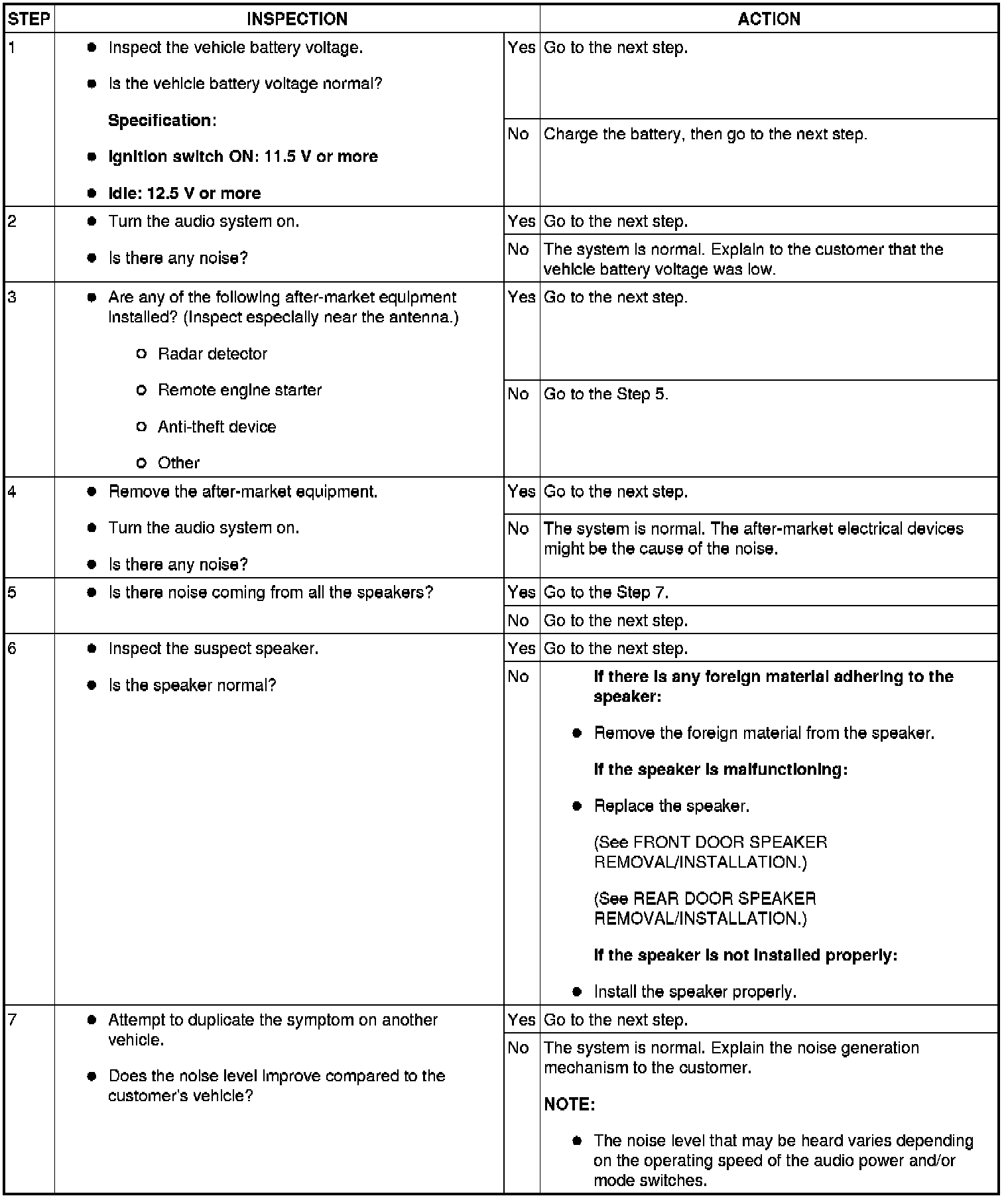

Step 1-Step 7:

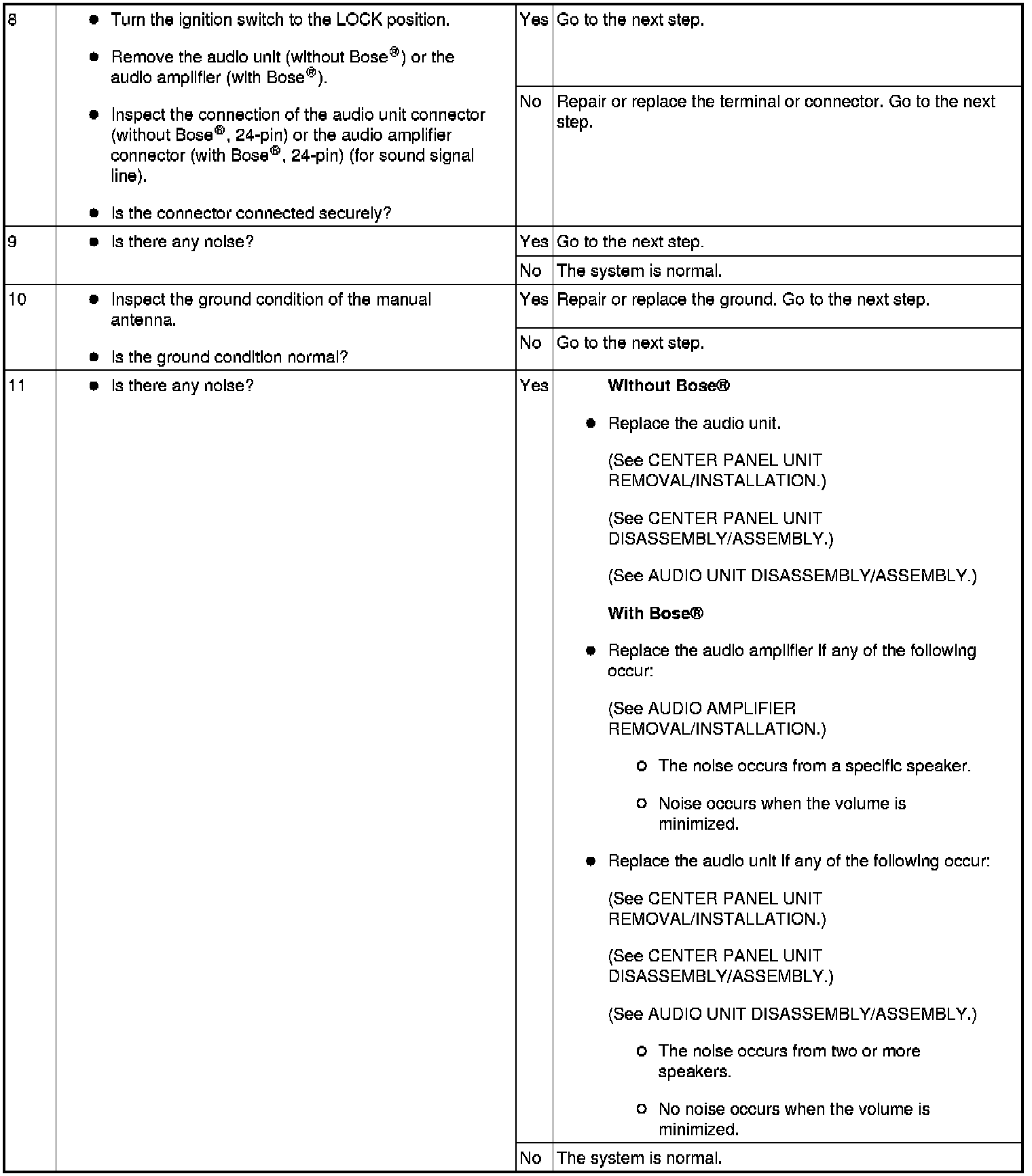

Step 8-Step 11:
