Rear Antenna Feeder Inspection

REAR ANTENNA FEEDER INSPECTION

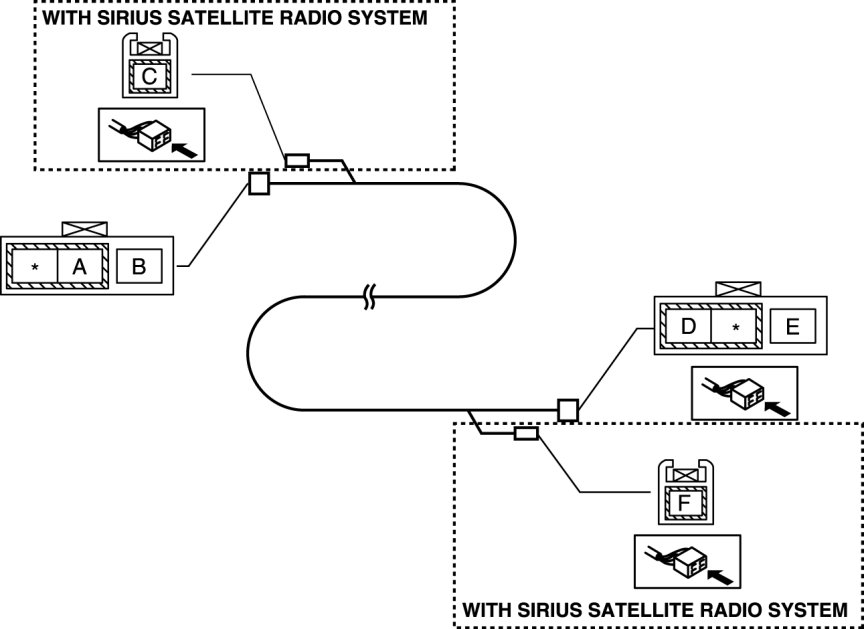

Rear Antenna Feeder No.1

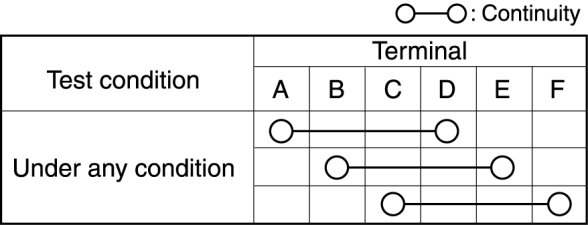

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the rear antenna feeder No. 1.

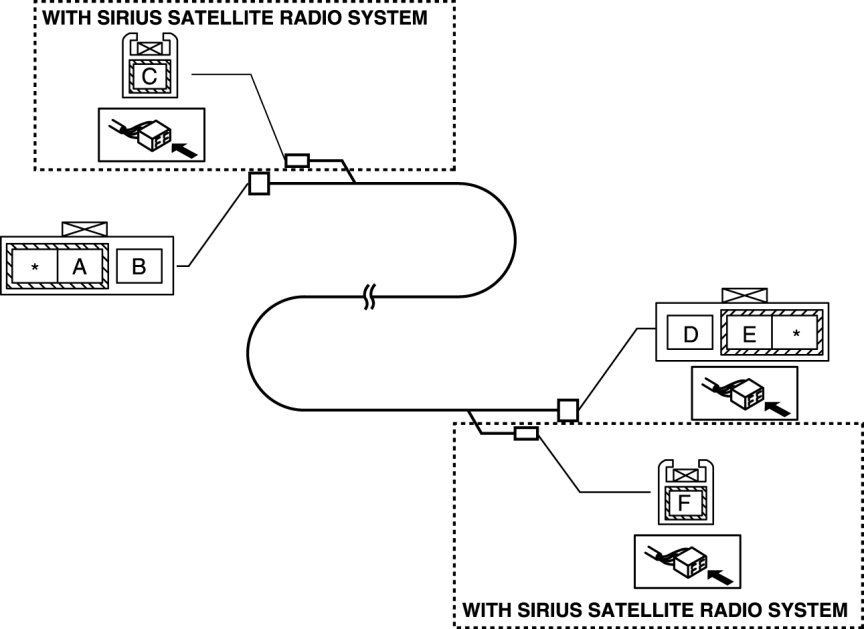

Rear Antenna Feeder No.2

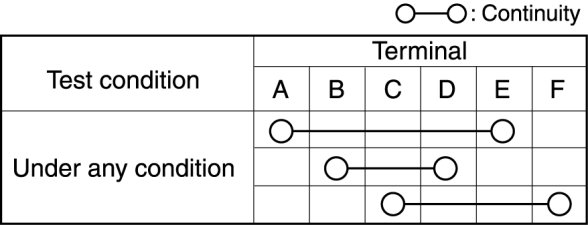

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the rear antenna feeder No. 2.
