Front Antenna Feeder Inspection

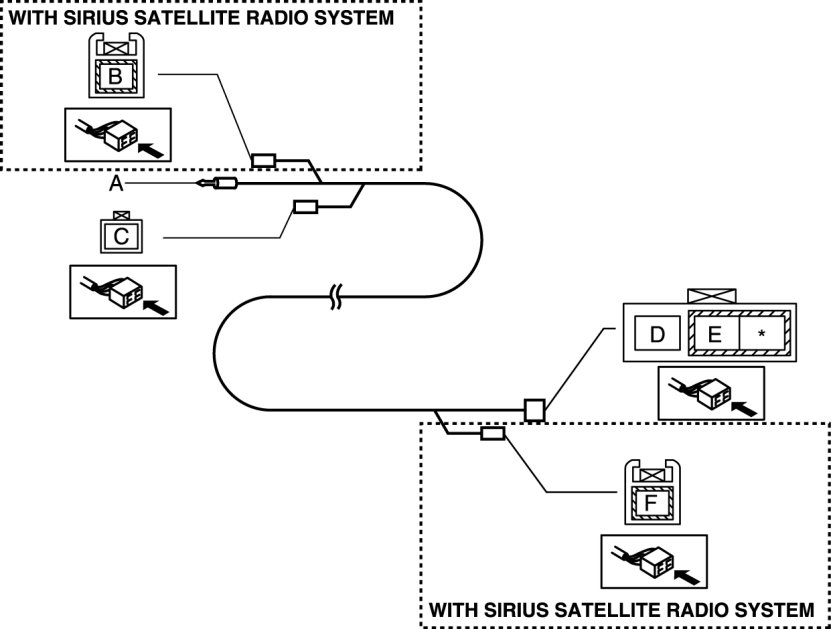

FRONT ANTENNA FEEDER INSPECTION

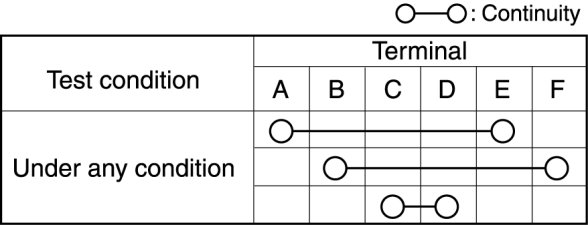

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the front antenna feeder.
