A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 09:ER20
>>
Entire Audio System
>>
No.2 No Power To The Entire Audio System
No.2 No Power To The Entire Audio System
NO.2 NO POWER TO THE ENTIRE AUDIO SYSTEM [ENTIRE AUDIO SYSTEM]
Troubleshooting Hints:

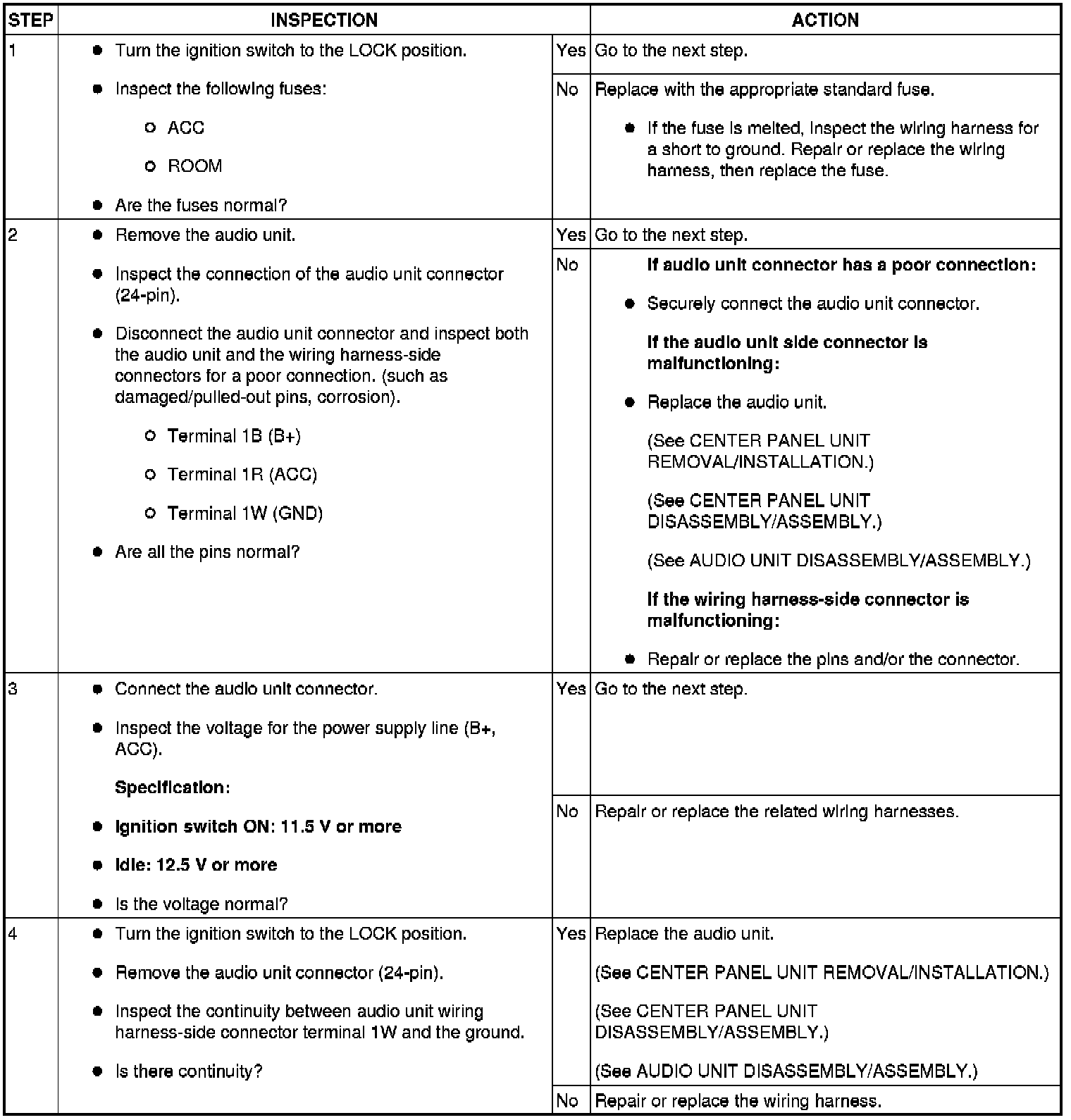

Diagnostic procedure
Step 1-Step 4:
