No.17 Excessive Shift Shock From N To D Or N To R Position/Range




NO.17 EXCESSIVE SHIFT SHOCK FROM N TO D OR N TO R POSITION/RANGE [FS5A-EL]

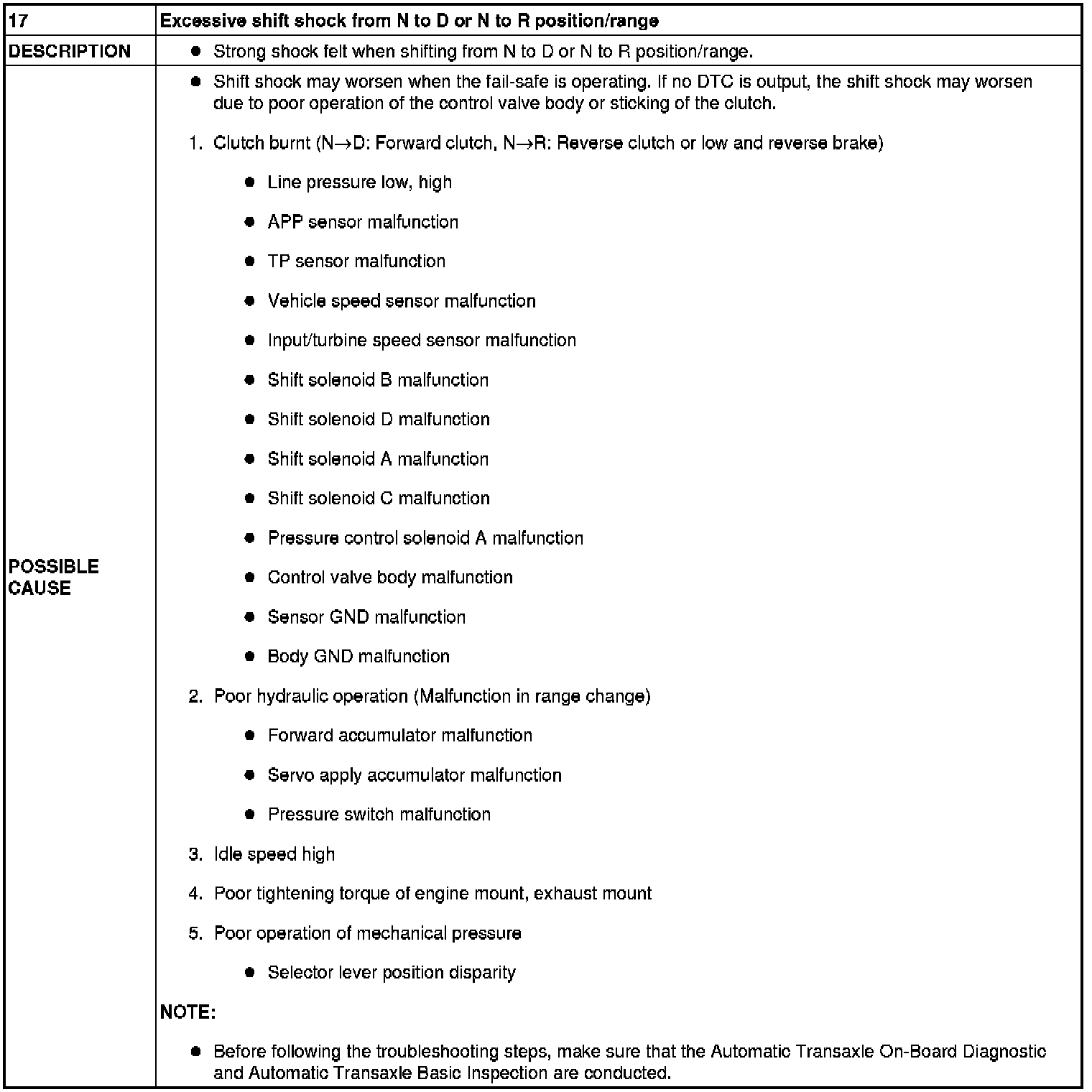

Description/Possible Cause:





Diagnostic procedure

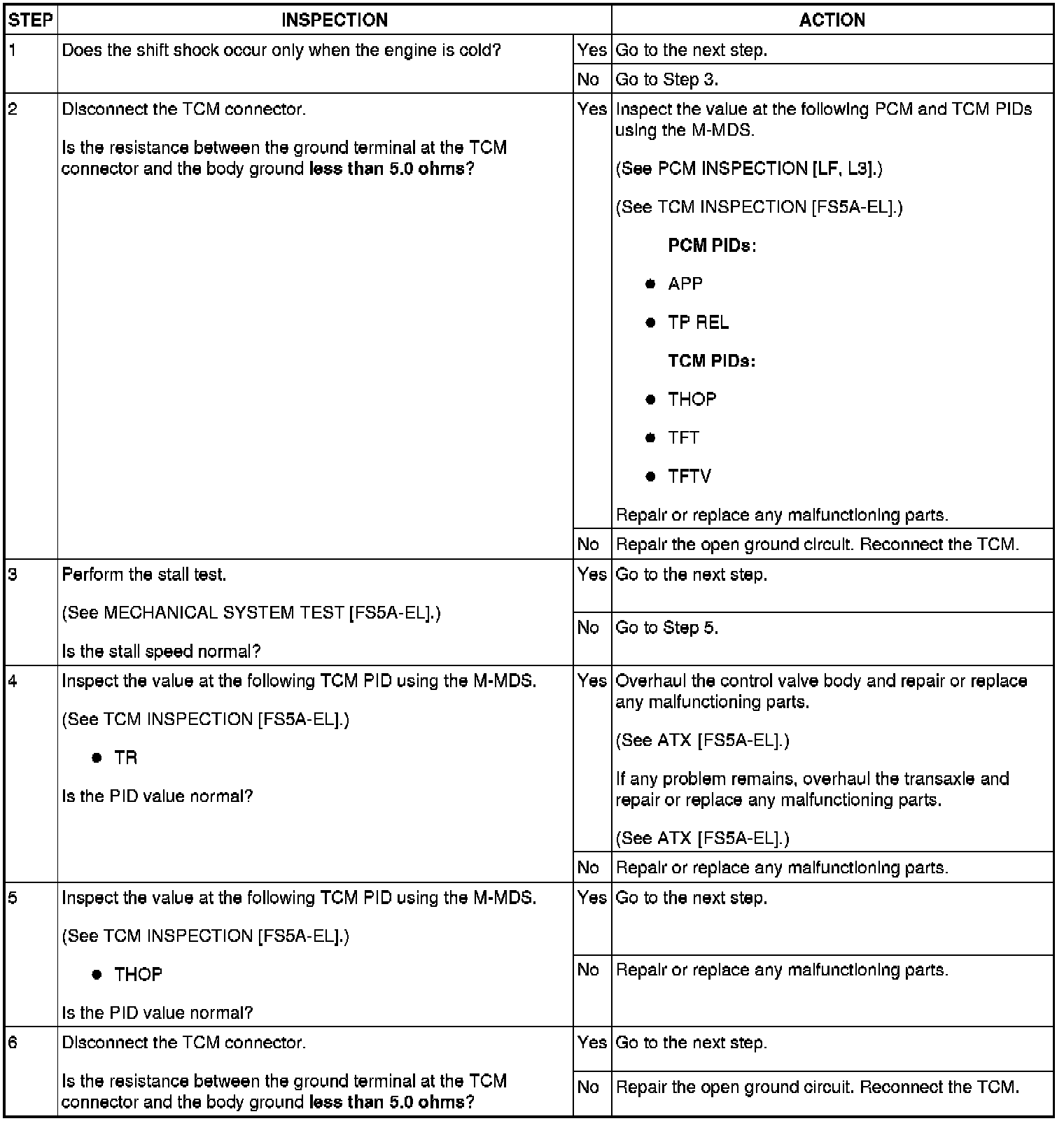

Step 1-Step 6:





Step 7-Step 8:
