Clockspring Assembly / Spiral Cable: Testing and Inspection

CLOCK SPRING INSPECTION

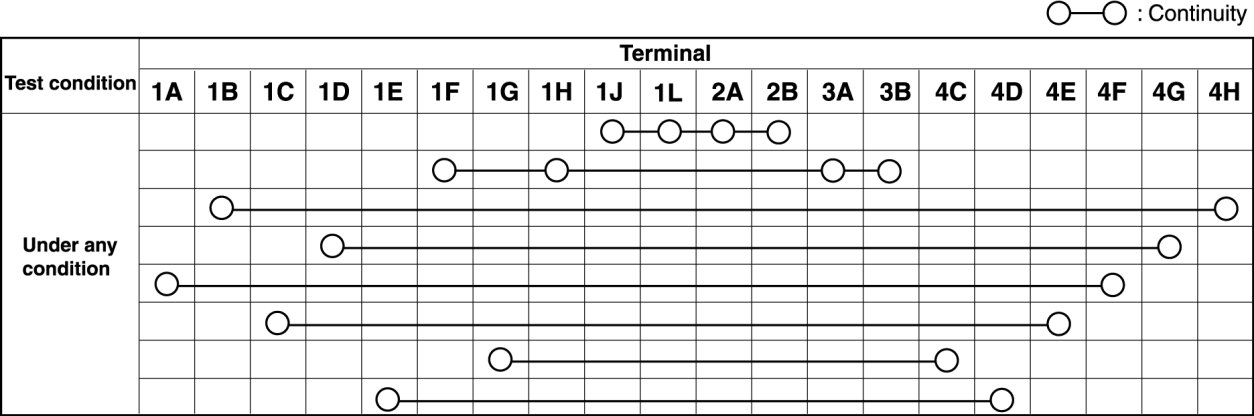

1. Verify that the continuity is as indicated in the table.

- If not as indicated in the table, replace the clock spring.

NOTE:

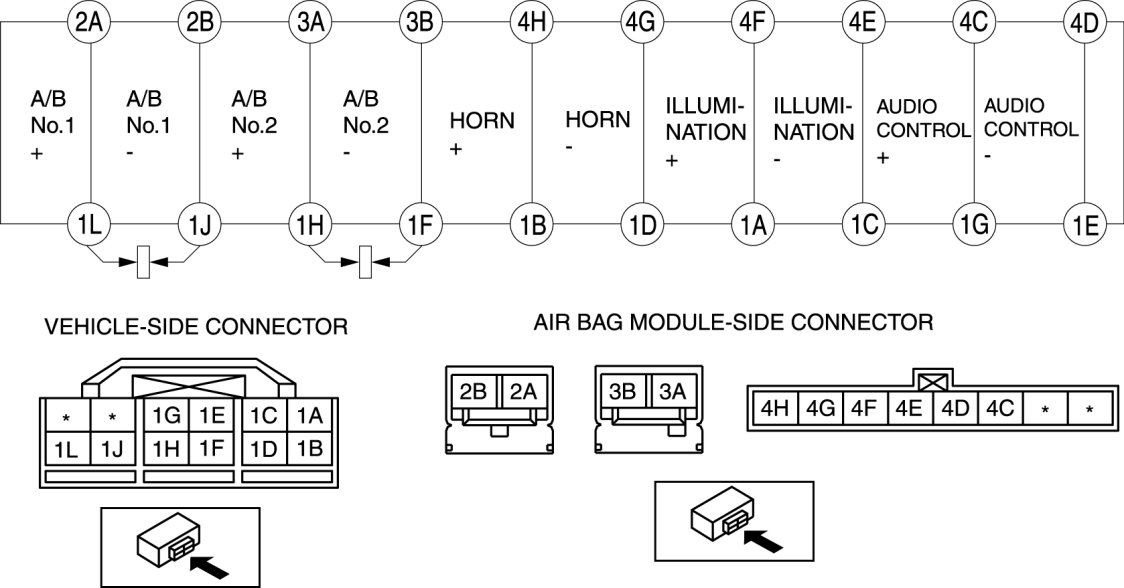

- When the vehicle-side connector for the clock spring is disconnected, terminals 1F, 1H, 1J and 1L are shorted to prevent unexpected operation (deployment) of the air bag module.
