Home >> Mazda >> 2009 >> 3 L4-2.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Locations >> Connector Locations

Connector Locations

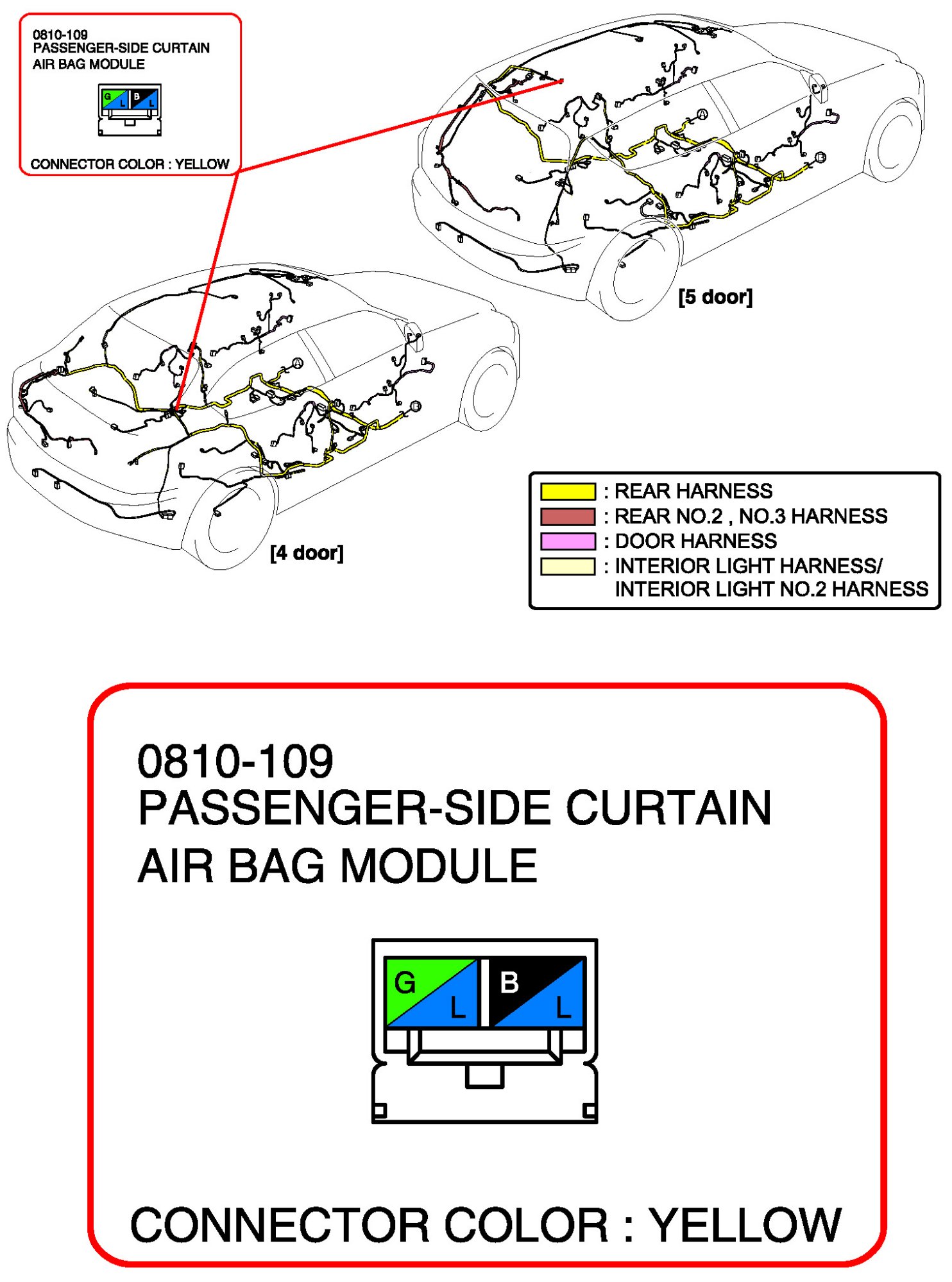

Passenger-Side Curtain Air Bag Module:

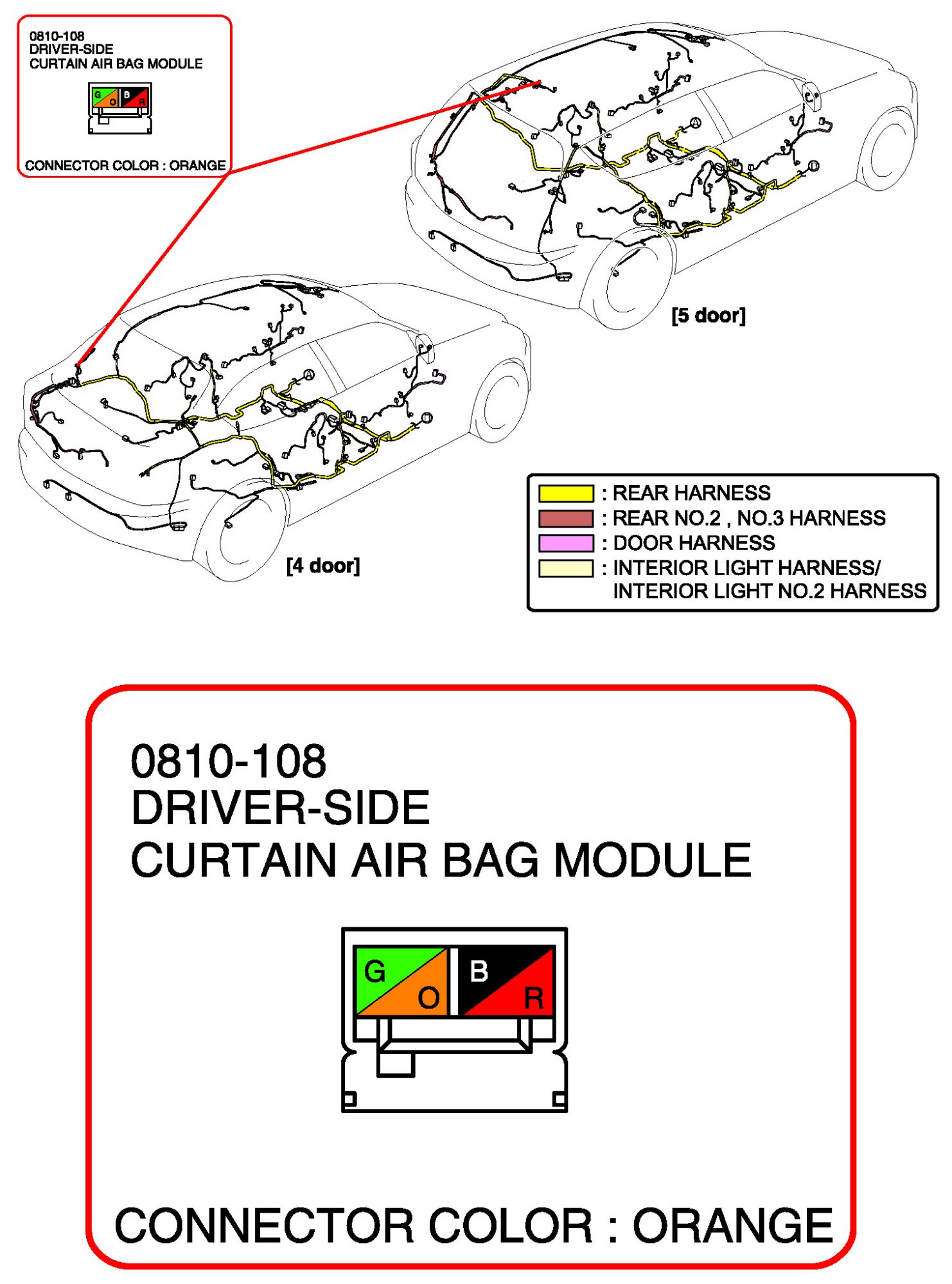

Driver-Side Curtain Air Bag Module:

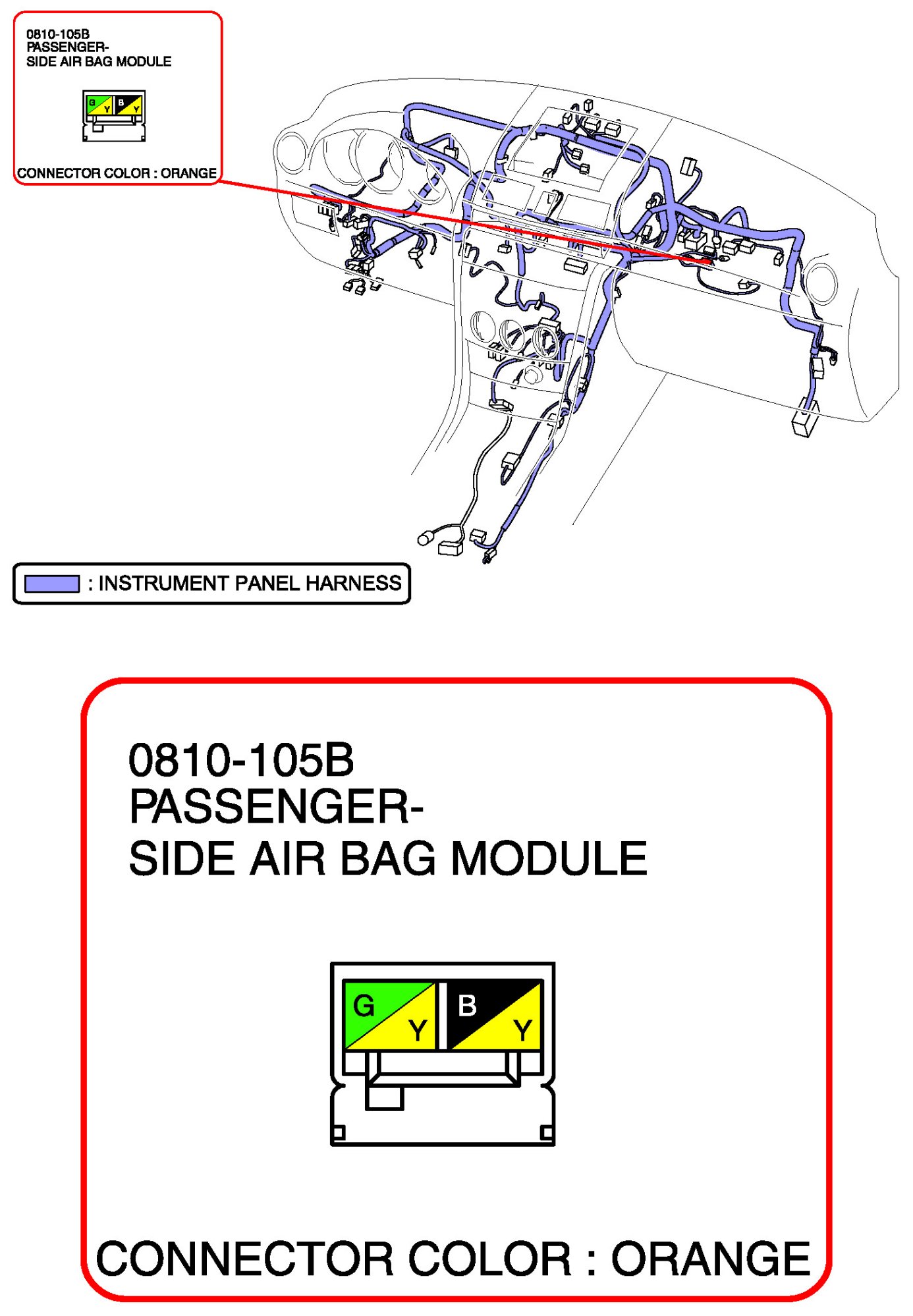

Passenger-Side Air Bag Module:

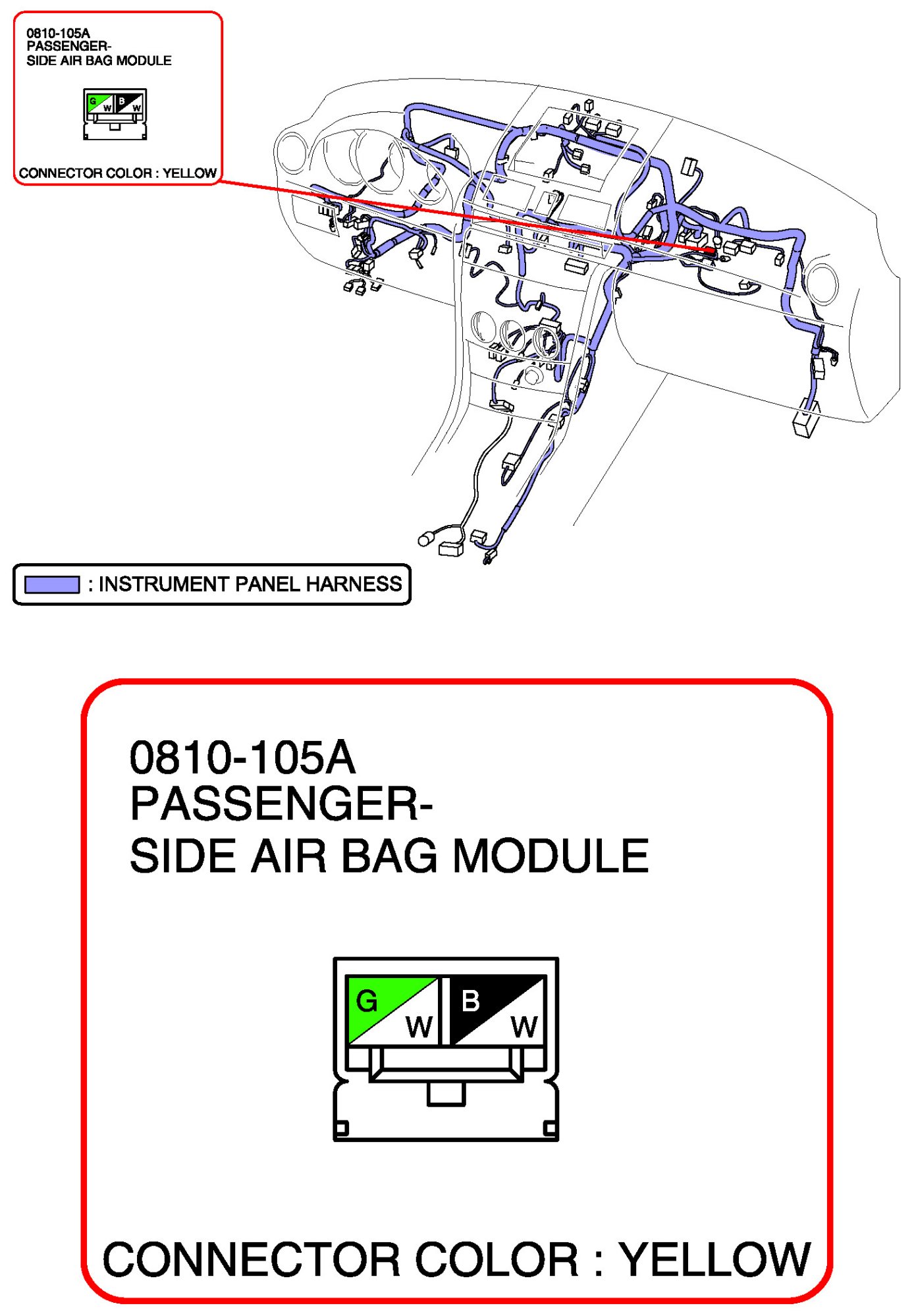

Passenger-Side Air Bag Module:



Driver-Side Air Bag Module:
