VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION [LF, L3]

1. Remove the air hose. Service and Repair

2. Disconnect the vacuum hose from the variable intake air shutter valve actuator.

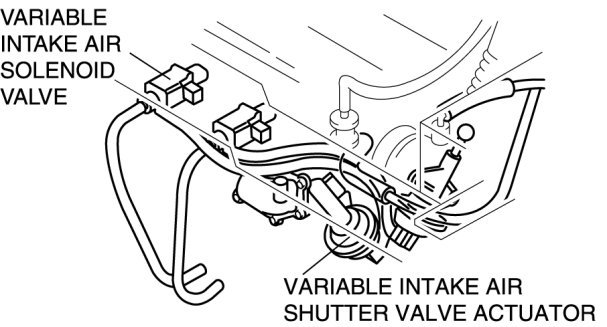

LF

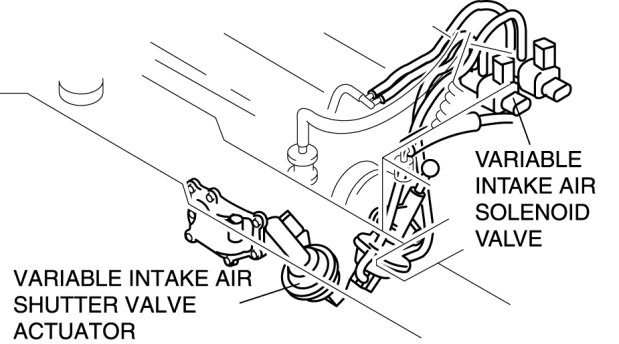

L3






3. Connect a vacuum pump to the variable intake air shutter valve actuator.

4. Apply vacuum and verify that the rod moves.

- If the rod does not move, replace the intake manifold.
