No.11 Engine Stalls/Quits, Engine Runs Rough, Misses, Buck/Jerk, Hesitation/Stumble, Surges




NO.11 ENGINE STALLS/QUITS, ENGINE RUNS ROUGH, MISSES, BUCK/JERK, HESITATION/STUMBLE, SURGES [LF, L3]

Description:

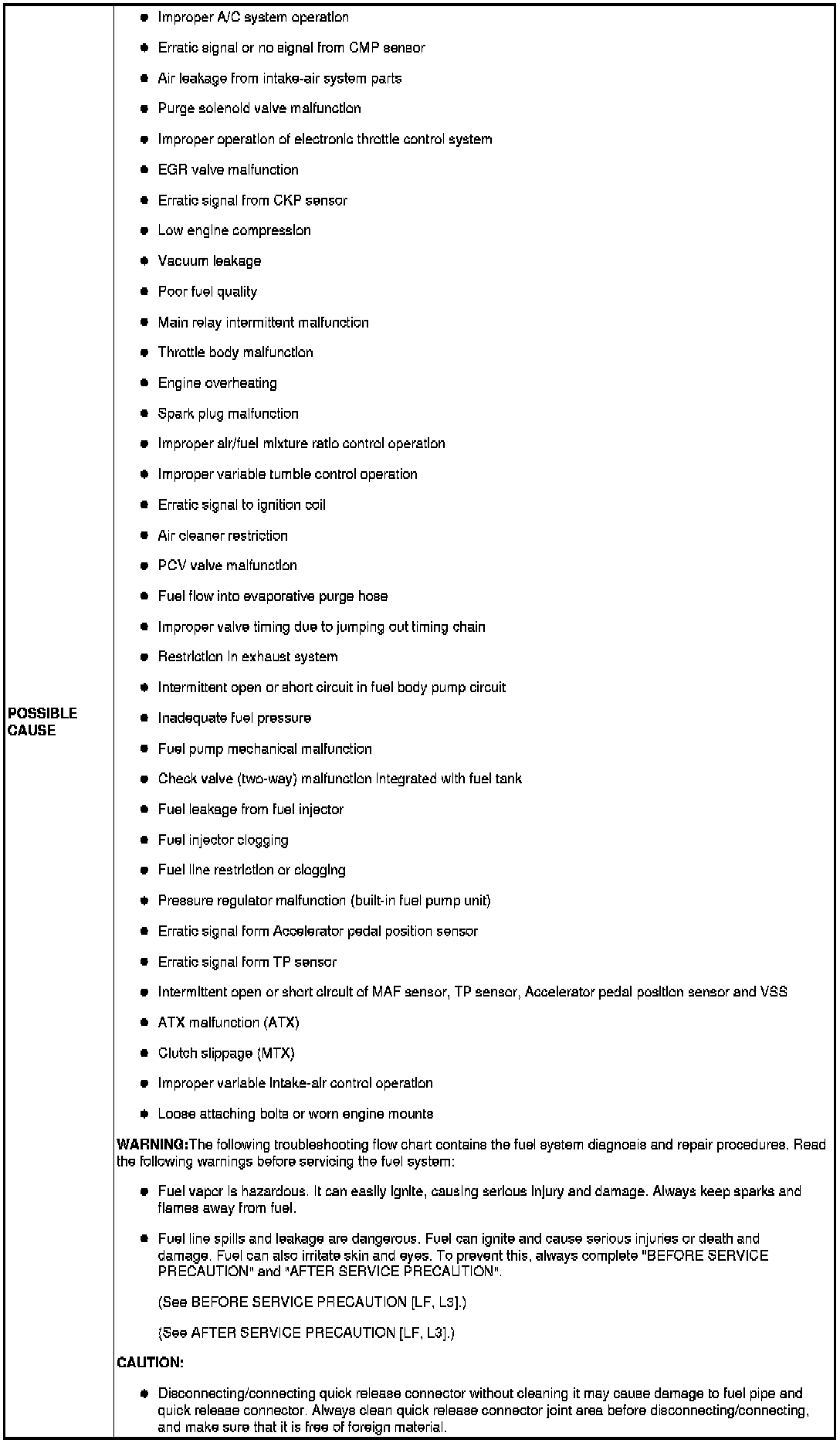

Possible Cause:






Diagnostic procedure

Step 1-Step 3:

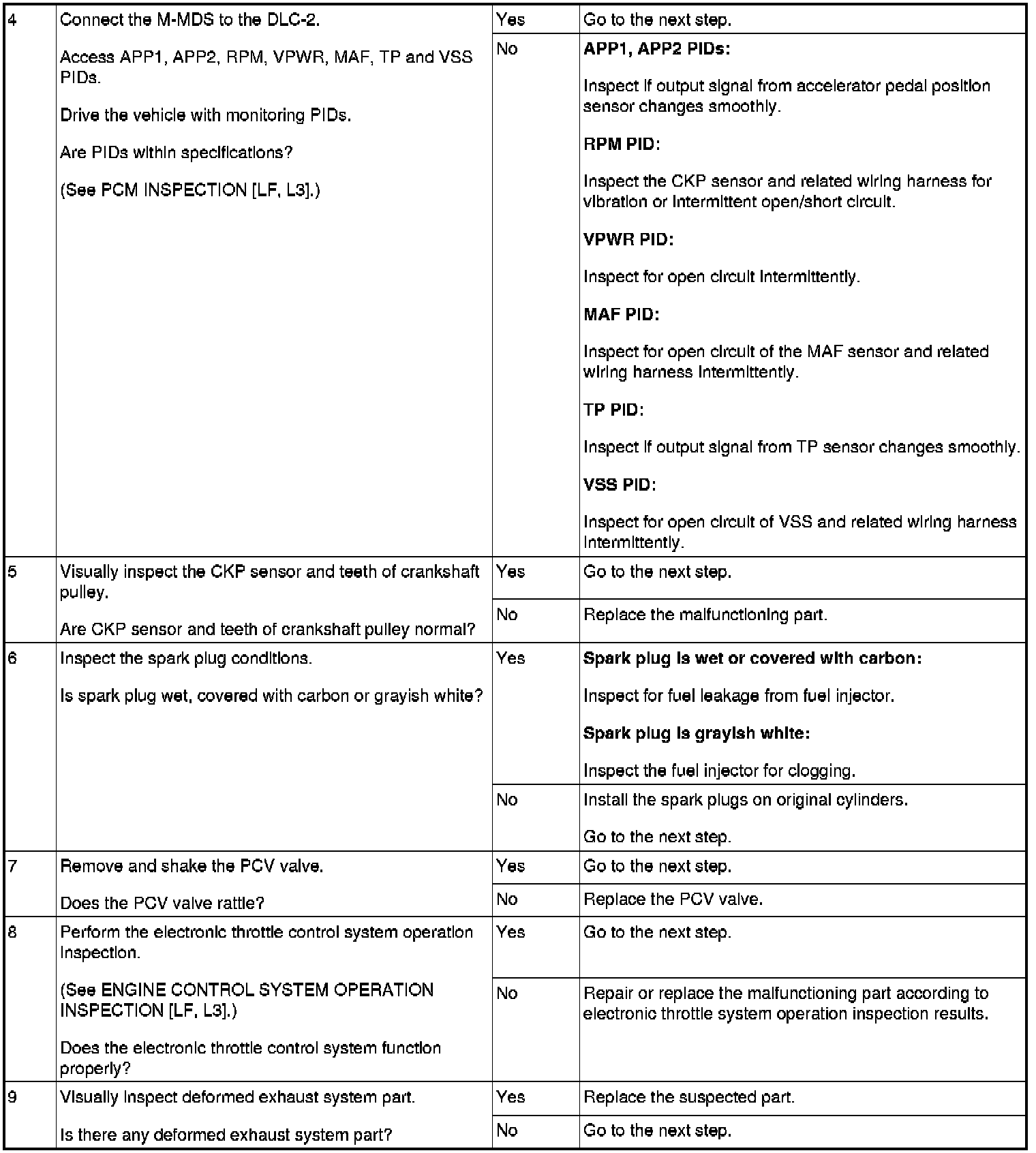

Step 4-Step 9:

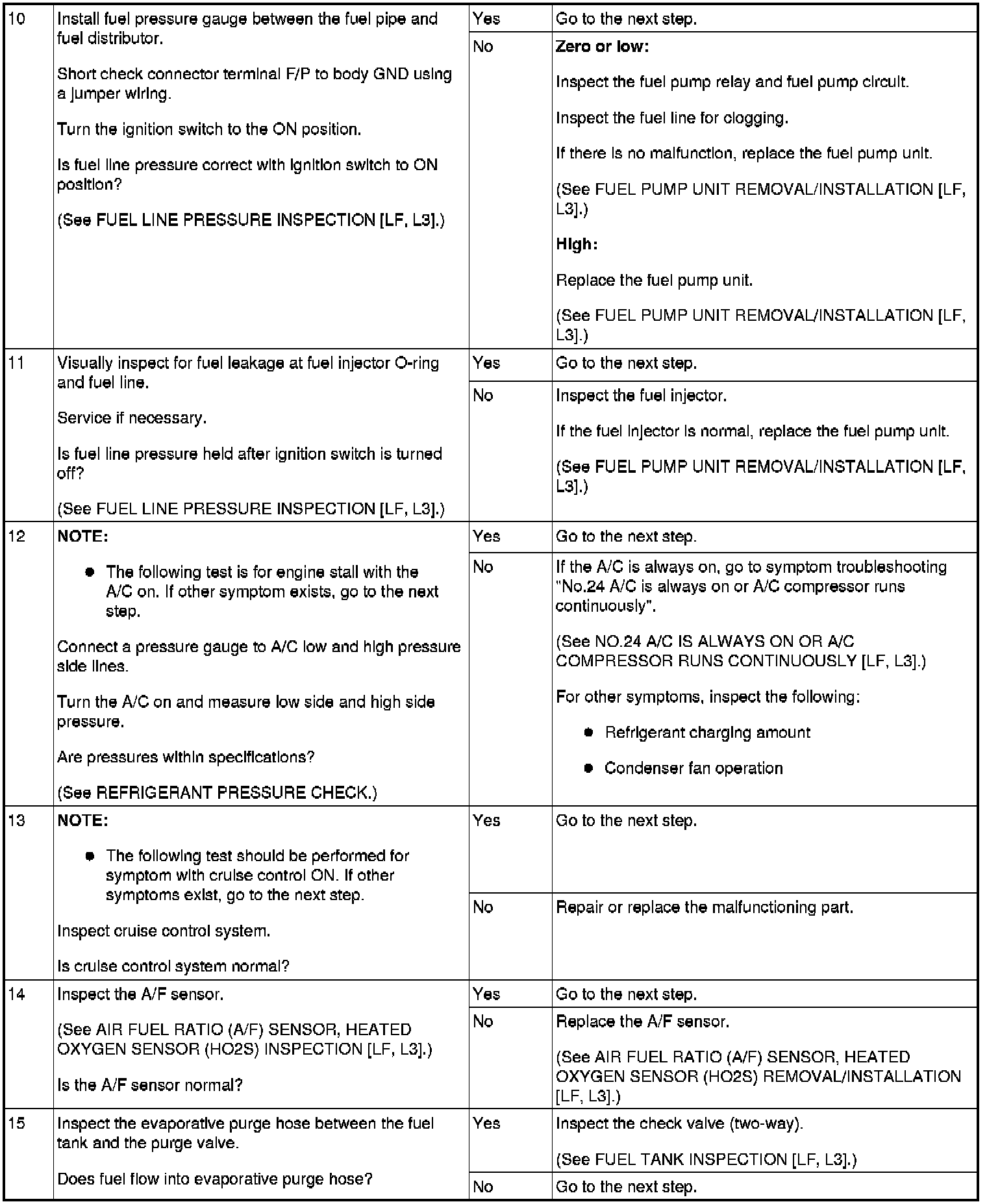

Step 10-Step 15:

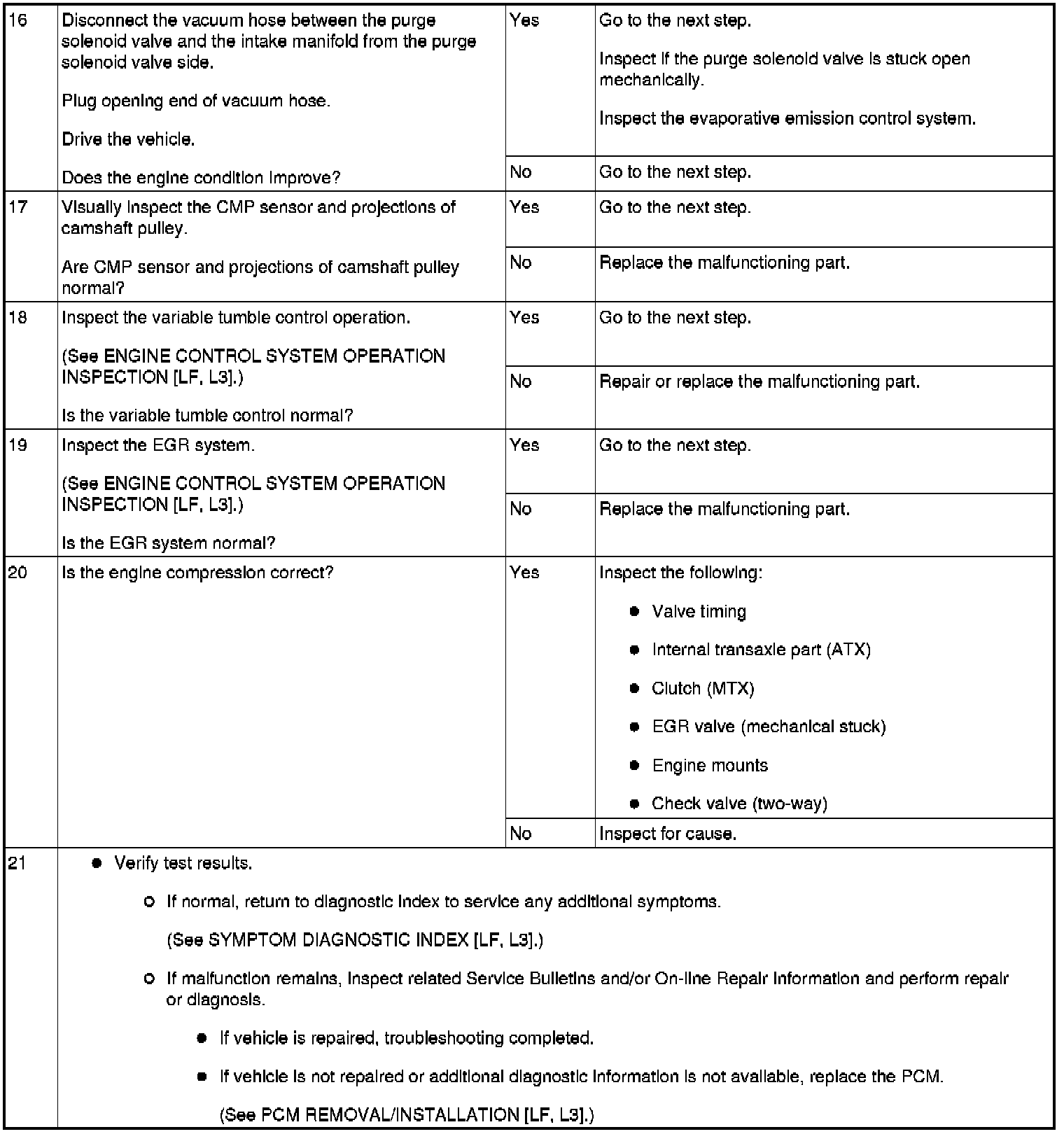

Step 16-Step 21:
