Sun Visor: Service and Repair




SUNVISOR REMOVAL/INSTALLATION

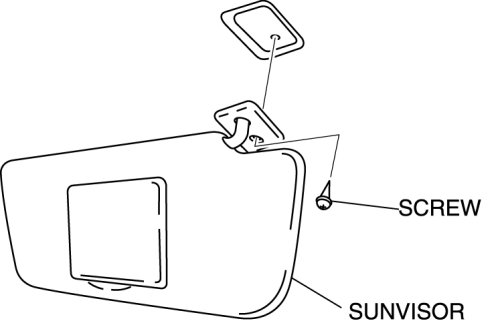

1. Remove the screw, then remove the sunvisor.

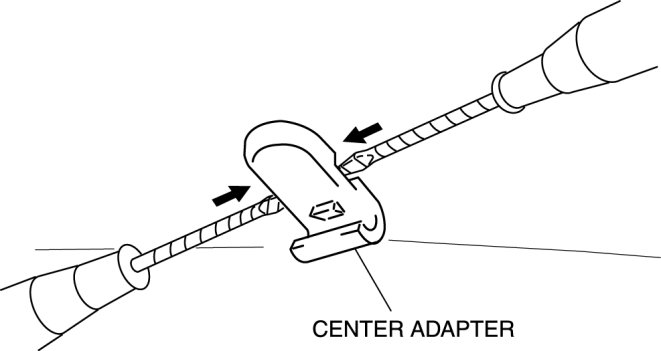

2. Press the center adapter tabs in the directions of the arrows using two tape-wrapped flathead screwdrivers and remove it.






3. Install in the reverse order of removal.
