Rear Shelf: Service and Repair

REAR PACKAGE TRIM REMOVAL/INSTALLATION

1. Remove the following parts:
a. Rear seat Rear Seat Removal/Installation

b. Rear scuff plate Rear Scuff Plate Removal/Installation

c. Tire house trim Tire House Trim Removal/Installation

d. C-pillar trim C-Pillar Trim Removal/Installation

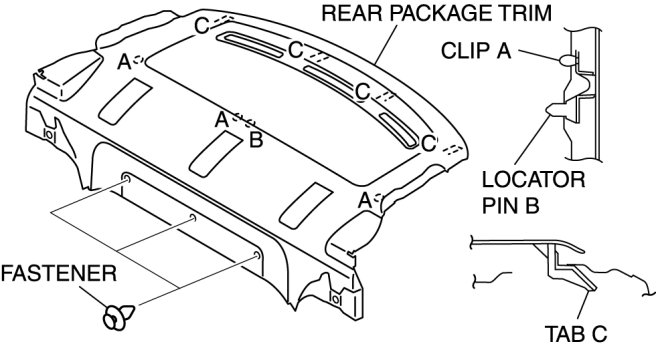

2. Remove the fasteners.






3. Pull the rear package trim upward and detach clips A and locator pin B from the body.

4. Detach tabs C from the body and remove the rear package trim.

5. Install in the reverse order of removal.
