P2274
P2274
DTC P2274 [LF, L3]
Detection Condition/Possible Cause:
Diagnostic procedure

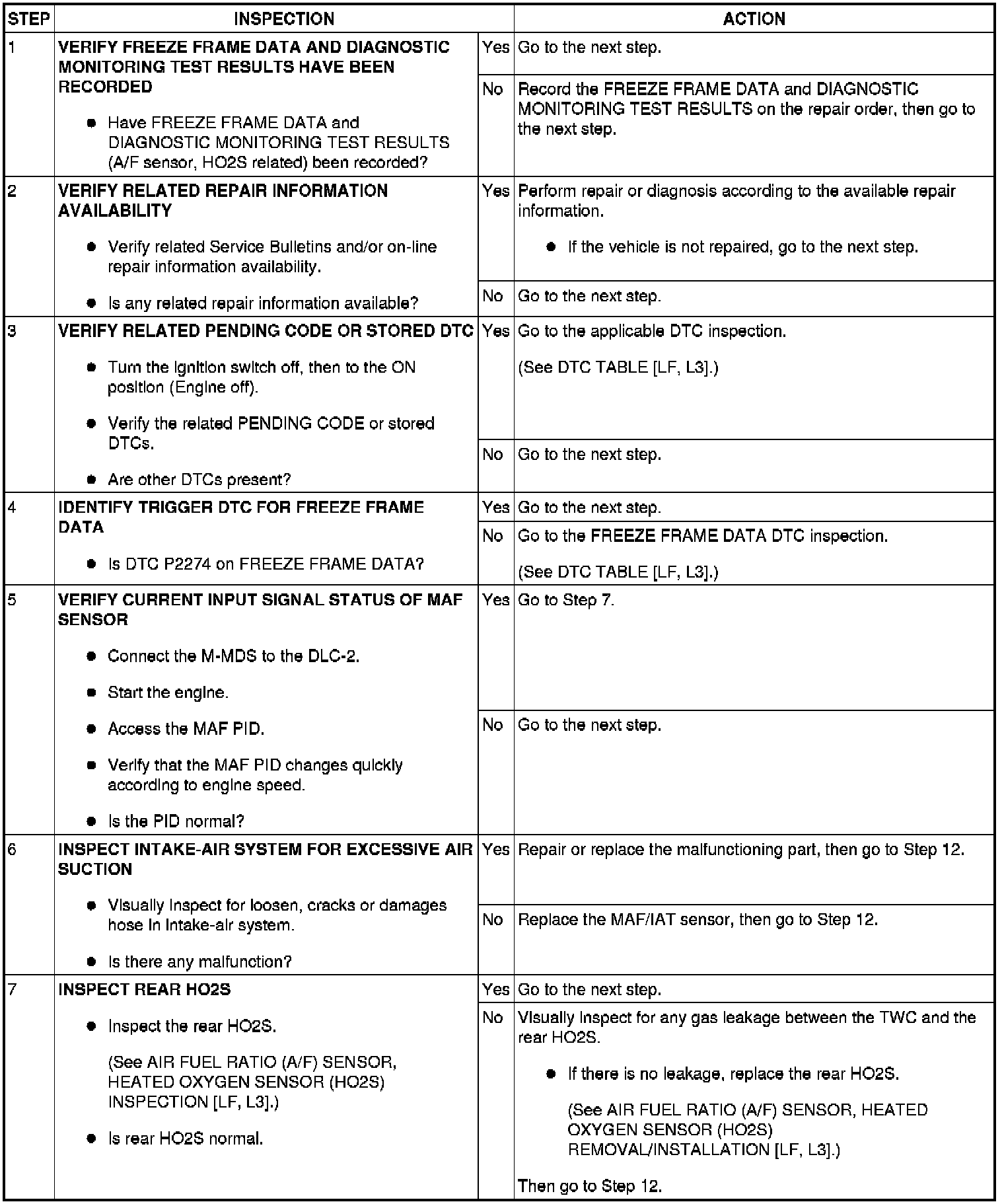

Step 1-Step 7:

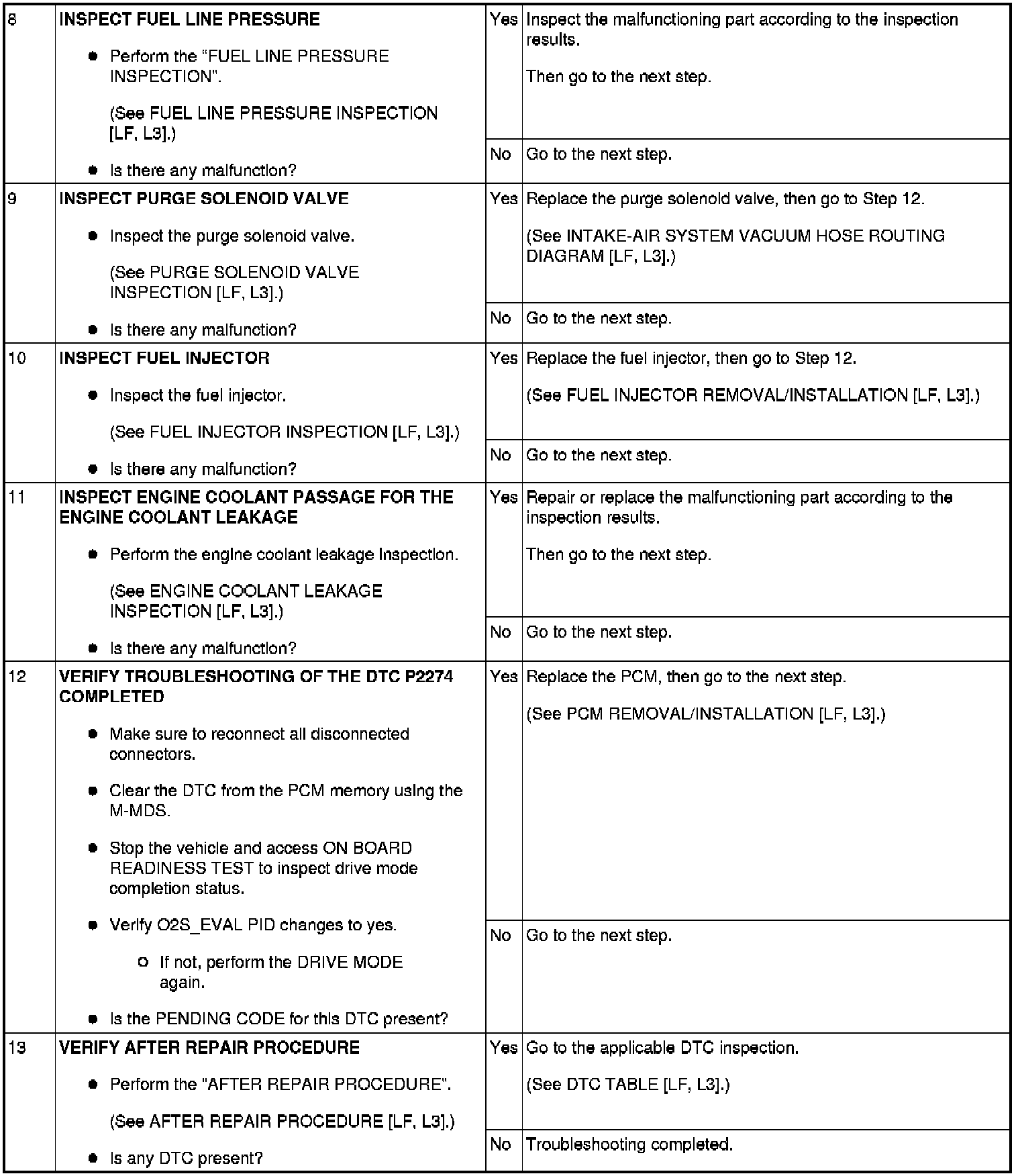

Step 8-Step 13:
