P2123

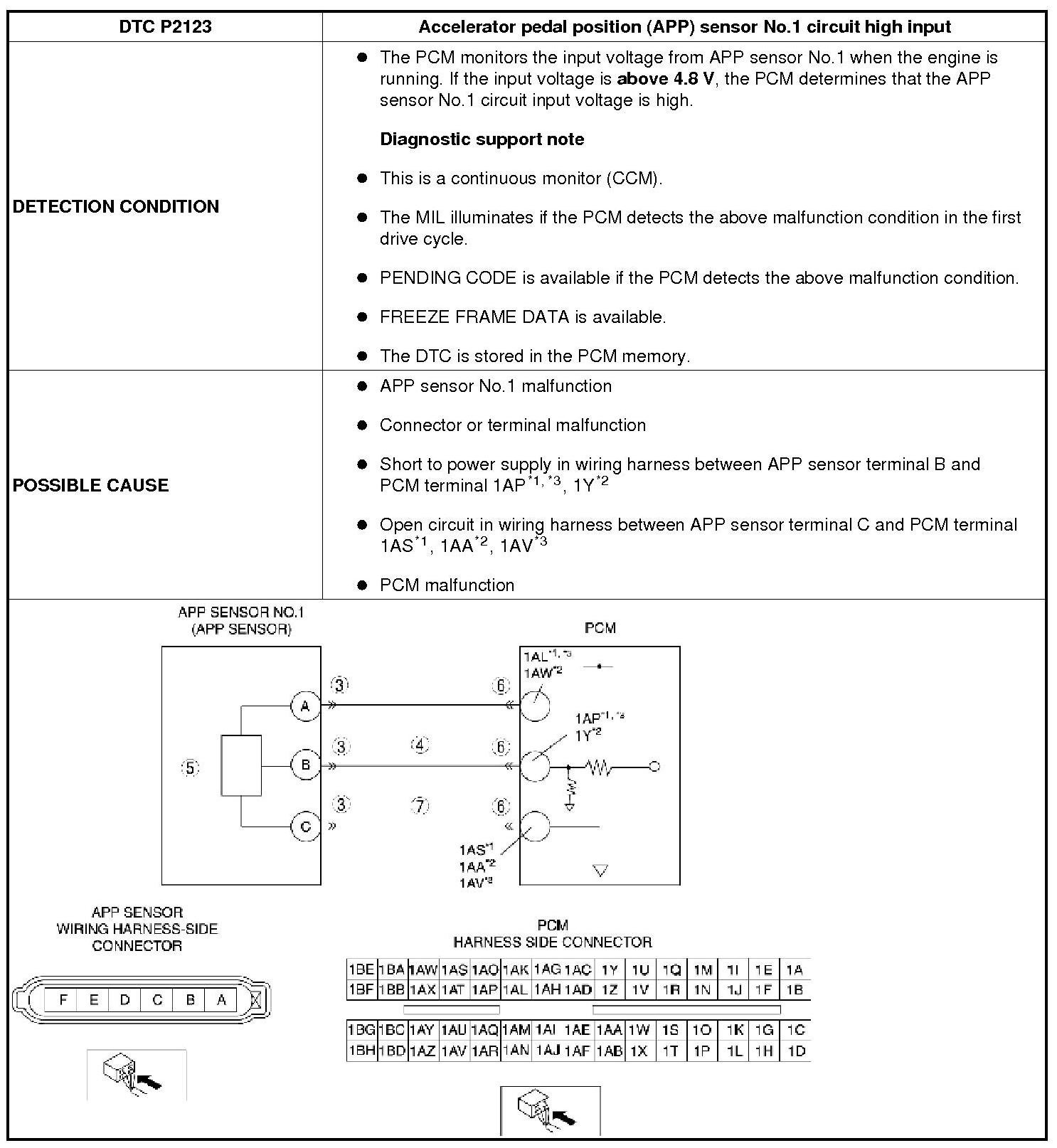

DTC P2123 [LF, L3]

Detection Condition/Possible Cause:





*1
California emission regulation applicable model
*2
Except for California emission regulation applicable model with LF ATX
*3
Except for California emission regulation applicable model with LF MTX, L3

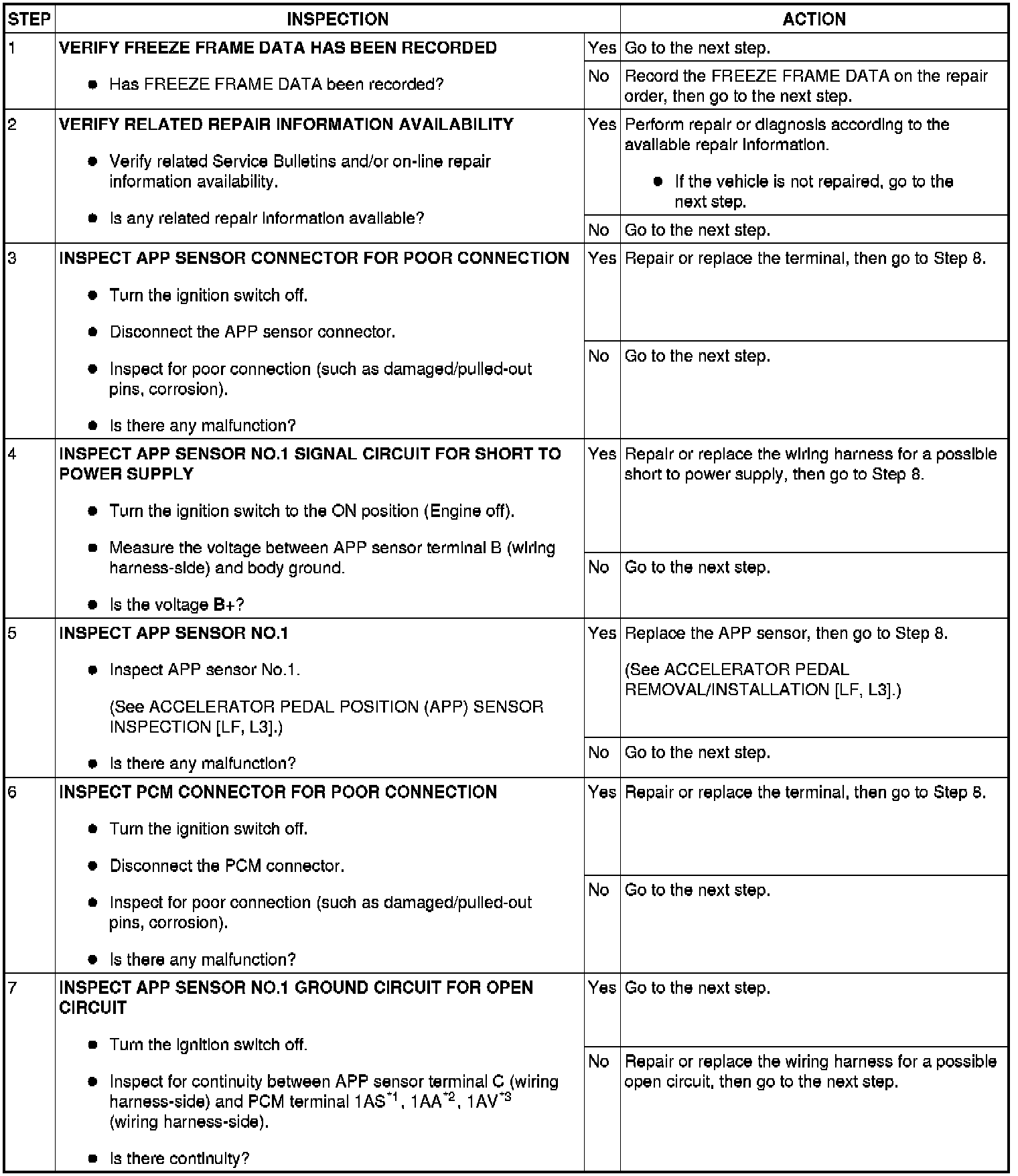

Diagnostic procedure

Step 1-Step 7:





Step 8-Step 9:






*1
California emission regulation applicable model
*2
Except for California emission regulation applicable model with LF ATX
*3
Except for California emission regulation applicable model with LF MTX, L3
