P2004

DTC P2004 [LF, L3]

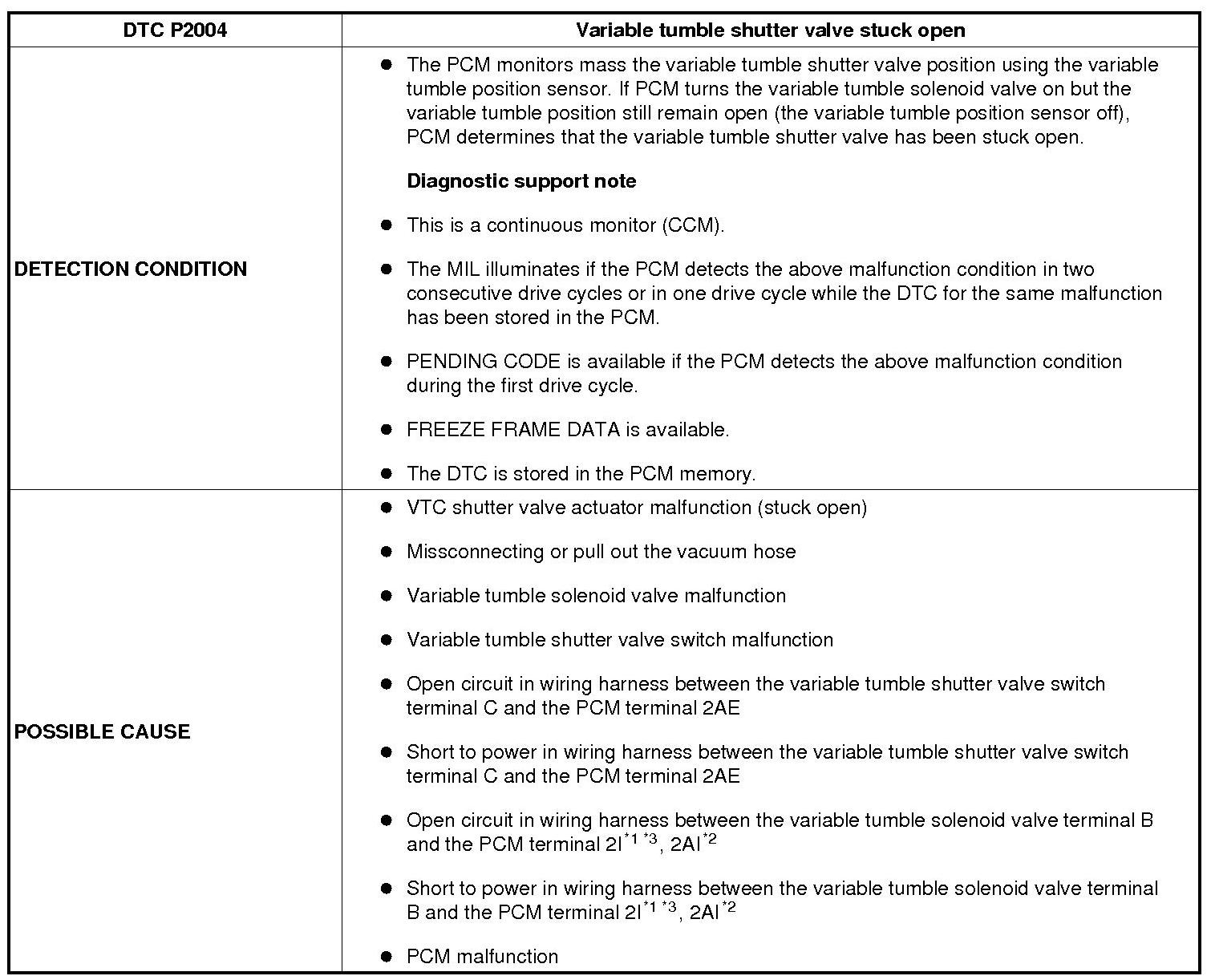

Detection Condition/Possible Cause (Part 1):

Detection Condition/Possible Cause (Part 2):

*1
California emission regulation applicable model
*2
Except for California emission regulation applicable model with LF ATX
*3
Except for California emission regulation applicable model with LF MTX, L3

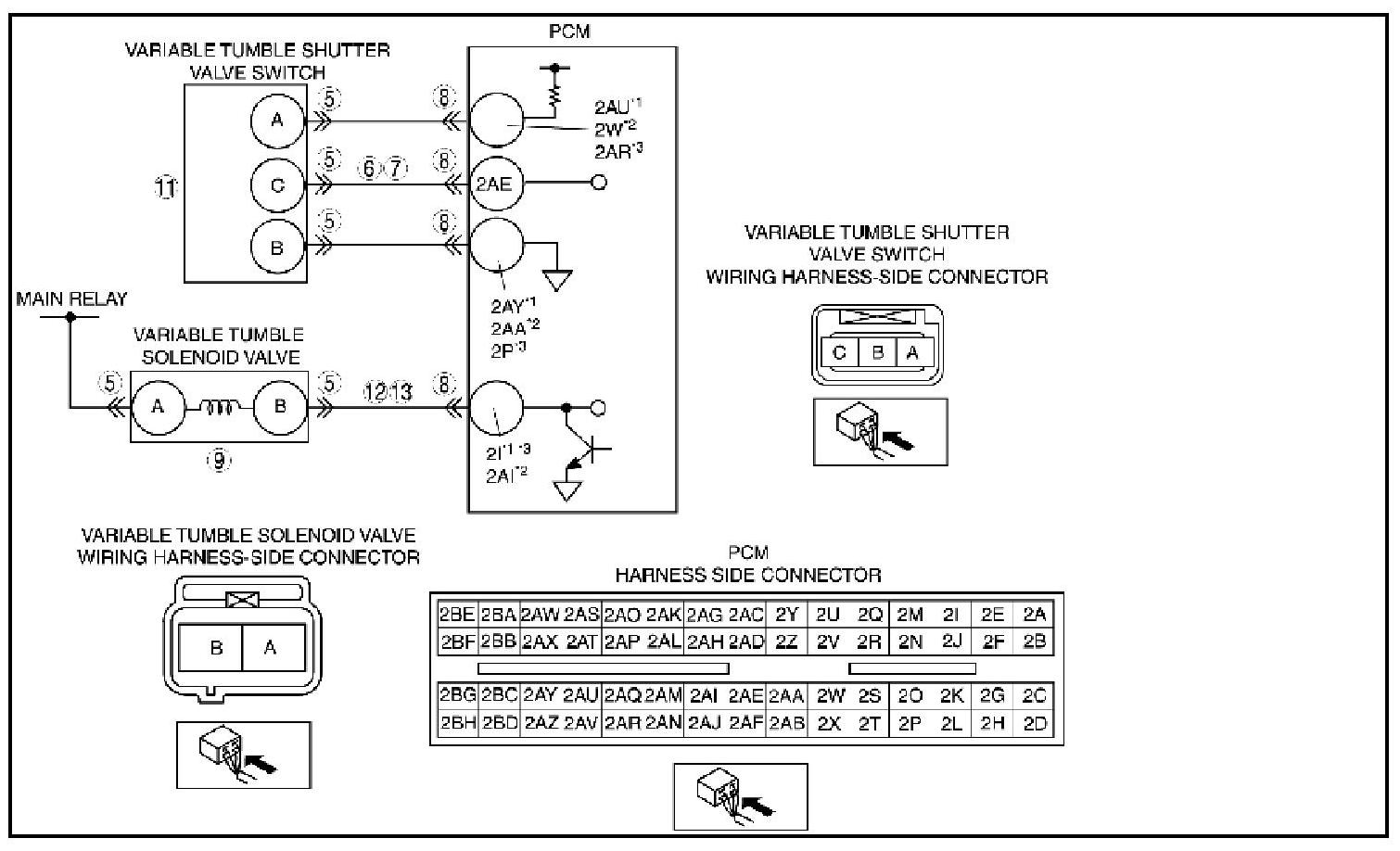

Diagnostic procedure

P2004

Detection Condition/Possible Cause (Part 1):

Detection Condition/Possible Cause (Part 2):

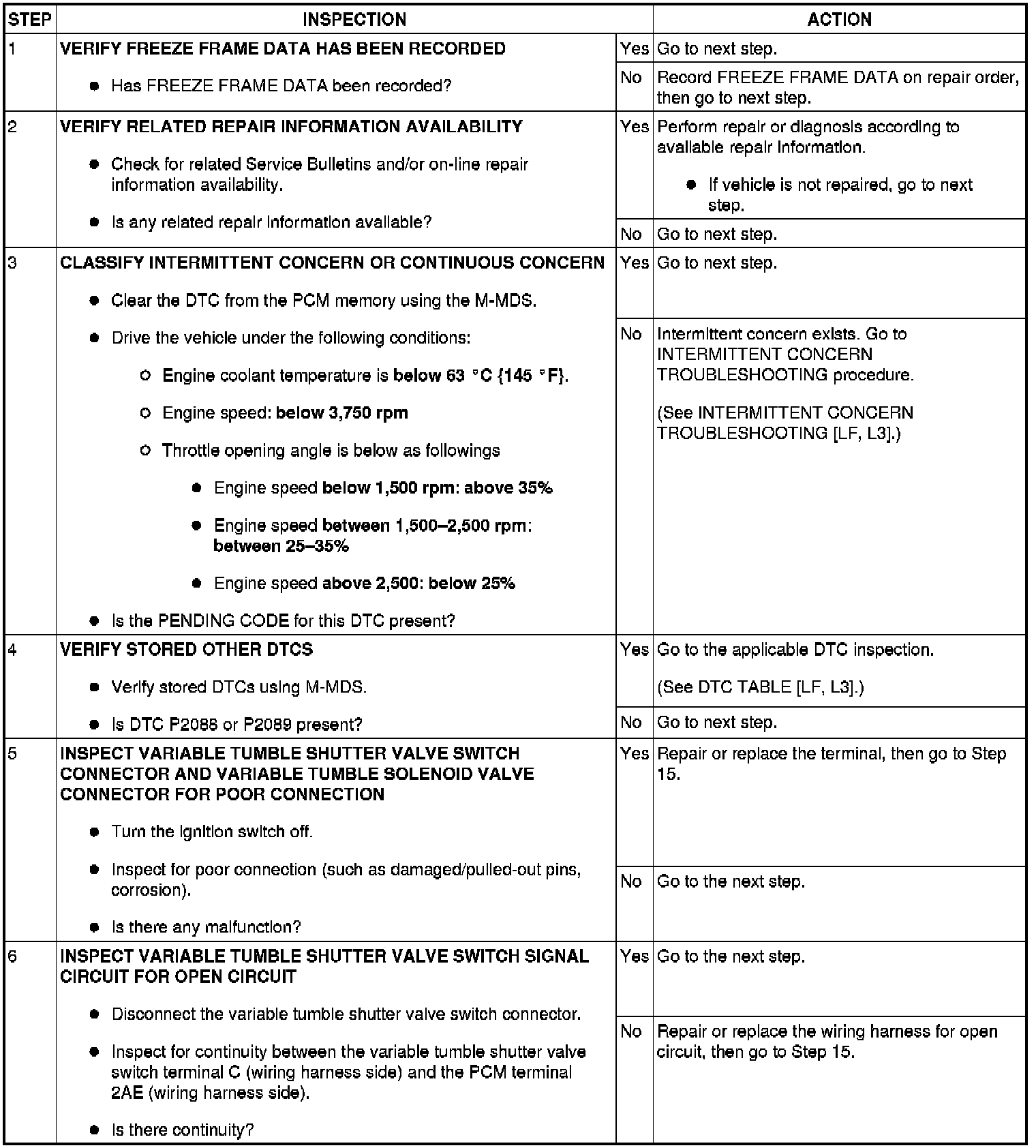

Step 1-Step 6:

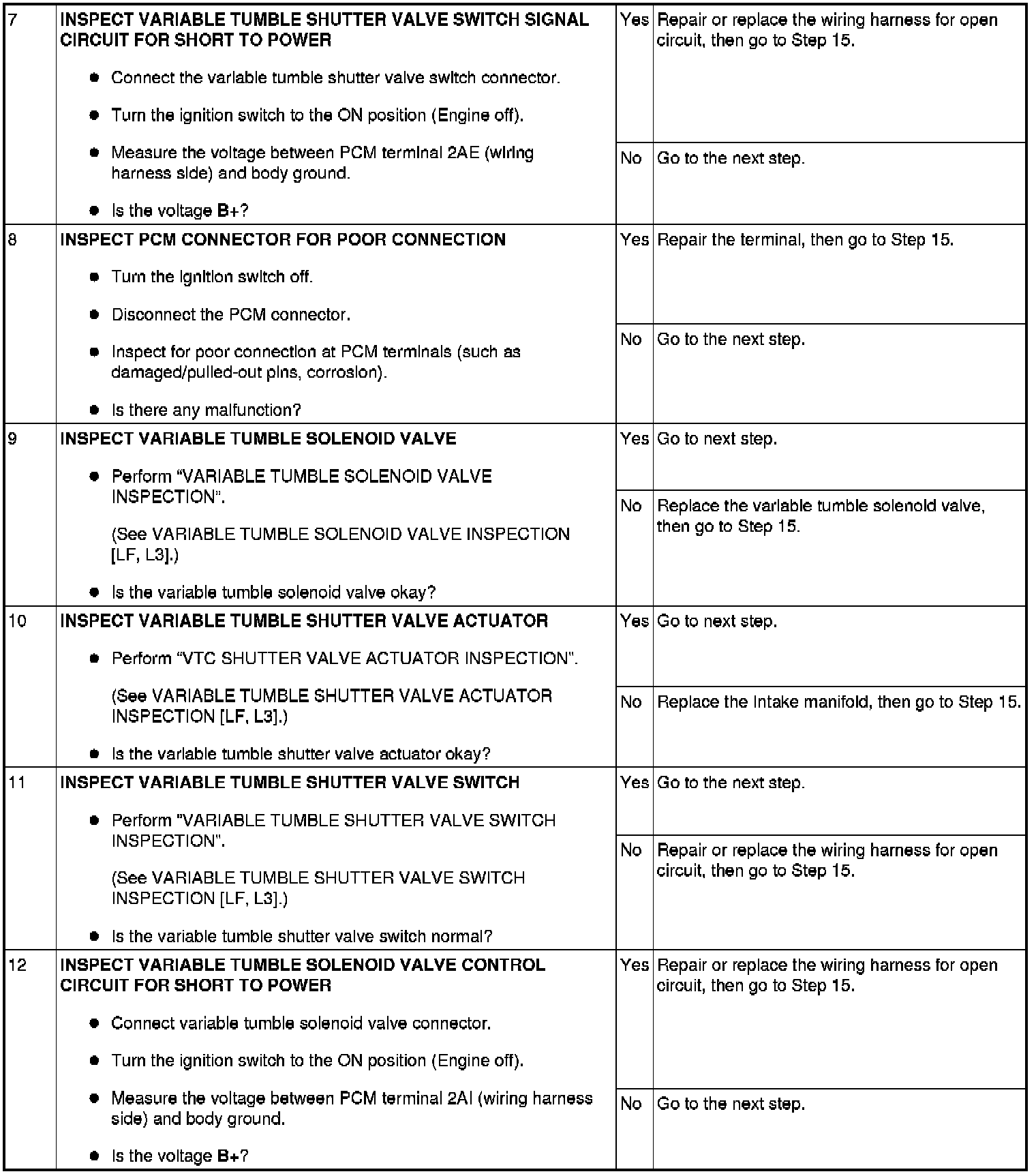

Step 7-Step 12:

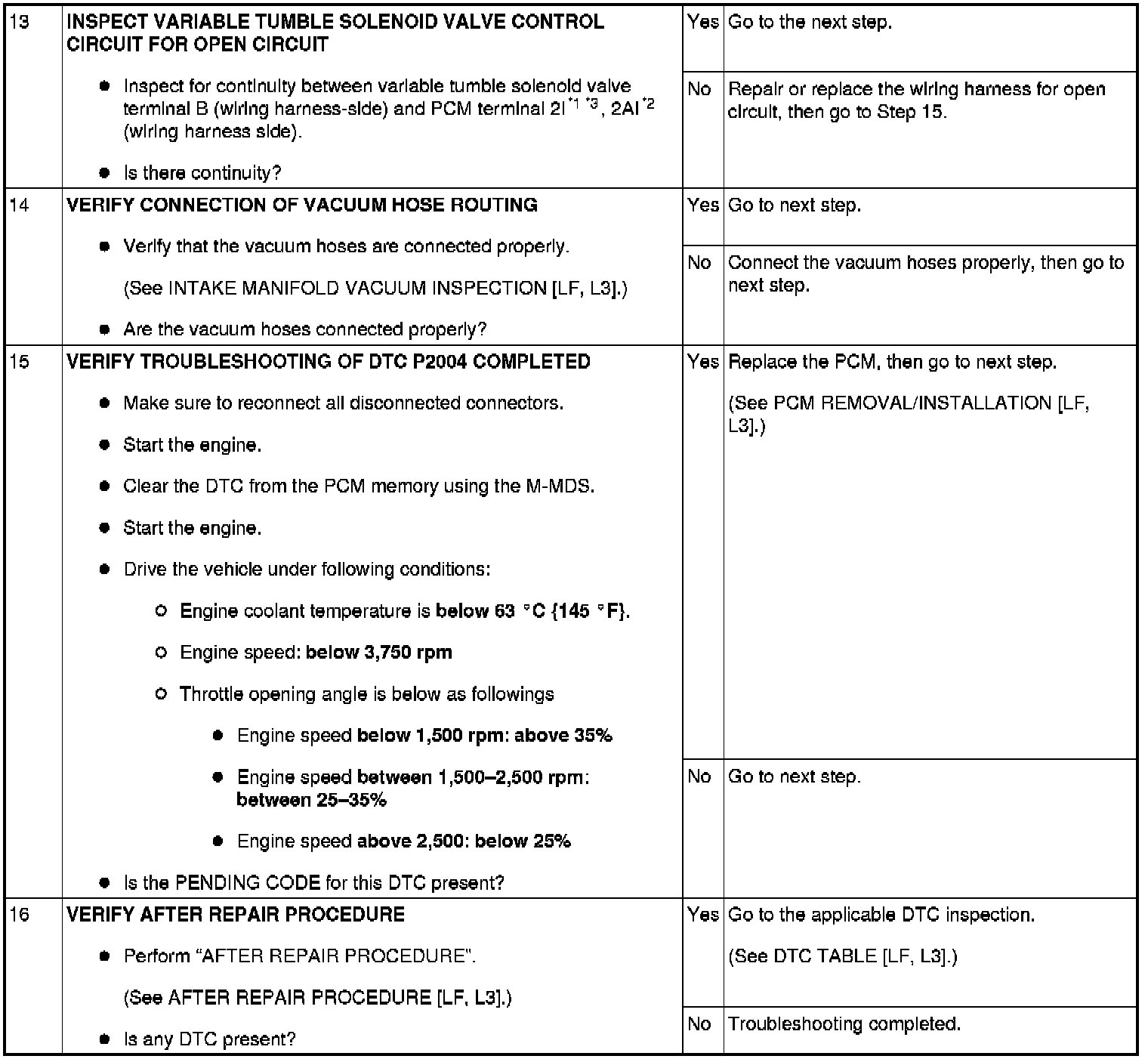

Step 13-Step 16:
