SECURITY LIGHT 15, DTC B1601/P1260 [IMMOBILIZER SYSTEM]
Detection Condition/Possible Cause:

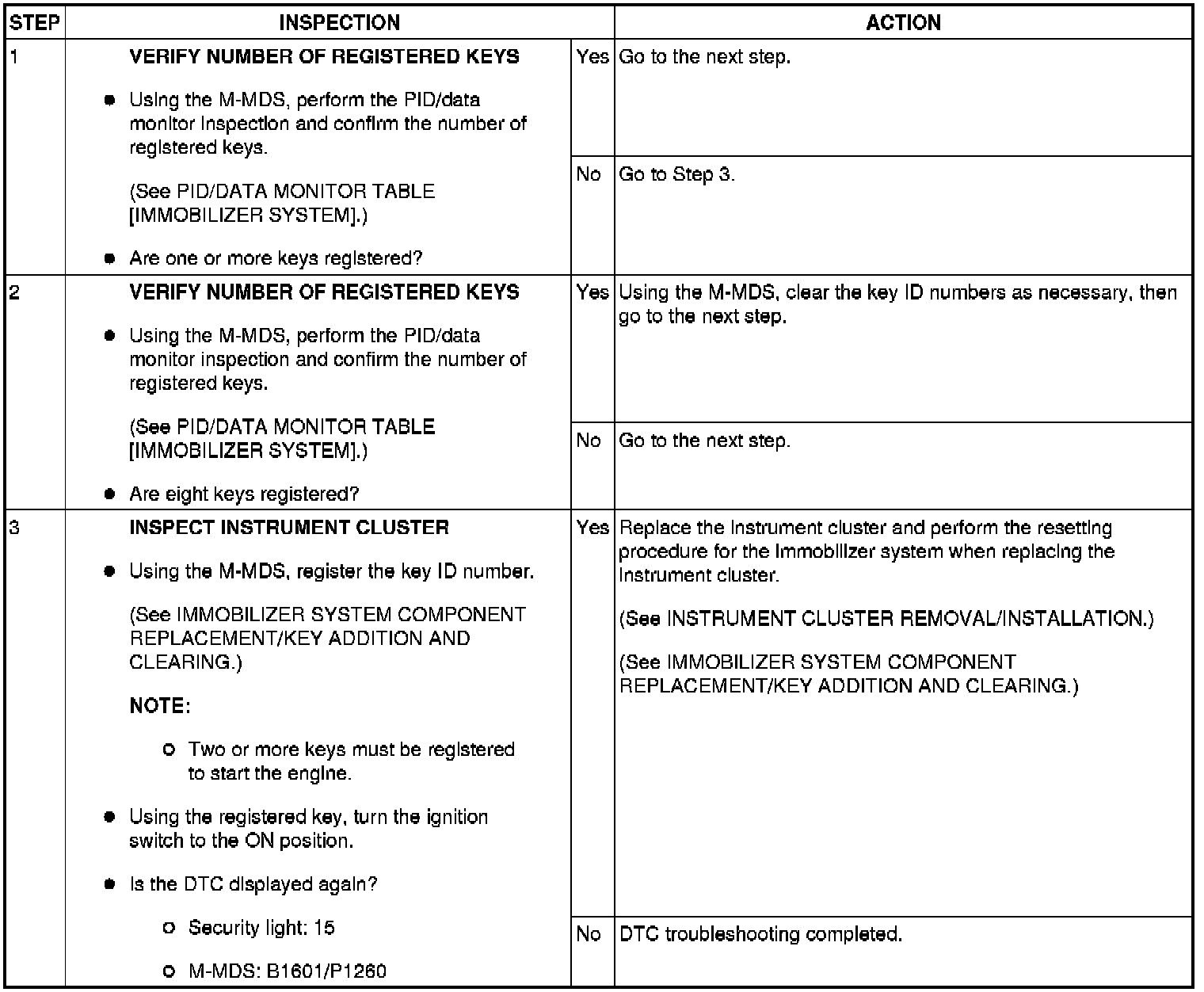

Diagnostic Procedure
Step 1-Step 3:
