P0500
P0500
DTC P0500 [LF, L3]

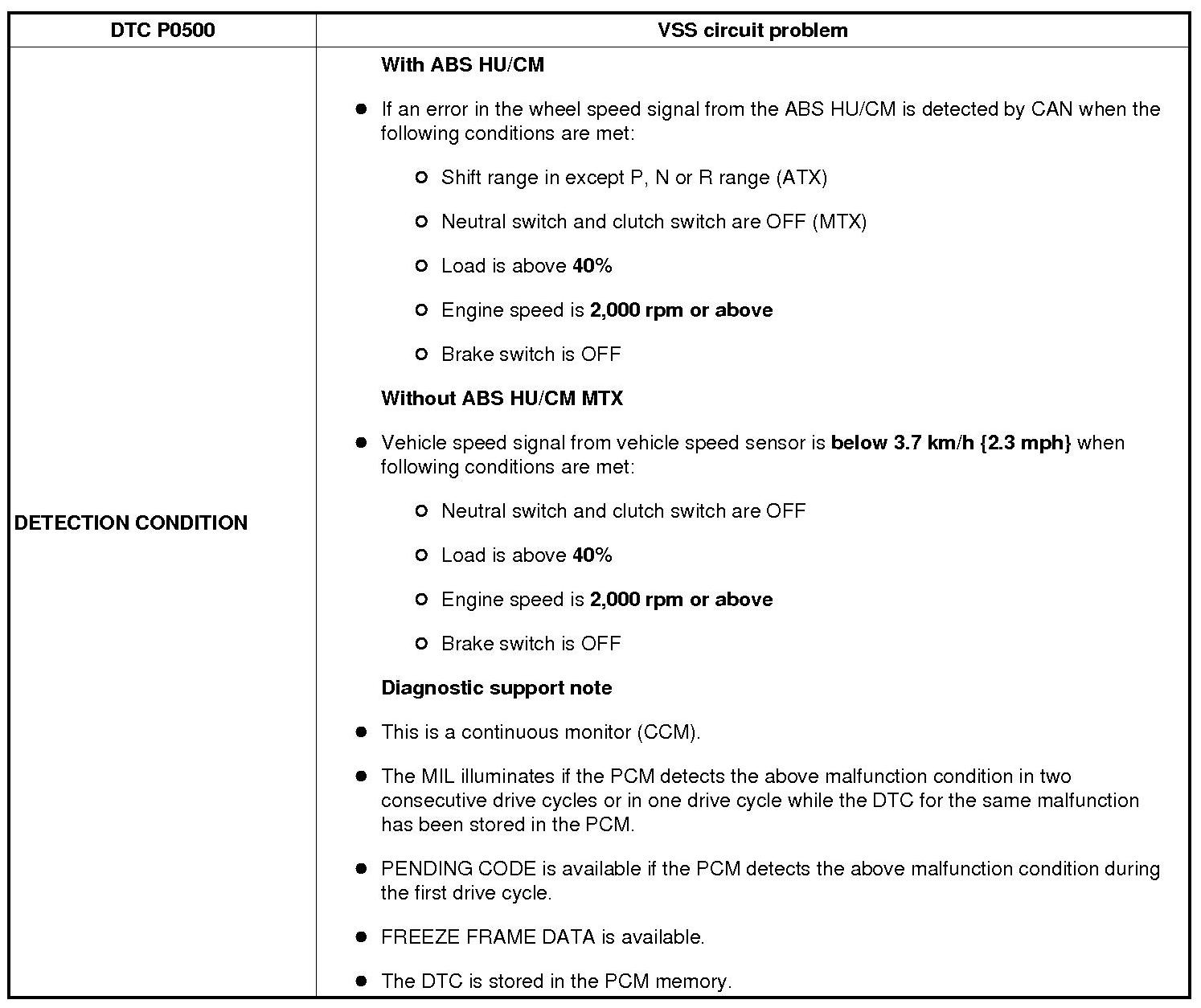

Detection Condition:

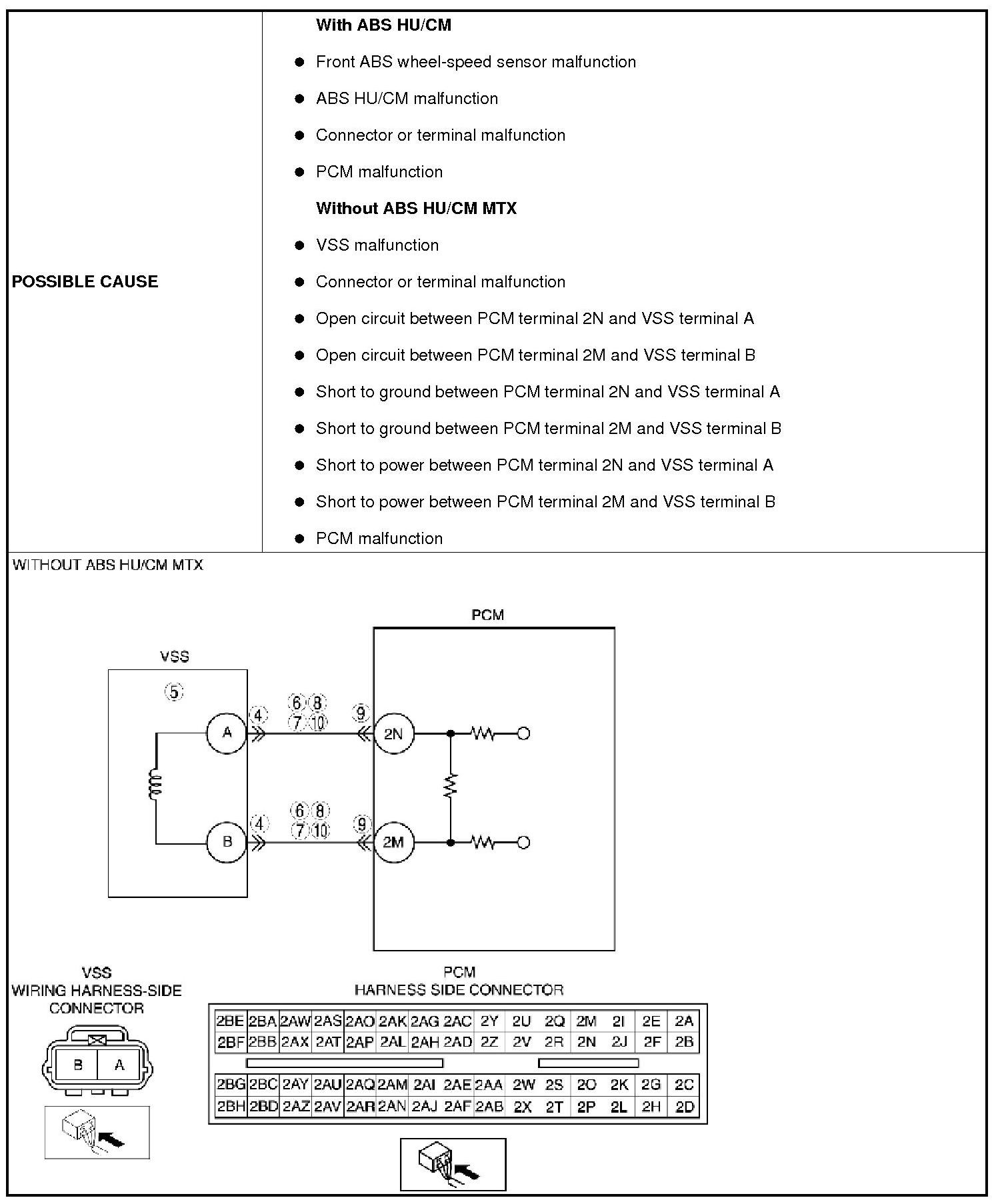

Possible Cause:
Diagnostic procedure

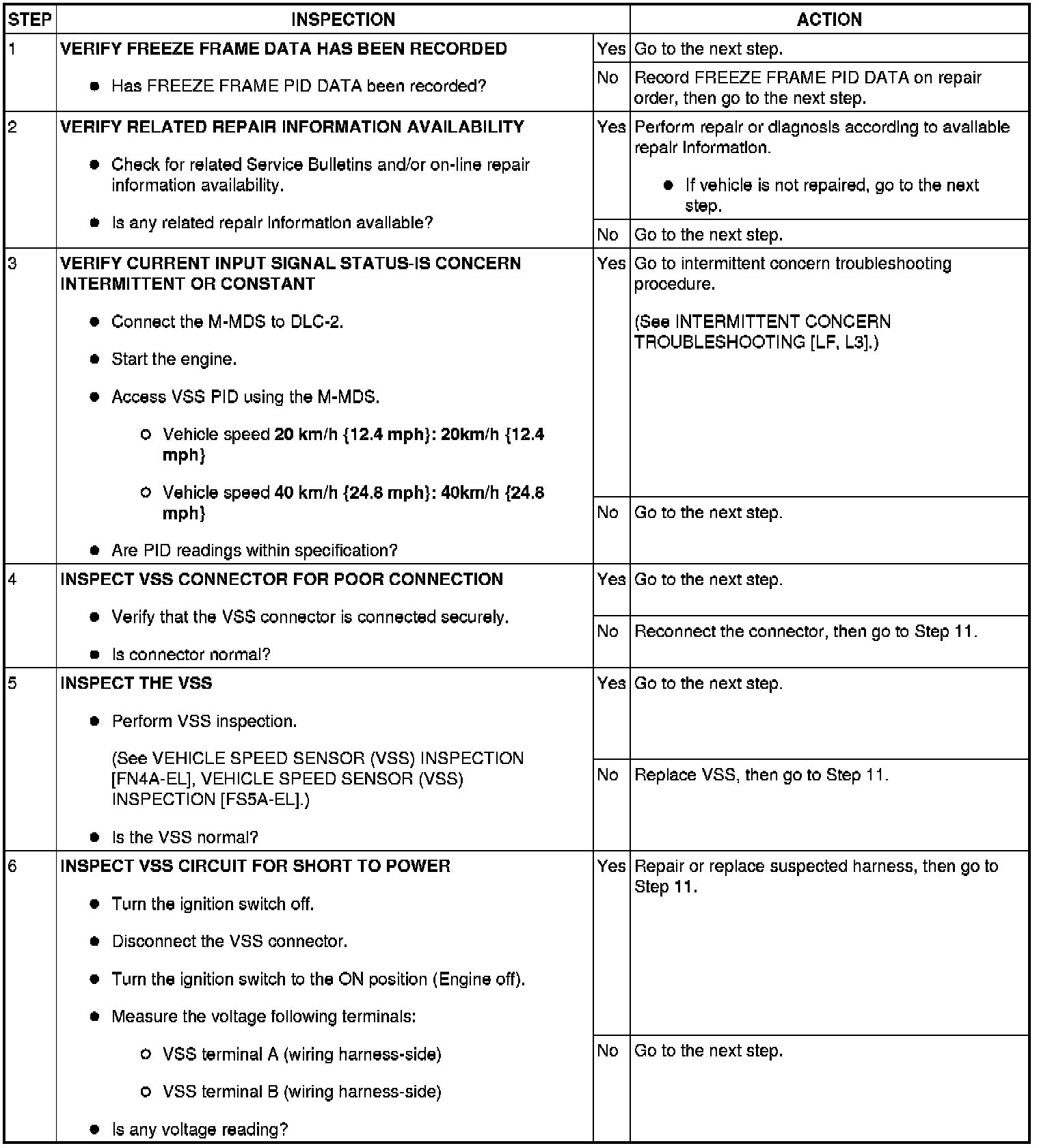

Step 1-Step 6:

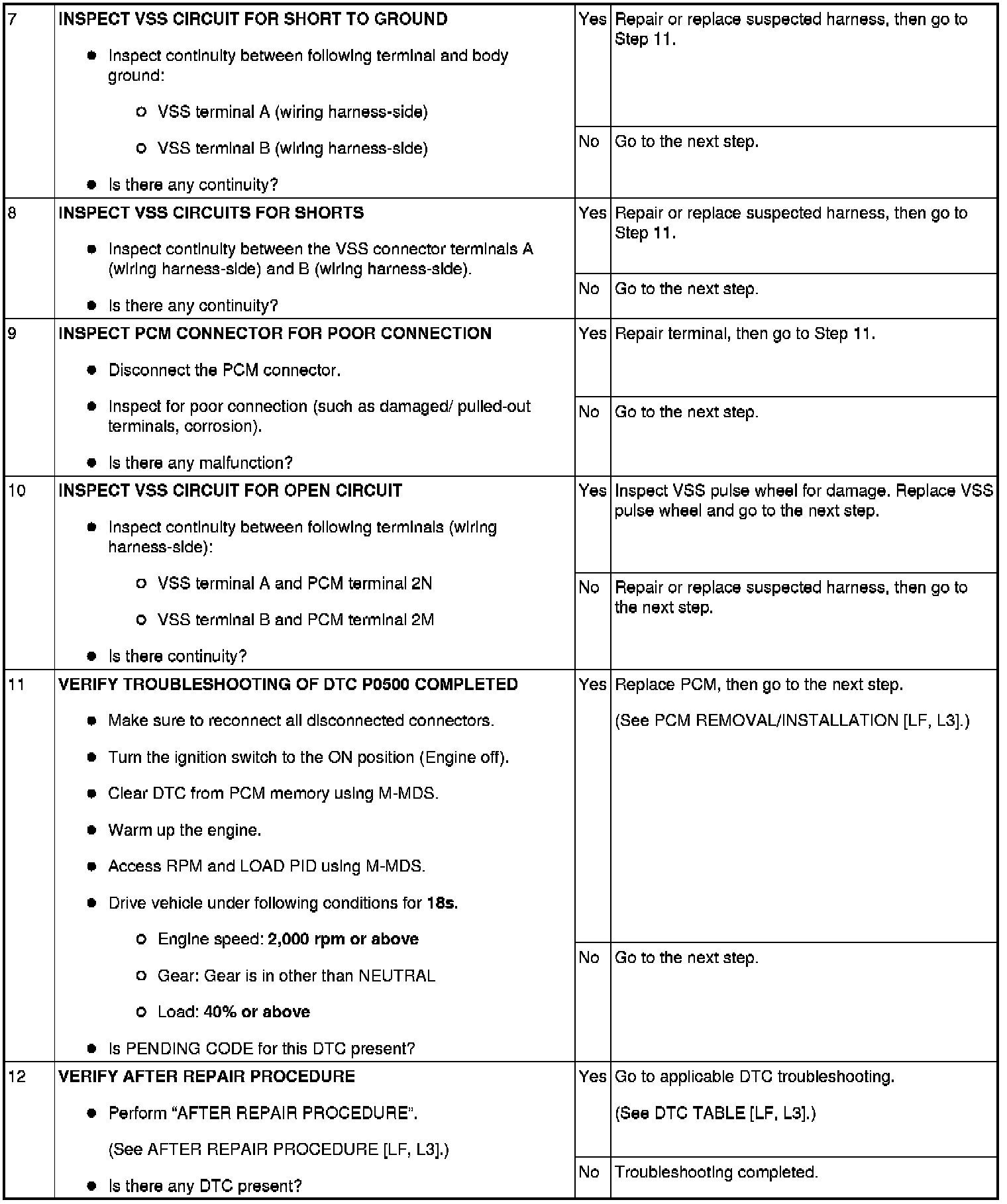

Step 7-Step 12:
