P0455




DTC P0442, P0455, P0456 [LF, L3]

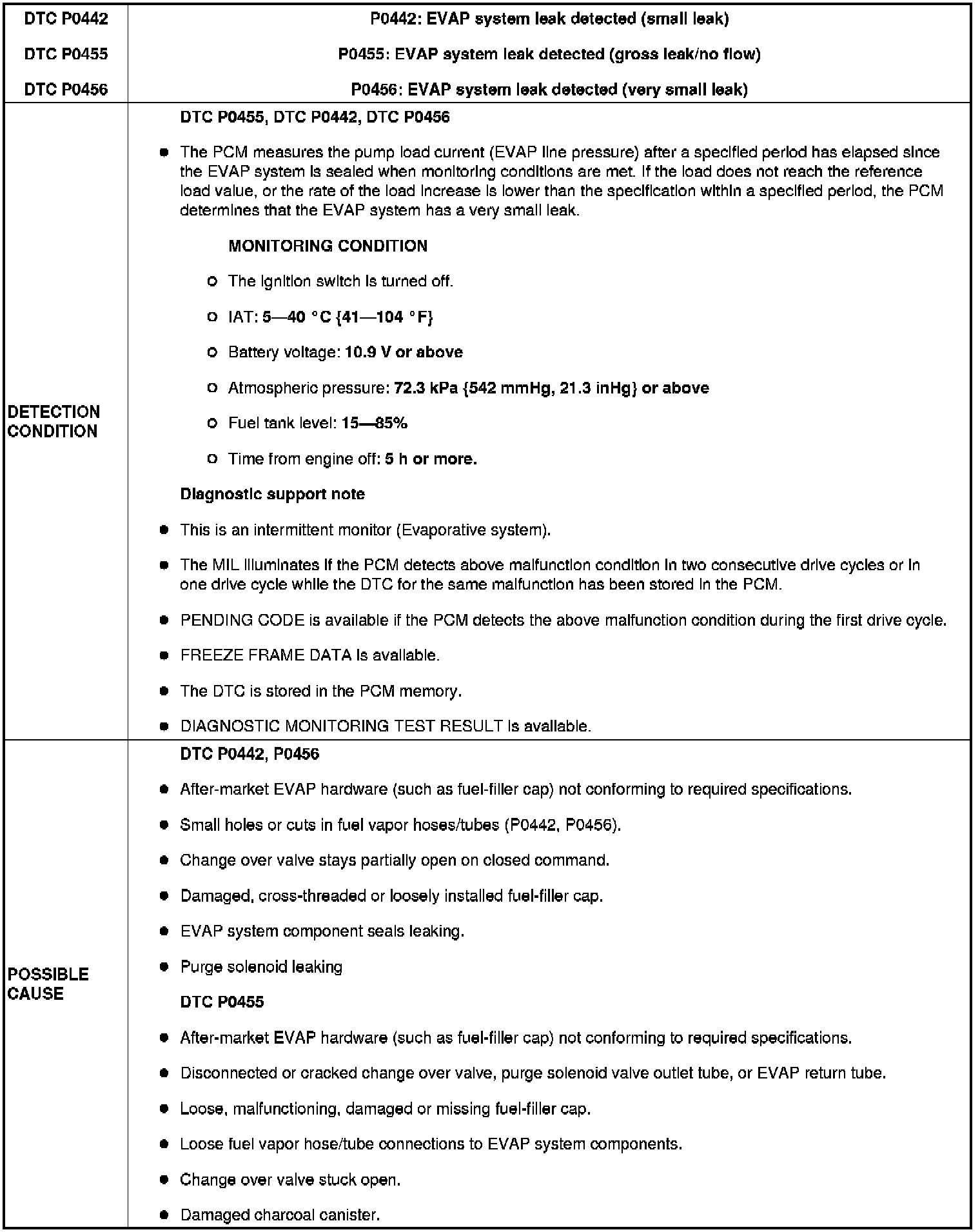

Detection Condition/Possible Cause:





Diagnostic procedure

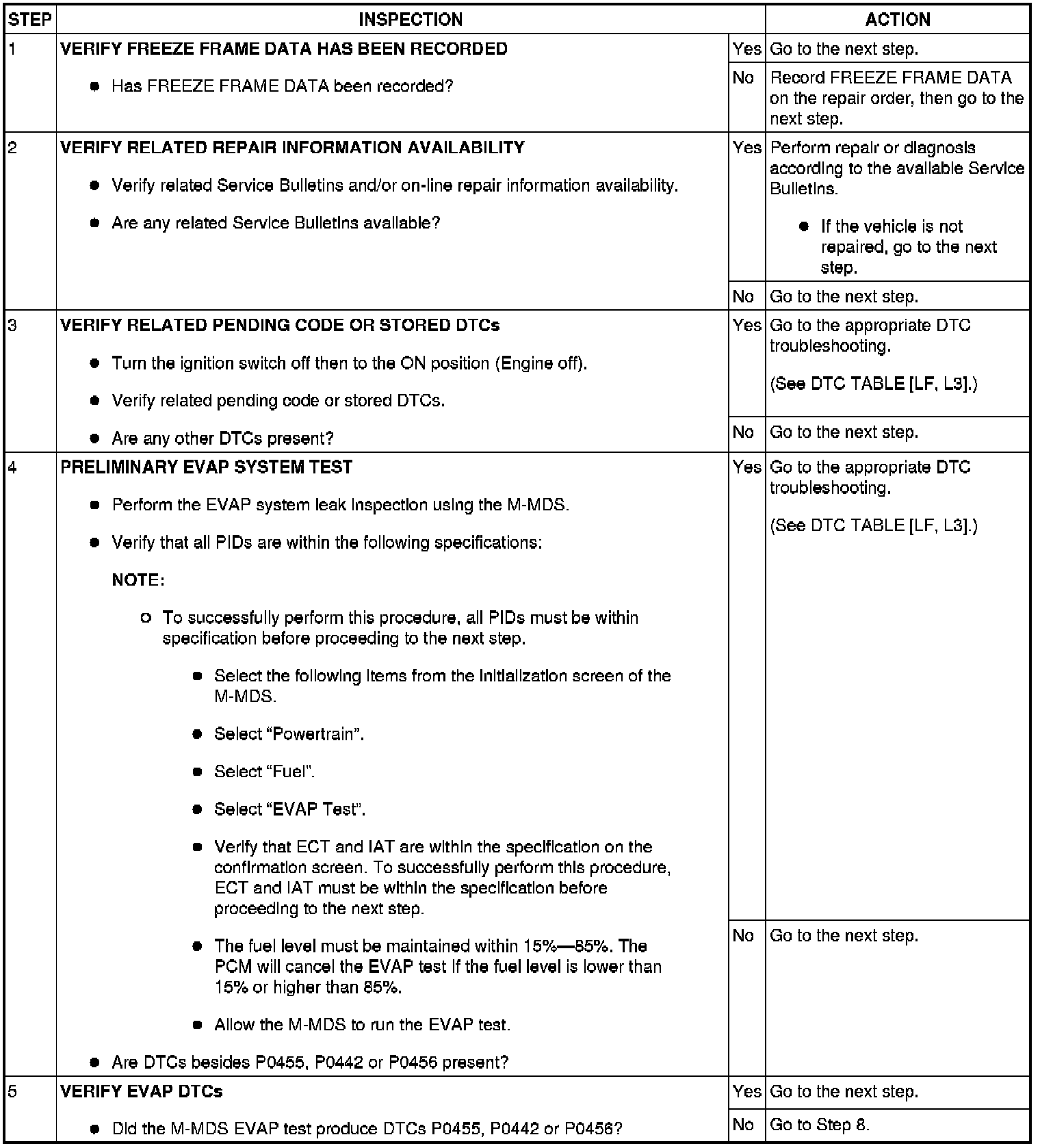

Step 1-Step 5:

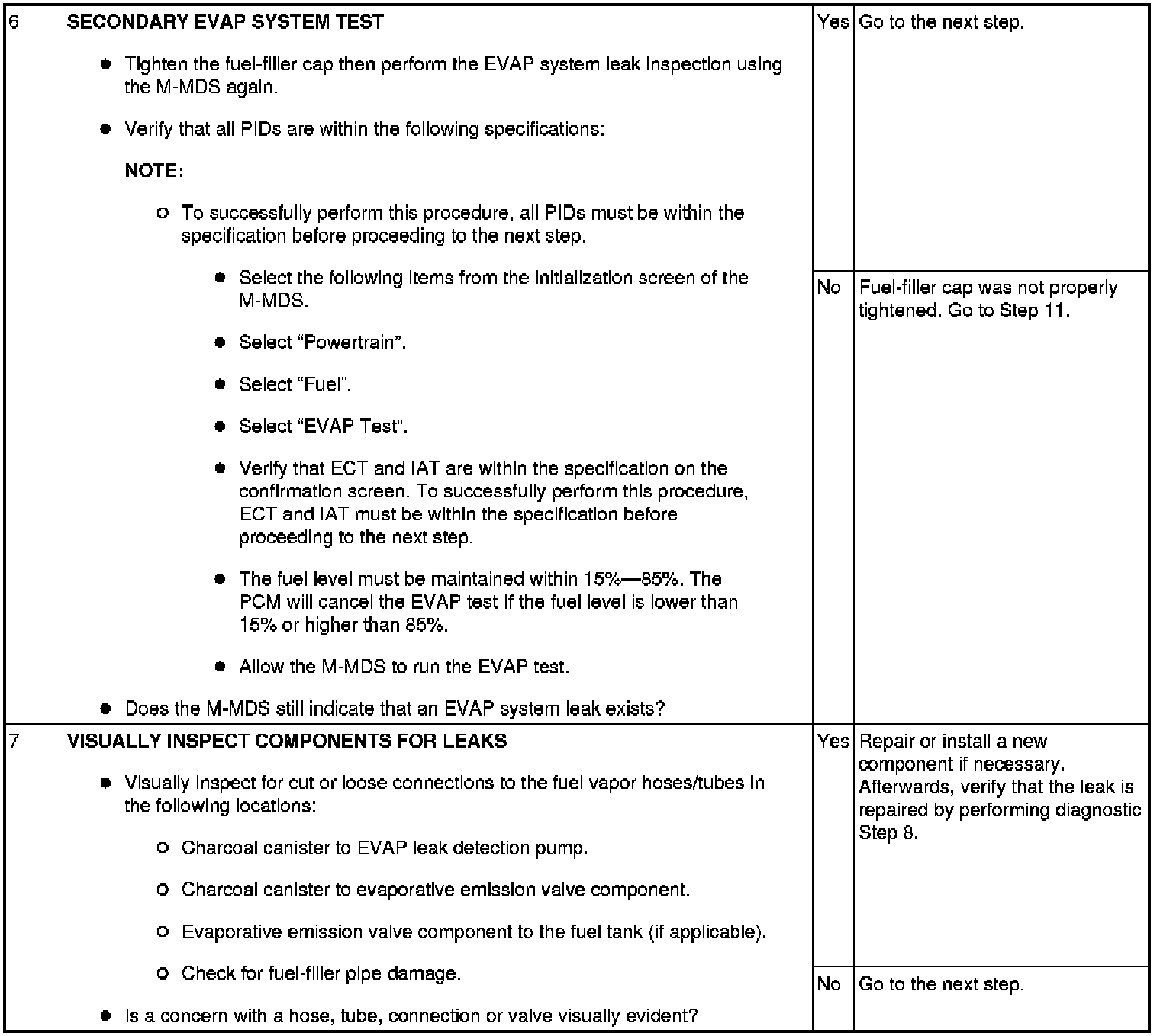

Step 6-Step 7:





Step 8:

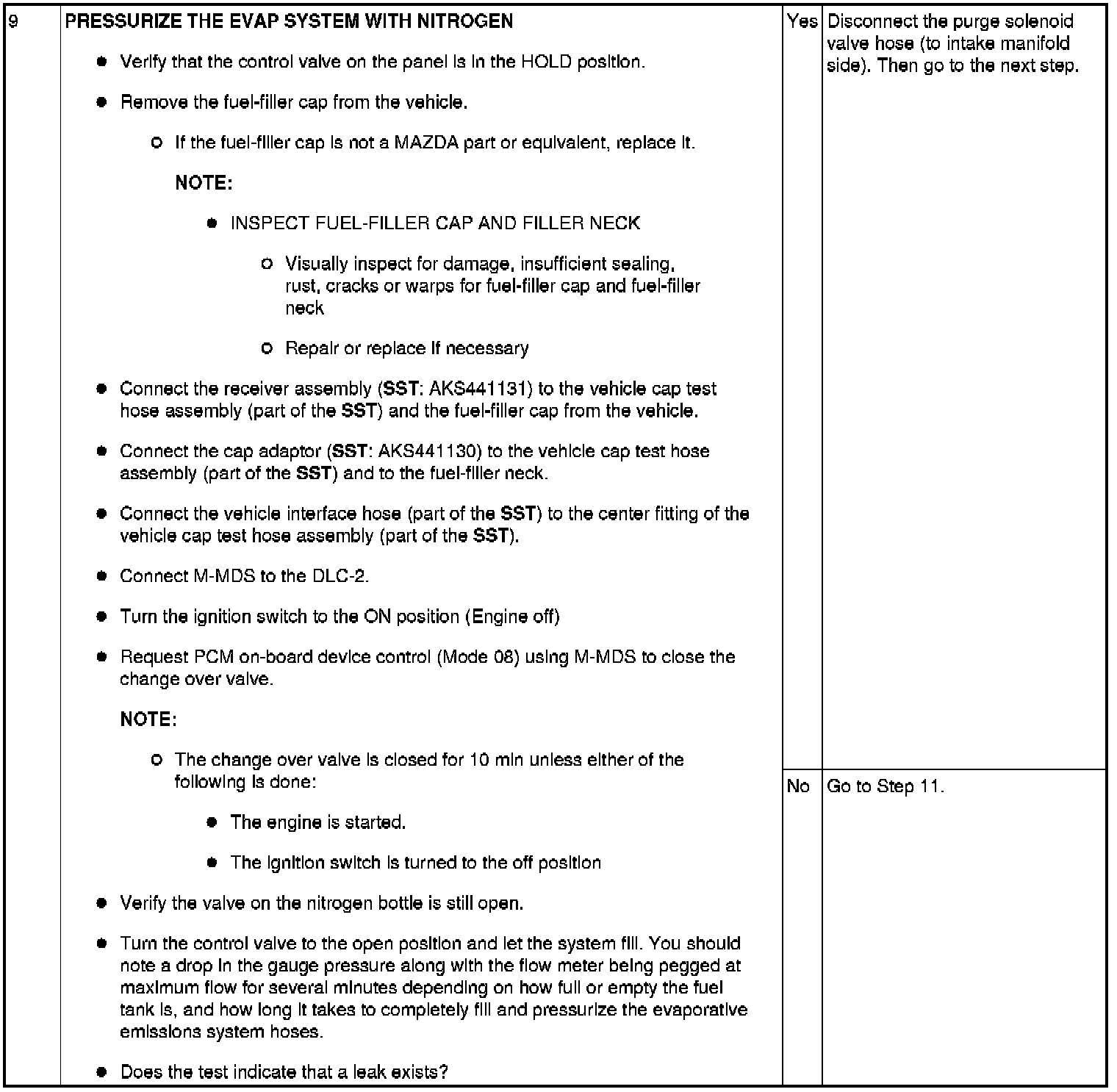

Step 9:

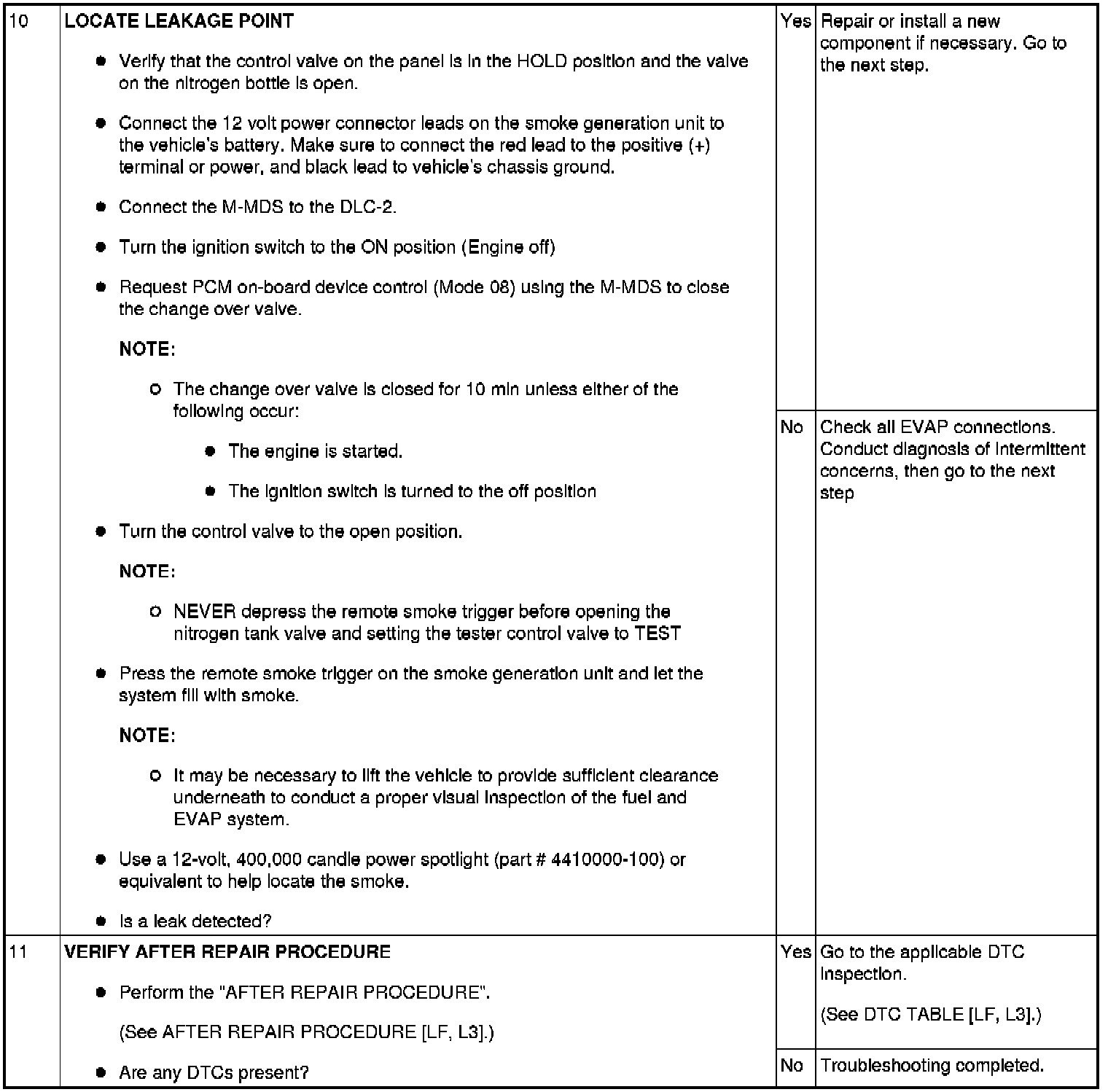

Step 10-Step 11:
