P0223

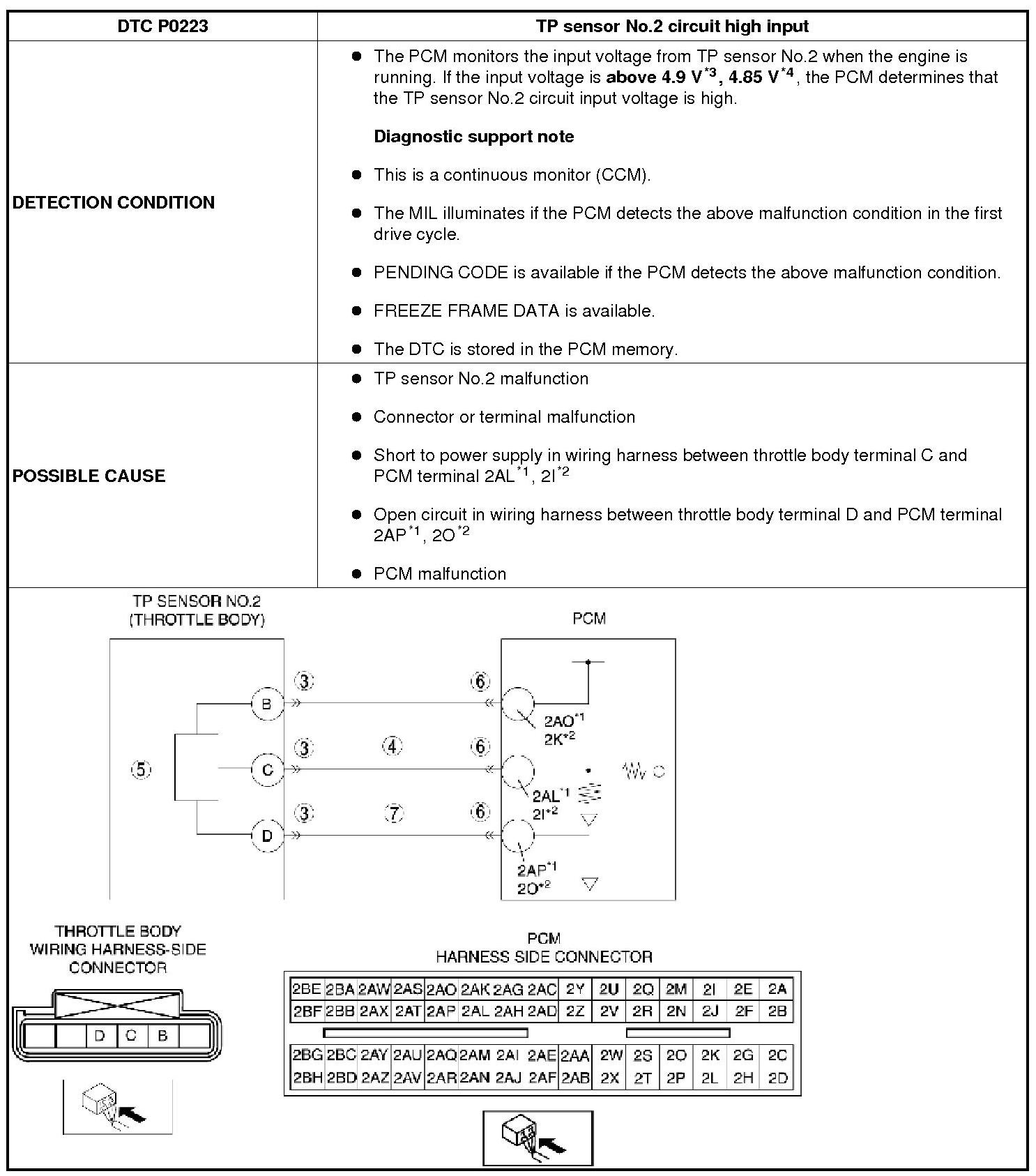

DTC P0223 [LF, L3]

Detection Condition/Possible Cause:





*1
LF MTX, L3 and California emission regulation applicable model with LF ATX
*2
Except for California emission regulation applicable model with LF ATX
*3
California emission regulation applicable model
*4
Except for California emission regulation applicable model

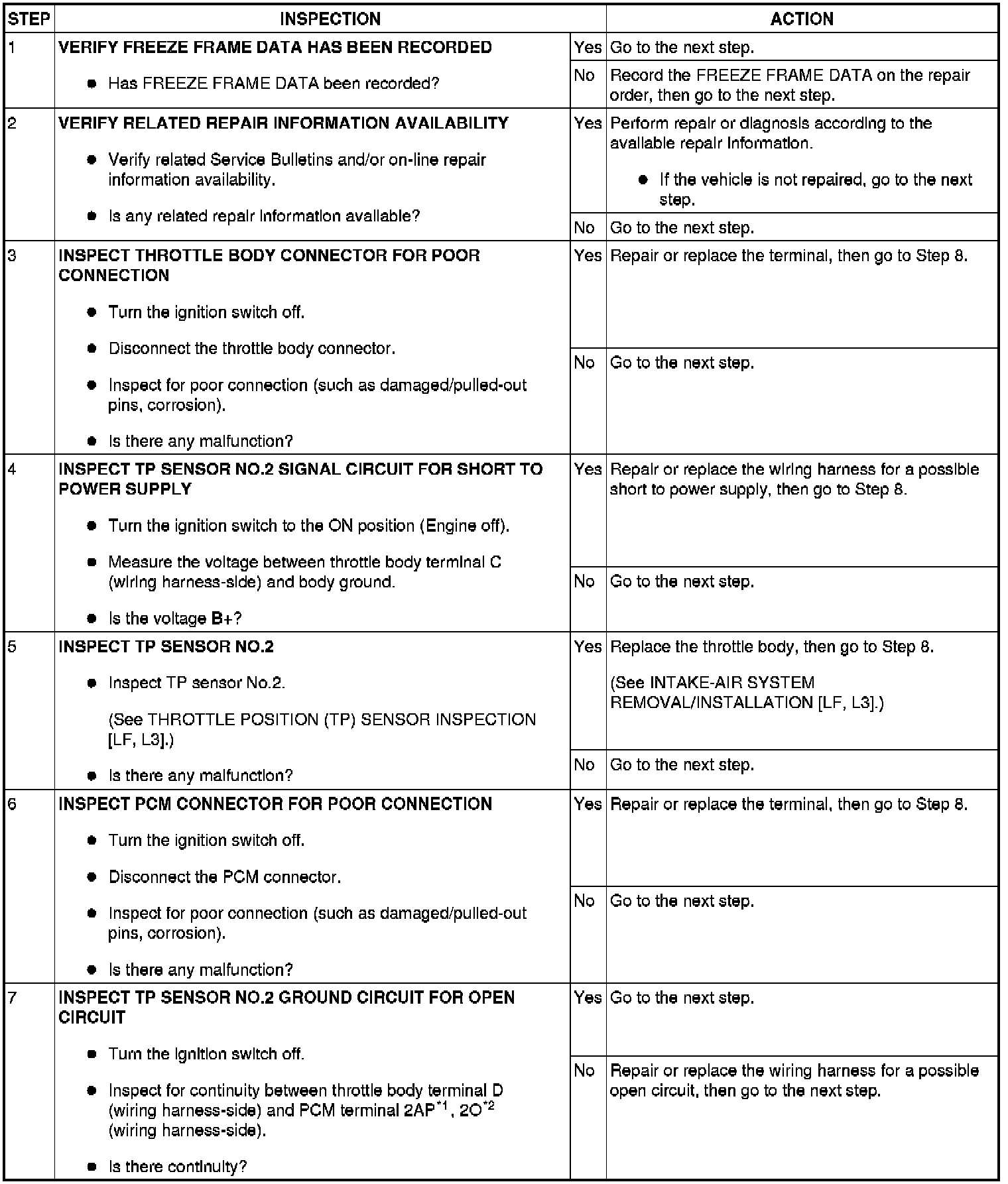

Diagnostic procedure

Step 1-Step 7:





Step 8-Step 9:






*1
LF MTX, L3 and California emission regulation applicable model with LF ATX
*2
Except for California emission regulation applicable model with LF ATX
