DTC P0171 [LF, L3]

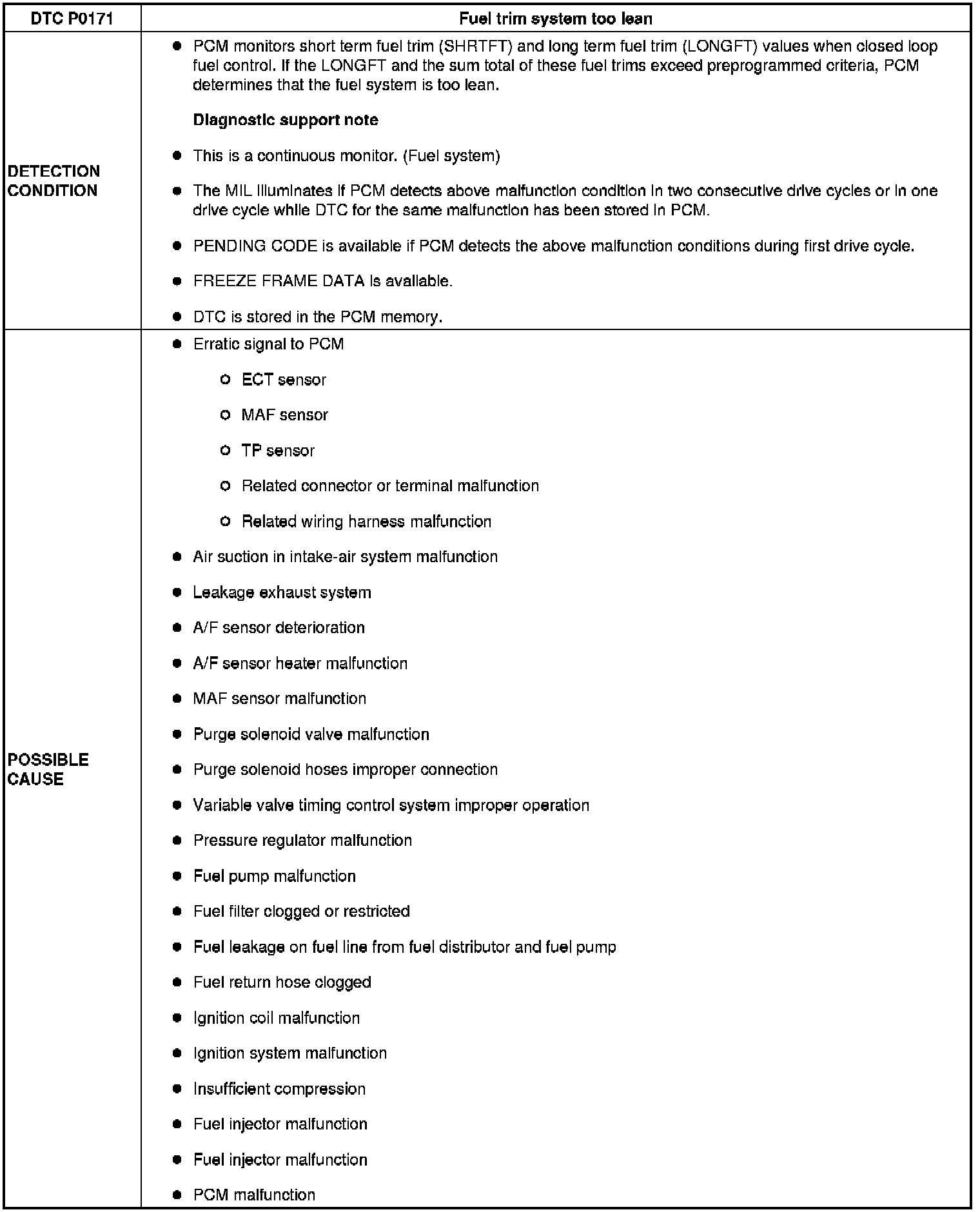

Detection Condition/Possible Cause:
Diagnostic procedure

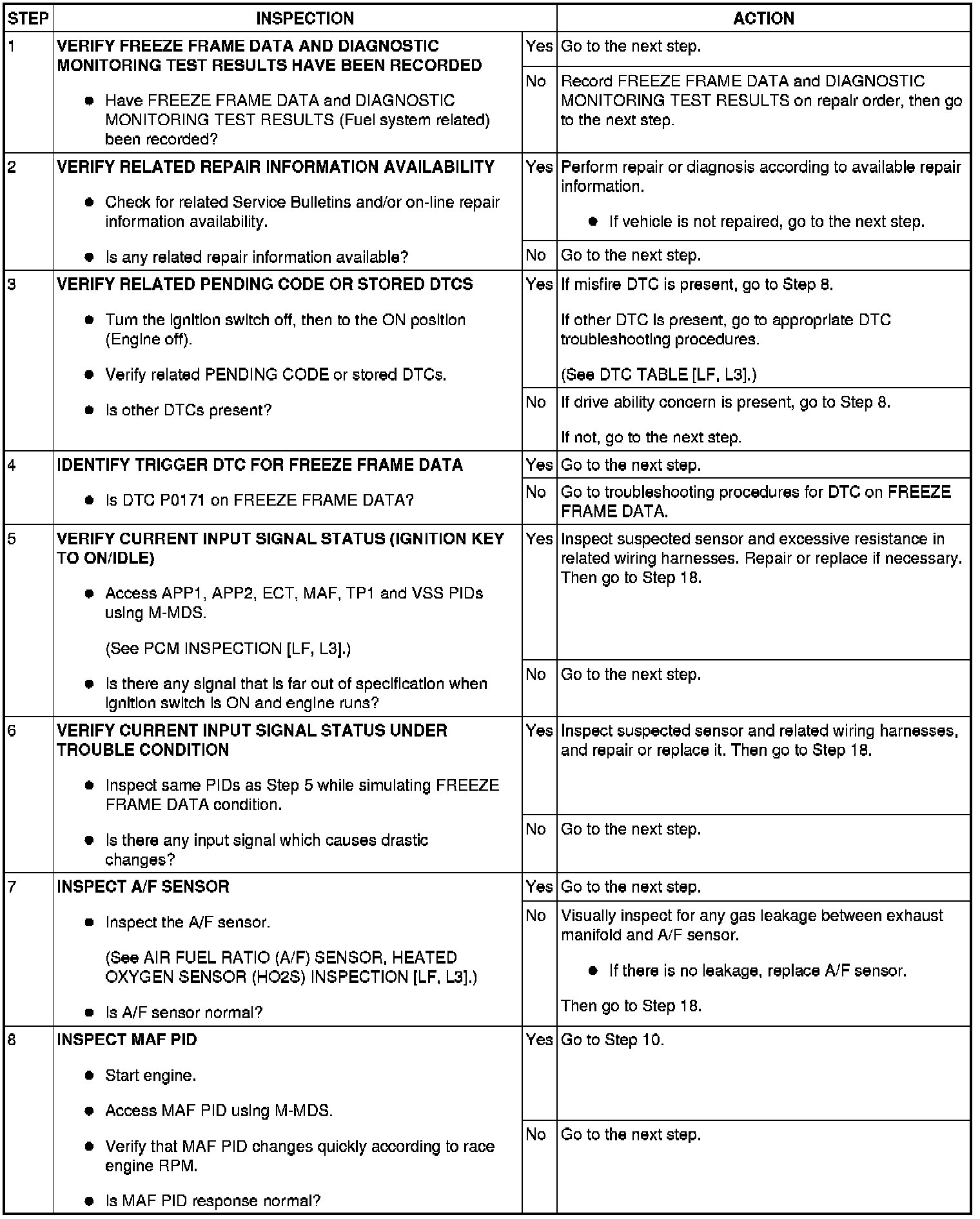

Step 1-Step 8:

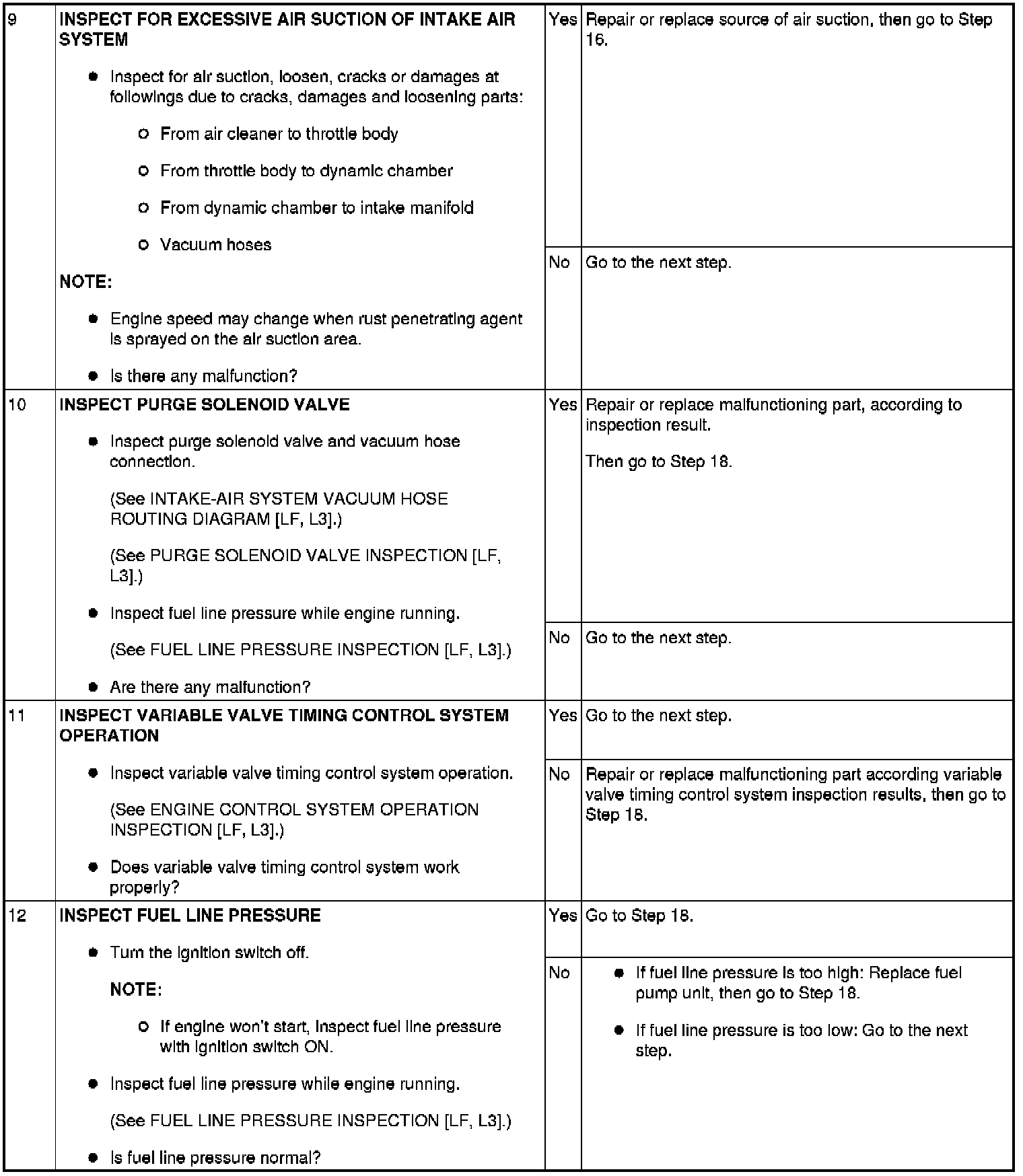

Step 9-Step 12:

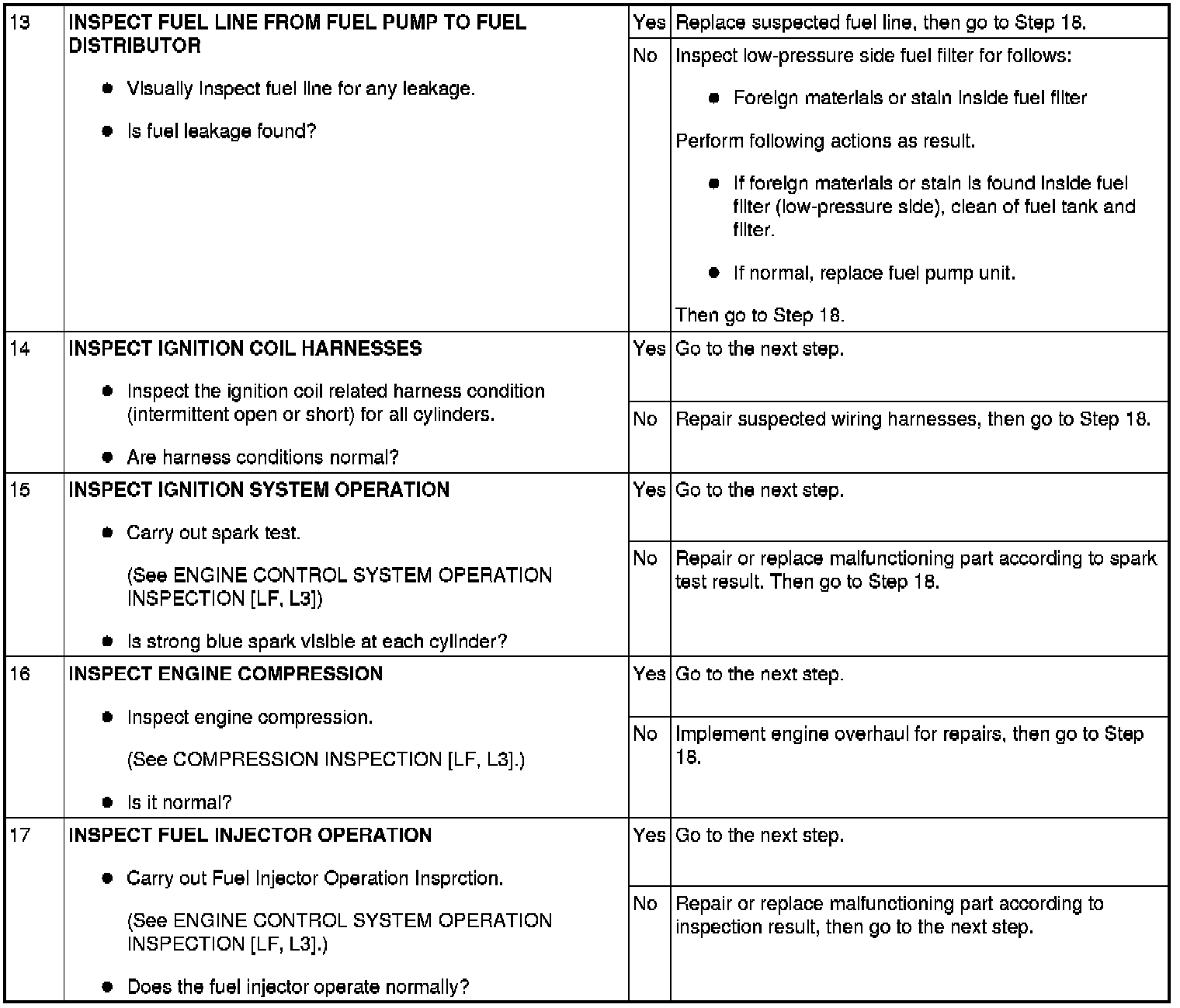

Step 13-Step 17:
Step 18-Step 19:
