DTC P0116 [LF, L3]
Detection Condition/Possible Cause:
Diagnostic procedure

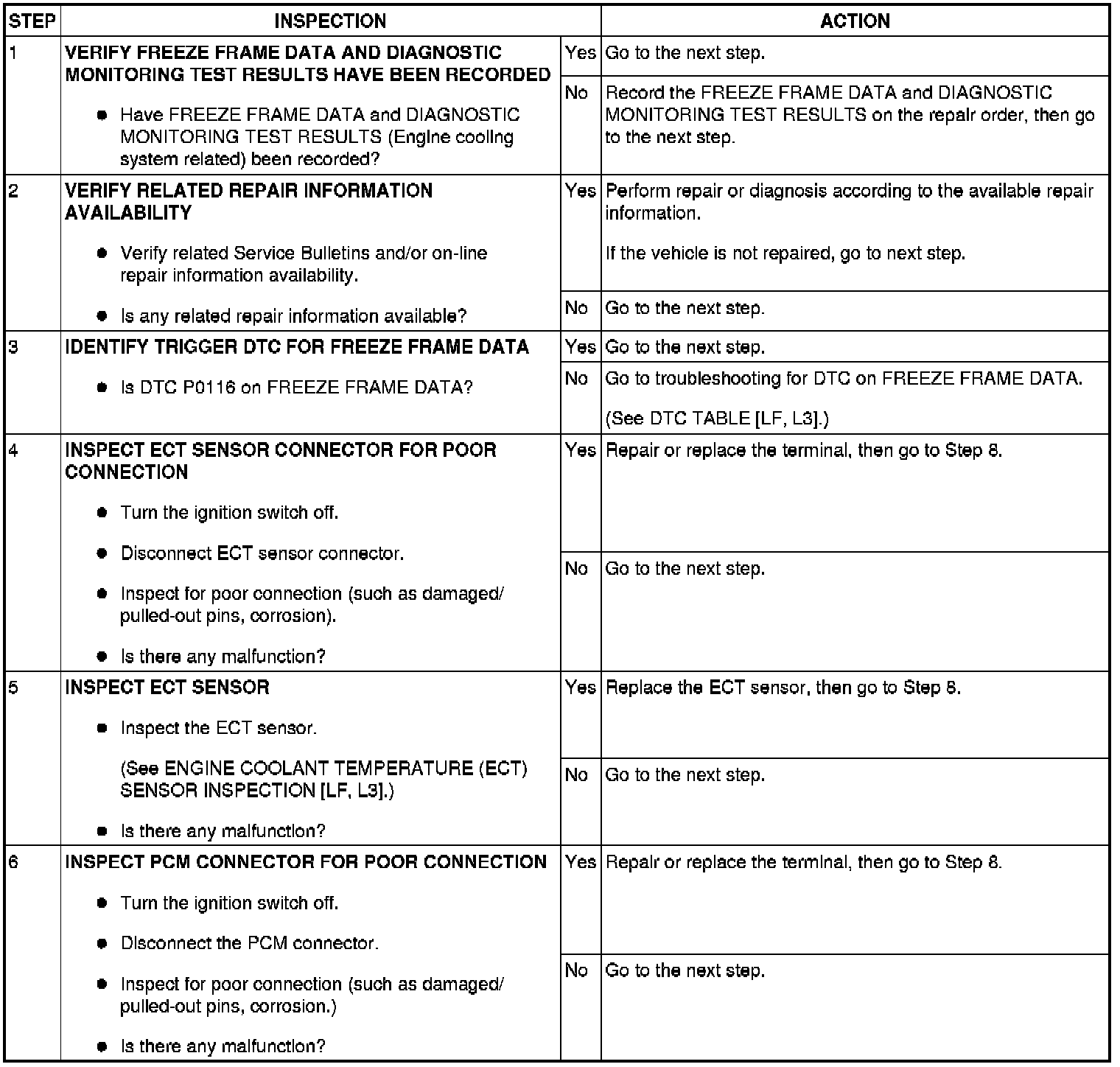

Step 1-Step 6:
Step 7-Step 9:
